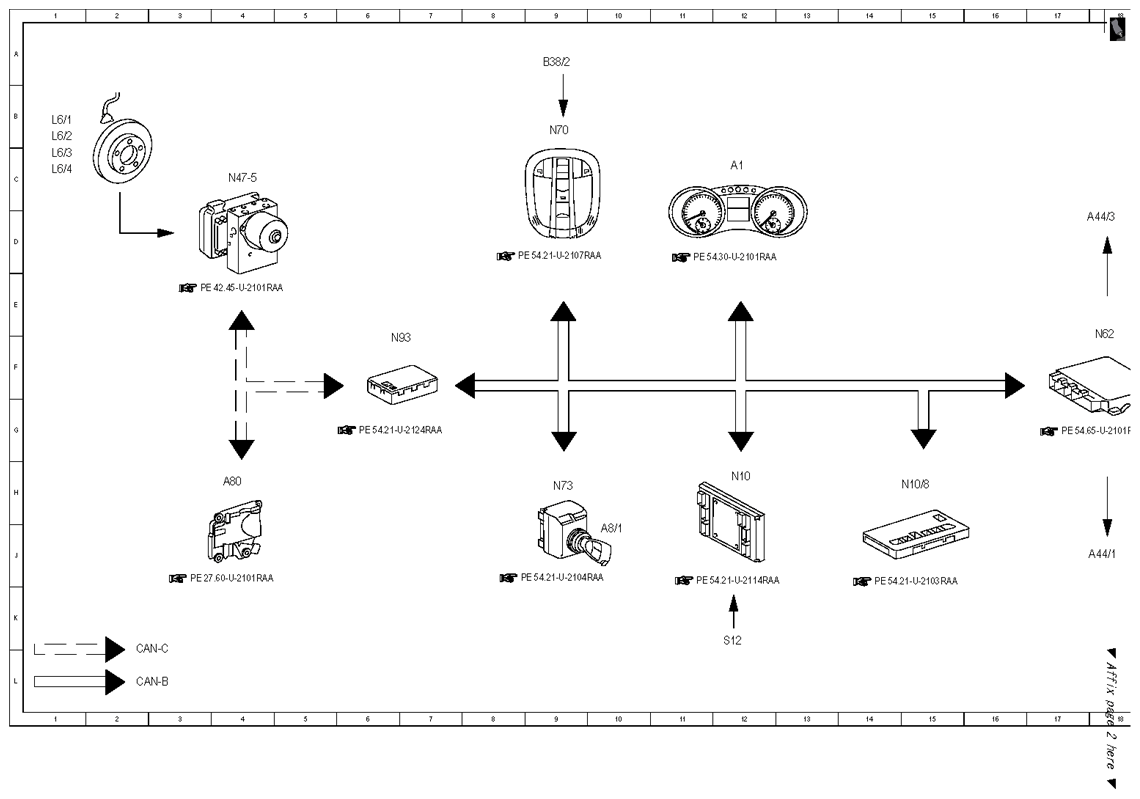

| A1 |
Instrument cluster |
12 C |
| A44/1 |
PTS warning indicator, driver side instrument panel |
17 J |
| A44/3 |
Rear PTS warning indicator dome lamp |
17 D |
| A8/1 |
Transmitter key |
10 J |
| A80 |
Intelligent servo module for DIRECT SELECT |
4 H |
| B38/2 |
Rain/light sensor |
9 A |

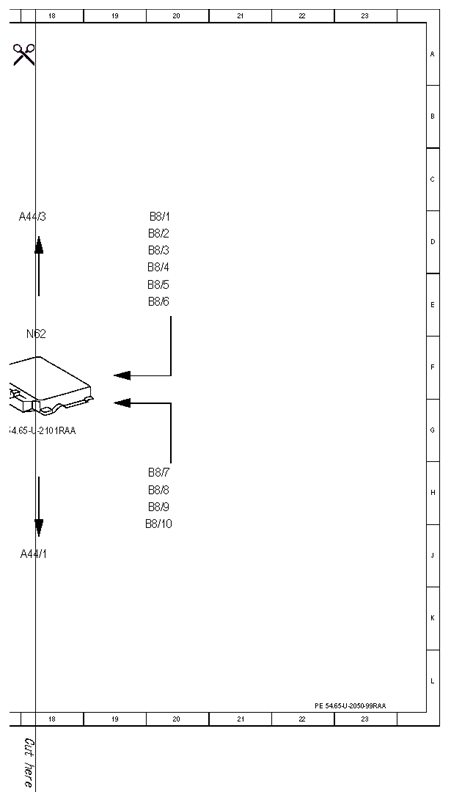

| B8/1 |
Outer left front PTS ultrasonic sensor |
20 D |
| B8/10 |
Outer left rear PTS ultrasonic sensor |
19 J |
| B8/2 |
Center left front PTS ultrasonic sensor |
19 D |
| B8/3 |
Inner left front PTS ultrasonic sensor |
19 D |
| B8/4 |
Inner right front PTS ultrasonic sensor |
19 E |
| B8/5 |
Center right front PTS ultrasonic sensor |
19 E |
| B8/6 |
Outer right front PTS ultrasonic sensor |
19 E |
| B8/7 |
Outer right rear PTS ultrasonic sensor |
19 H |
| B8/8 |
Inner right rear PTS ultrasonic sensor |
19 H |
| B8/9 |
Inner left rear PTS ultrasonic sensor |
19 H |
| L6/1 |
Left front RPM sensor |
1 B |
| L6/2 |
Right front RPM sensor |
1 B |
| L6/3 |
Left rear RPM sensor |
1 C |
| L6/4 |
right rear RPM sensor |
1 C |
| N10 |
Front SAM control unit |
12 H |
| N10/8 |
Rear SAM control unit |
14 H |
| N47-5 |
ESP control unit |
4 C |
| N62 |
PTS control unit |
18 F |
| N70 |
Overhead control panel control unit |
9 B |
| N73 |
EIS [EZS] control unit |
9 H |
| N93 |
Central gateway control unit |
6 F |
| S12 |
Parking brake indicator switch |
12 L |
