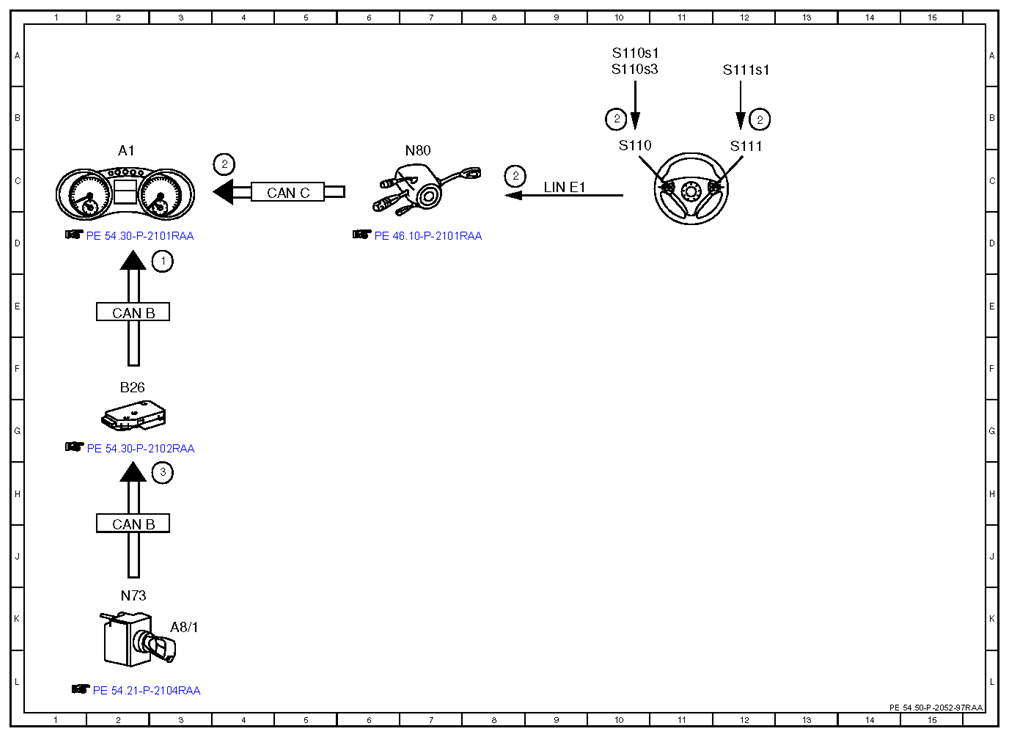

| 1 |
Electronic compass, signal |
3D |
| 2 |
Multifunction steering wheel button group, signal |
12B |
| 2 |
Multifunction steering wheel button group, signal |
4C |
| 2 |
Multifunction steering wheel button group, signal |
8C |
| 2 |
Multifunction steering wheel button group, signal |
10B |
| 3 |
Circuit 15R, status |
12B |
| A1 |
Instrument cluster |
2C |
| A8/1 |
Transmitter key |
3K |
| B26 |
Electronic compass |
2F |
| CAN B |
Interior CAN |
2H |
| CAN B |
Interior CAN |
2E |
| CAN C |
Engine compartment CAN |
5C |
| LIN E1 |
Steering LIN |
9C |
| N73 |
EIS [EZS] control unit |
2K |
| N80 |
Steering column module |
7C |
| S110 |
Left multifunction steering wheel button group |
10C |
| S110s1 |
Scroll forward/back button |
10A |
| S110s3 |
System selection button |
10A |
| S111 |
Right multifunction steering wheel button group |
12C |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
12A |
