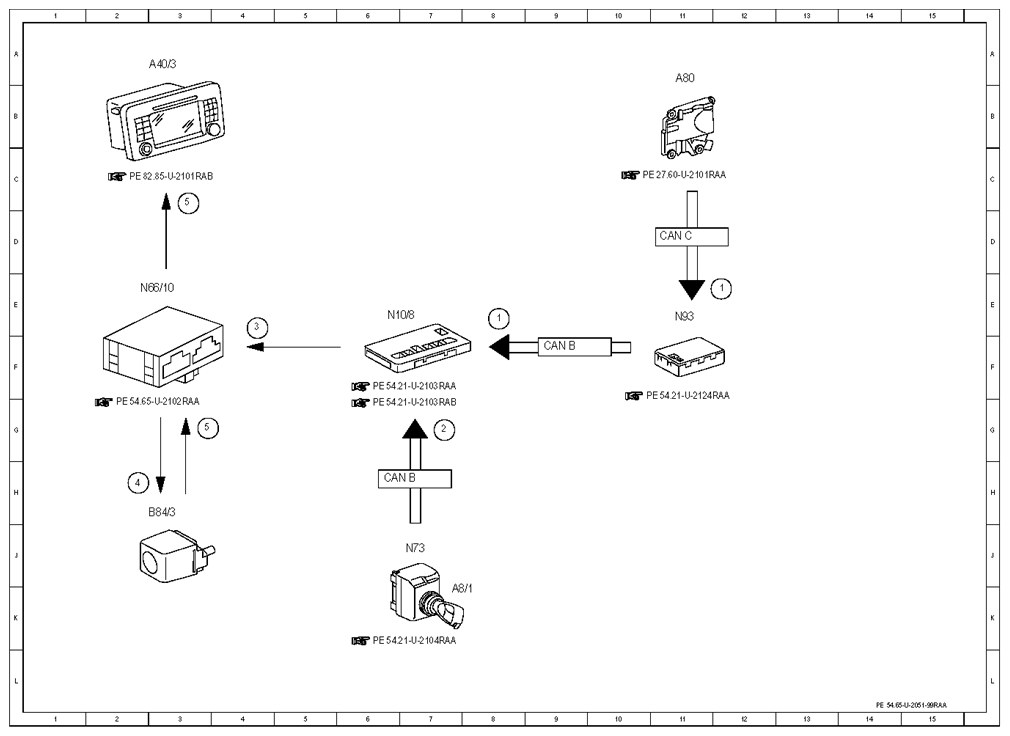

| 1 |
Reverse gear, status |
1 A |
| 1 |
Reverse gear, status |
1 A |
| 2 |
Circuit 15, status |
1 A |
| 3 |
Backup camera power supply module, actuation |
1 A |
| 4 |
Backup camera, actuation |
1 A |
| 5 |
Backup camera, signal |
1 A |
| 5 |
Backup camera, signal |
1 A |
| A40/3 |
COMAND operating, display and control unit |
1 A |
| A8/1 |
Transmitter key |
1 A |
| A80 |
Intelligent servo module for DIRECT SELECT |
1 A |
| B84/3 |
Backup camera |
1 A |
| CAN B |
Interior CAN |
1 A |
| CAN B |
Interior CAN |
1 A |
| CAN C |
Engine compartment CAN |
1 A |
| N10/8 |
Rear SAM control unit |
1 A |
| N66/10 |
Backup camera voltage supply module |
1 A |
| N73 |
EIS [EZS] control unit |
1 A |
| N93 |
Central gateway control unit |
1 A |
