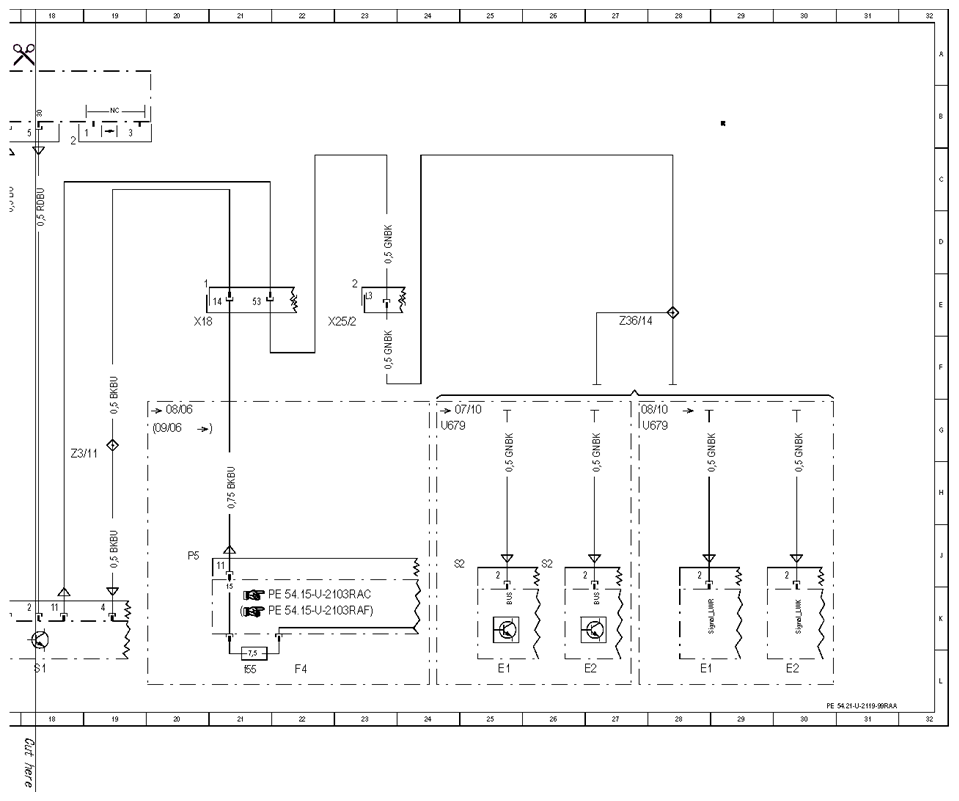

| E1 |
Left front lamp unit |
25 L |
| E1 |
Left front lamp unit |
28 L |
| E2 |
Right front lamp unit |
26 L |
| E2 |
Right front lamp unit |
30 L |
| F3 |
Cockpit fuse box |
11 L |
| F3f13 |
Fuse 13 |
10 L |
| F4 |
Load compartment fuse and relay box |
22 L |
| F4f55 |
Fuse 55 |
21 L |

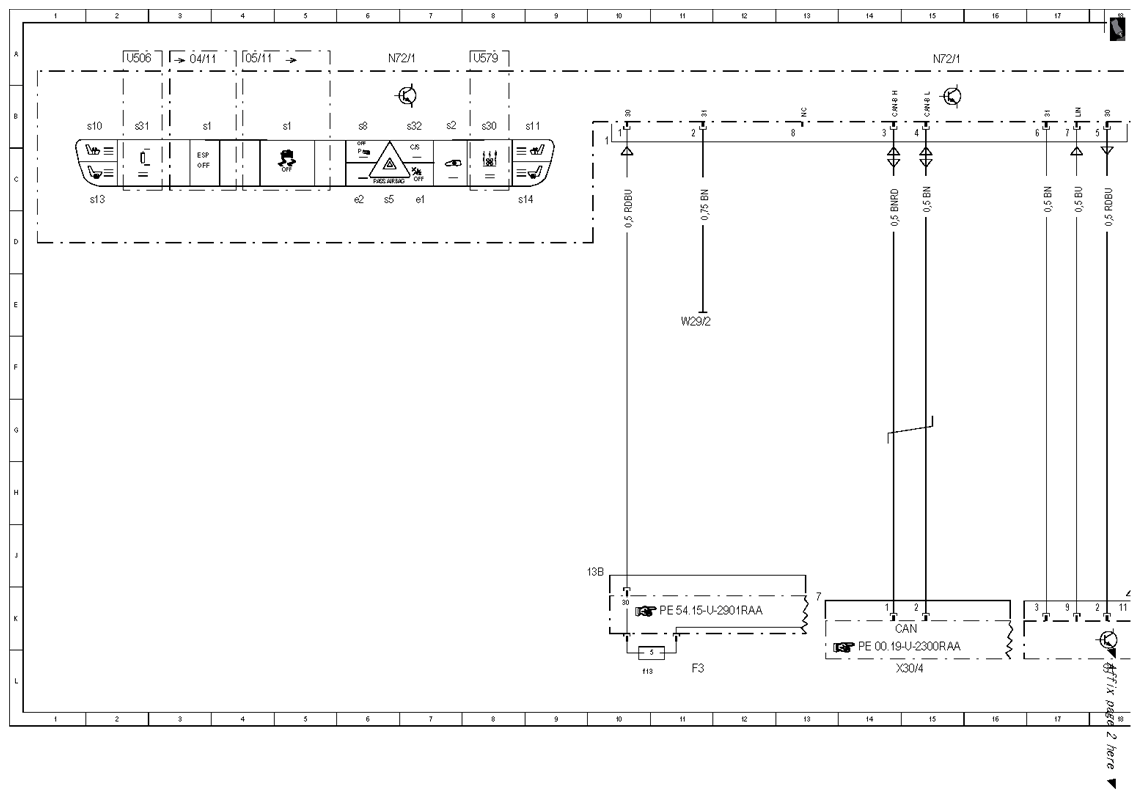

| N72/1 |
Upper control panel control unit |
6 A |
| N72/1 |
Upper control panel control unit |
15 A |
| N72/1e1 |
Automatic child seat recognition airbag OFF indicator lamp |
6 C |
| N72/1e2 |
ATA [EDW] function indicator |
5 C |
| N72/1s1 |
ESP OFF switch |
3 B |
| N72/1s1 |
ESP OFF switch |
4 B |
| N72/1s10 |
Left front HS [SIH] switch |
1 B |
| N72/1s11 |
Right front HS [SIH] switch |
8 B |
| N72/1s13 |
Left front seat ventilation switch |
2 C |
| N72/1s14 |
Right front seat ventilation switch |
8 C |
| N72/1s2 |
Level adjustment switch |
7 B |
| N72/1s30 |
STH switch |
8 B |
| N72/1s31 |
Comfort/Sport switch (ADS) |
2 B |
| N72/1s32 |
Transmission mode switch |
6 B |
| N72/1s5 |
Hazard warning system switch |
6 C |
| N72/1s8 |
PTS OFF switch |
6 B |
| S1 |
Rotary light switch |
18 L |
| U506 |
Valid for ADS |
2 A |
| U579 |
Valid for stationary heater |
8 A |
| U679 |
Valid for version without xenon headlamps |
24 G |
| U679 |
Valid for version without xenon headlamps |
27 G |
| W29/2 |
Ground (right A-pillar) |
11 E |
| X18 |
Interior/cockpit connector |
20 E |
| X25/2 |
Engine compartment/interior compartment connector |
22 E |
| X30/4 |
Right voltage distributor (CAN) connector |
14 L |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
18 H |
| Z36/14 |
Static headlamp range adjustment signal connector sleeve |
27 E |
