| A67 |
Inside rearview mirror unit |
7 L |
| A67b1 |
Hands-free system microphone group |
6 L |
| A67e1 |
Left reading lamp |
3 L |
| A67e2 |
Right reading lamp |
4 L |
| A67e3 |
Ambient lamp |
5 L |
| A67h3 |
Automatic dimming mirror |
6 L |
| B38/2 |
Rain/light sensor |
1 L |
| E14/1 |
Left sun visor with illuminated mirror |
11 L |
| E14/2 |
Right sun visor with illuminated mirror |
14 L |
| E15/12 |
Left dome lamp, 2nd seat row |
15 L |
| E15/12e1 |
2nd seat row left reading lamp |
15 K |
| E15/13 |
Right dome lamp, 2nd seat row |
16 L |
| E15/13e1 |
2nd seat row right reading lamp |
17 K |
| E15/3 |
Left dome lamp, 3rd seat row |
21 L |
| E15/3e1 |
3rd seat row left reading lamp |
22 K |
| E15/3e2 |
3rd seat row right reading lamp |
22 K |
| E15/3e3 |
Left dome lamp, 3rd seat row |
21 K |
| E15/4 |
Central load compartment dome lamp |
18 L |

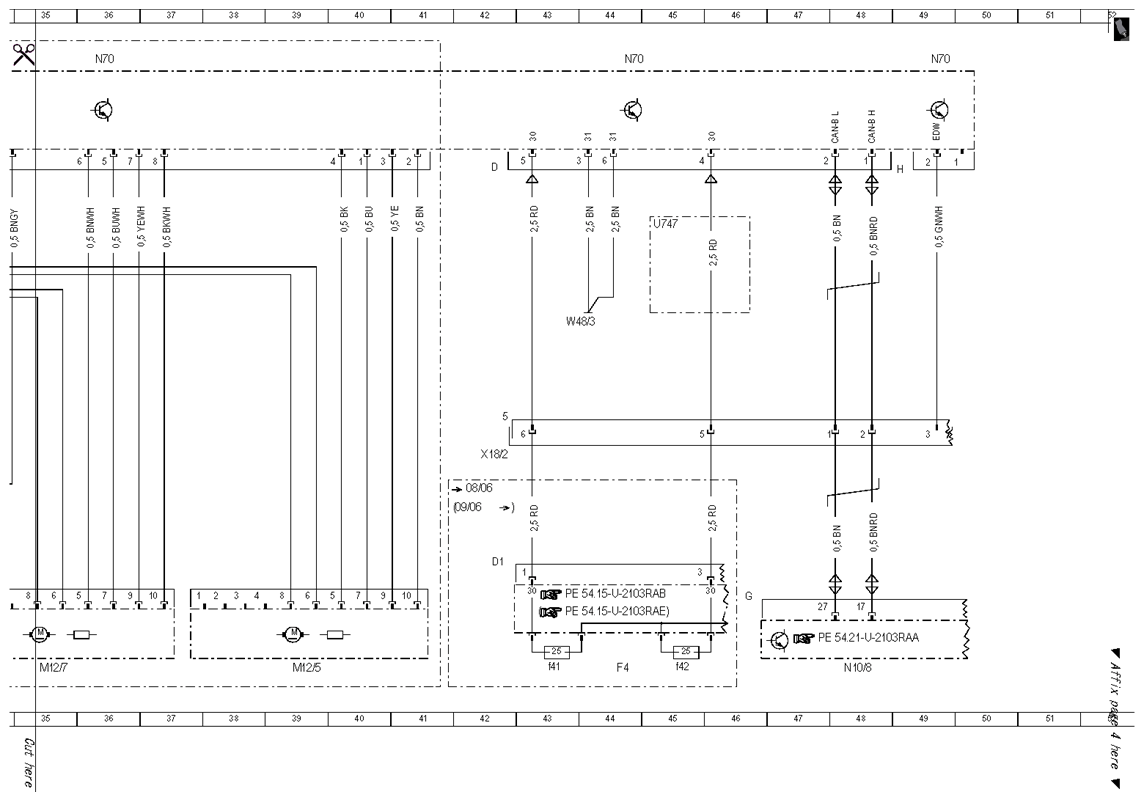

| F4 |
Load compartment fuse and relay box |
44 L |
| F4f41 |
Fuse 41 |
43 L |
| F4f42 |
Fuse 42 |
45 L |
| M12 |
Tilting/sliding roof (SR [SHD]) drive unit |
25 L |
| M12/5 |
Roller sun blind drive unit |
39 L |
| M12/6 |
Drive unit 1, panoramic sliding roof |
30 L |
| M12/7 |
Drive unit 2, panoramic sliding roof |
35 L |
| M12b1 |
Hall sensor 1, SR |
24 L |
| M12b2 |
Hall sensor 2, SR |
25 L |
| M12m1 |
SR [SHD] motor |
26 L |
| N10/8 |
Rear SAM control unit |
48 L |

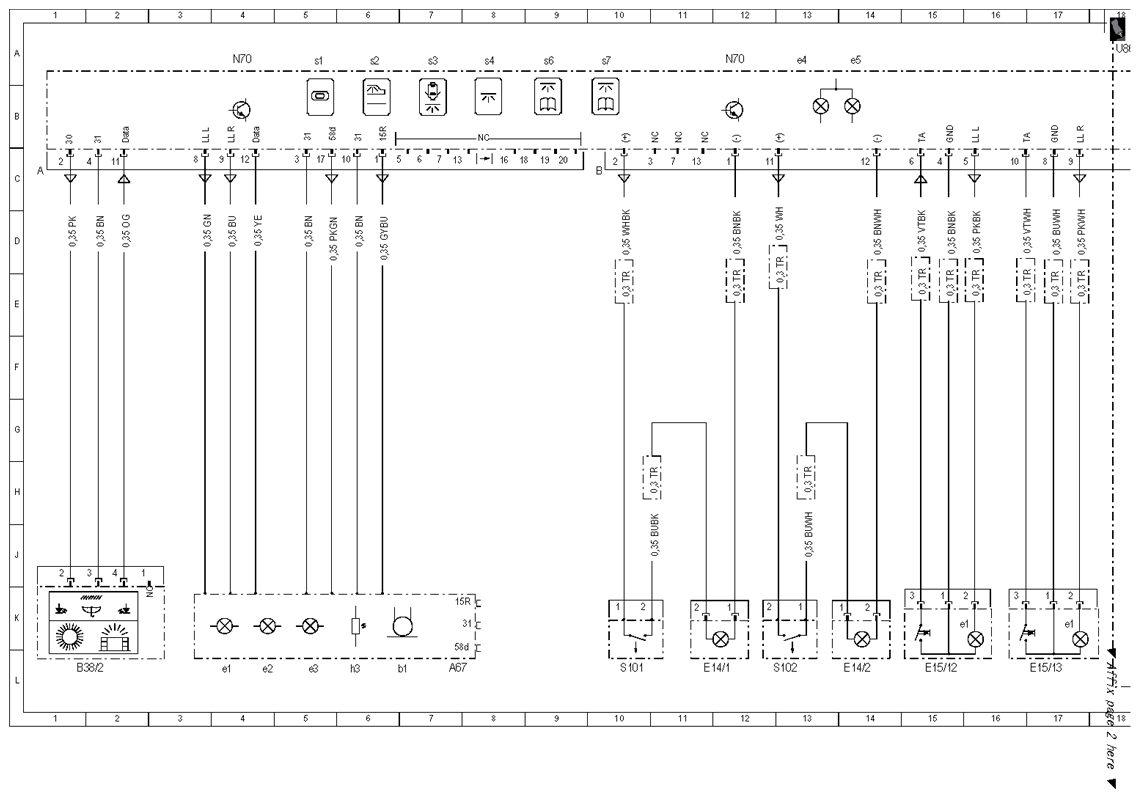

| N70 |
Overhead control panel control unit |
4 A |
| N70 |
Overhead control panel control unit |
12 A |
| N70 |
Overhead control panel control unit |
28 A |
| N70 |
Overhead control panel control unit |
36 A |
| N70 |
Overhead control panel control unit |
44 A |
| N70 |
Overhead control panel control unit |
49 A |
| N70e4 |
Left interior lamp, 1st seat row |
13 A |
| N70e5 |
Right interior lamp, 1st seat row |
13 A |
| N70s1 |
Roof switch |
5 A |
| N70s2 |
Rear dome lamp switch |
6 A |
| N70s3 |
Door contact ON and OFF switch |
7 A |
| N70s4 |
Interior lamp switch, 1st seat row |
8 A |
| N70s6 |
Left reading lamp switch, 1st seat row |
9 A |
| N70s7 |
Right reading lamp switch, 1st seat row |
10 A |
| S101 |
Left front vanity mirror illumination switch |
10 L |
| S102 |
Right front vanity mirror illumination switch |
12 L |

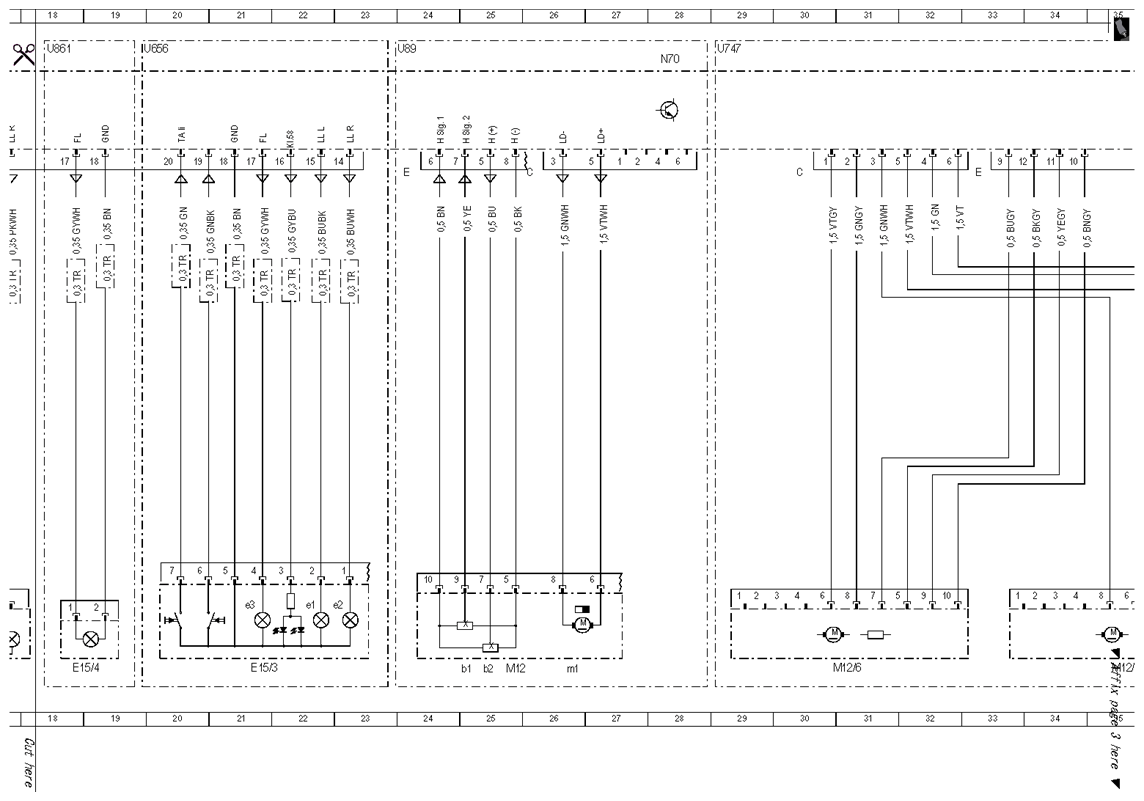

| U656 |
Valid for interior light package |
19 A |
| U747 |
Valid for panoramic sliding roof |
29 A |
| U747 |
Valid for panoramic sliding roof |
45 D |
| U861 |
Valid for versions without interior light package |
18 A |
| U89 |
Valid for tilting/sliding roof (SR [SDH]) |
23 A |
| W48/3 |
Ground (headliner supply) |
43 E |
| X18/2 |
Interior/roof connector |
42 H |
