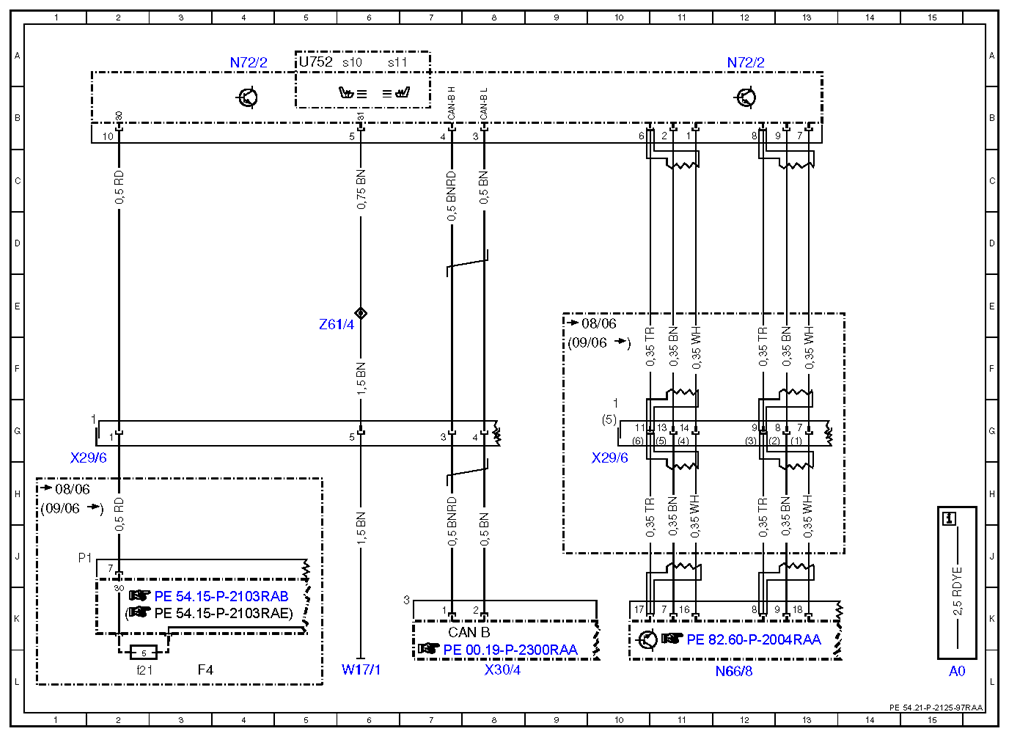

| A0 |
Color code key |
15L |
| CAN B |
Interior CAN |
7K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f21 |
Fuse 21 |
2L |
| N66/8 |
Rear audio control unit |
12L |
| N72/2 |
RCP [HBF] control unit |
4A |
| N72/2 |
RCP [HBF] control unit |
12A |
| N72/2s10 |
Left HS [SIH] switch, 2nd seat row |
6A |
| N72/2s11 |
Right HS [SIH] switch, 2nd seat row |
6A |
| U752 |
Valid for rear seat heater |
5A |
| W17/1 |
Ground (left rear seat) |
6L |
| X29/6 |
Center console intermediate connector |
2H |
| X29/6 |
Center console intermediate connector |
10H |
| X30/4 |
Right voltage distributor (CAN) connector |
8L |
| Z61/4 |
Front center console circuit 31 connector sleeve |
6E |
