| A0 |
Color code key |
56L |
| A67 |
Inside rearview mirror unit |
4L |
| A67b1 |
Hands-free system microphone group |
6L |
| A67e1 |
Left reading lamp |
3L |
| A67e2 |
Right reading lamp |
4L |
| A67e3 |
Ambient lamp |
5L |
| A67e4 |
Garage door opener indicator lamp |
9L |
| A67h3 |
Automatic dimming mirror |
5L |
| A67n2 |
Garage door opener transmitter unit |
8L |
| A67s1 |
Garage door opener button 1 |
8L |
| A67s2 |
Garage door opener button 2 |
9L |
| A67s3 |
Garage door opener button 3 |
9L |

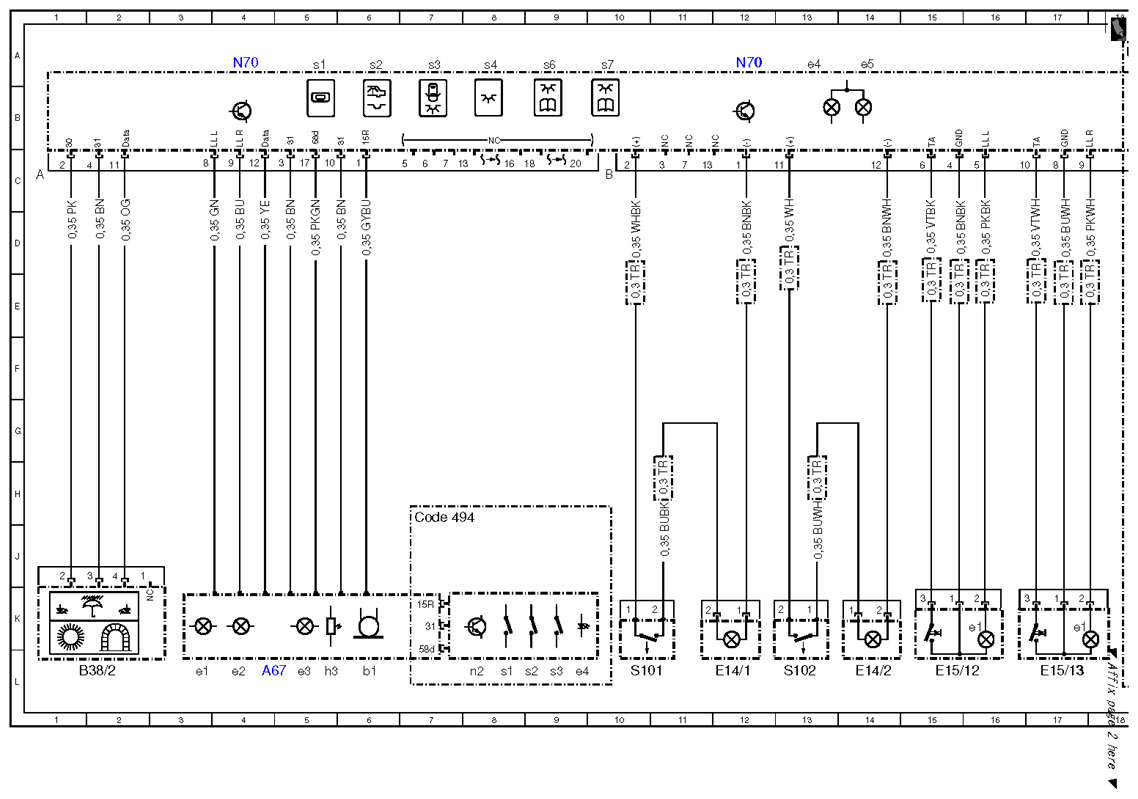

| B38/2 |
Rain/light sensor |
2L |

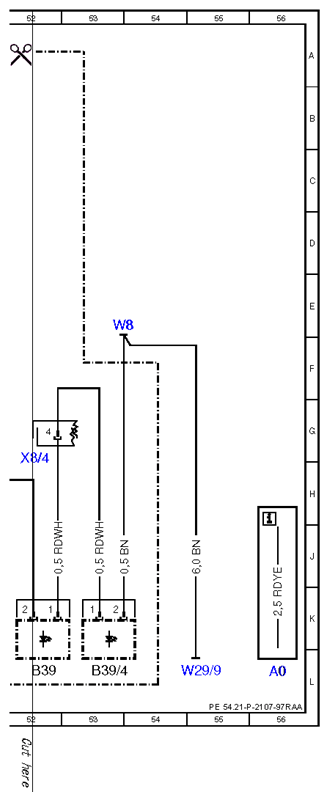

| B39 |
Left rear window glass breakage sensor |
52L |
| B39/1 |
Right rear window glass breakage sensor |
51L |
| B39/4 |
Rear window glass breakage sensor |
53L |
| Code 413 |
Panoramic glass sunroof with top sliding sunroof |
45E |
| Code 413 |
Panoramic glass sunroof with top sliding sunroof |
29A |
| Code 414 |
Electric glass tilting/sliding roof |
24A |
| Code 494 |
USA version |
7H |
| Code 876 |
Interior lights package |
20A |
| E14/1 |
Left sun visor with illuminated mirror |
12L |
| E14/2 |
Right sun visor with illuminated mirror |
14L |

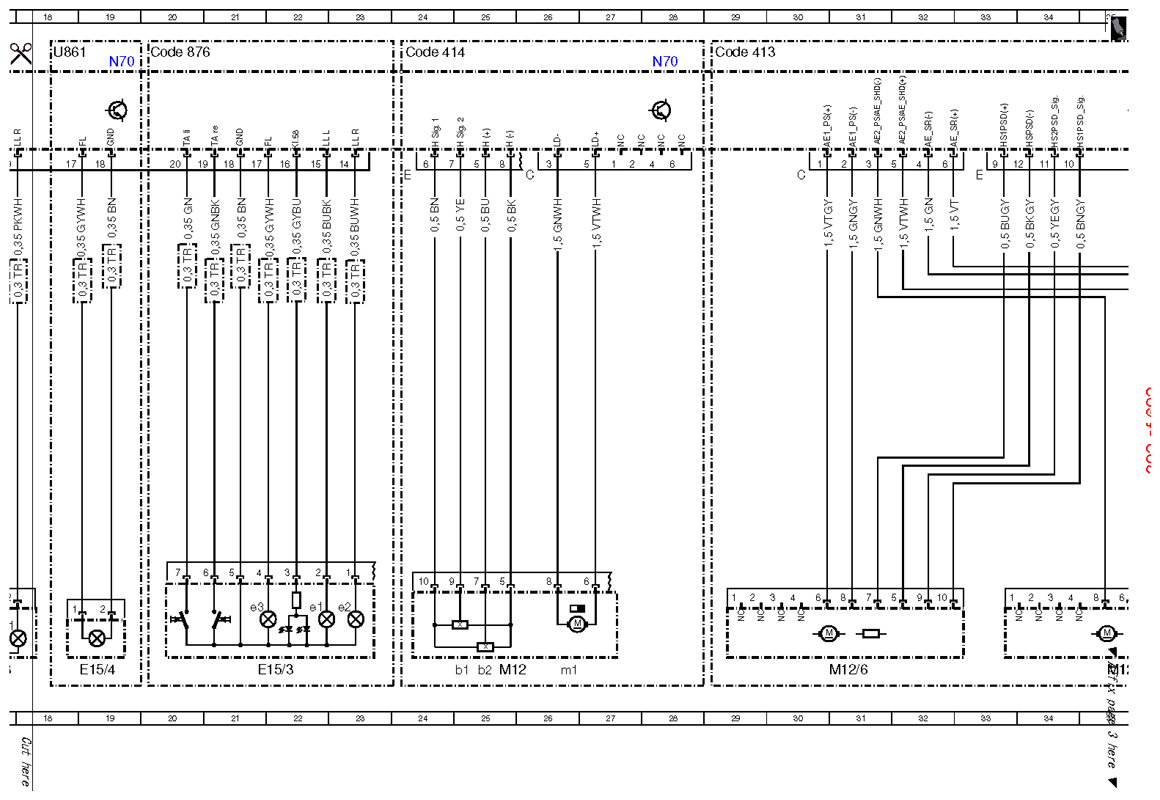

| E15/12 |
Left dome lamp, 2nd seat row |
15L |
| E15/12e1 |
2nd seat row left reading lamp |
16K |
| E15/13 |
Right dome lamp, 2nd seat row |
17L |
| E15/13e1 |
2nd seat row right reading lamp |
17K |
| E15/3 |
Left dome lamp, 3rd seat row |
22L |
| E15/3e1 |
3rd seat row left reading lamp |
22K |
| E15/3e2 |
3rd seat row right reading lamp |
23K |
| E15/3e3 |
Left dome lamp, 3rd seat row |
21K |
| E15/4 |
Central load compartment dome lamp |
19L |

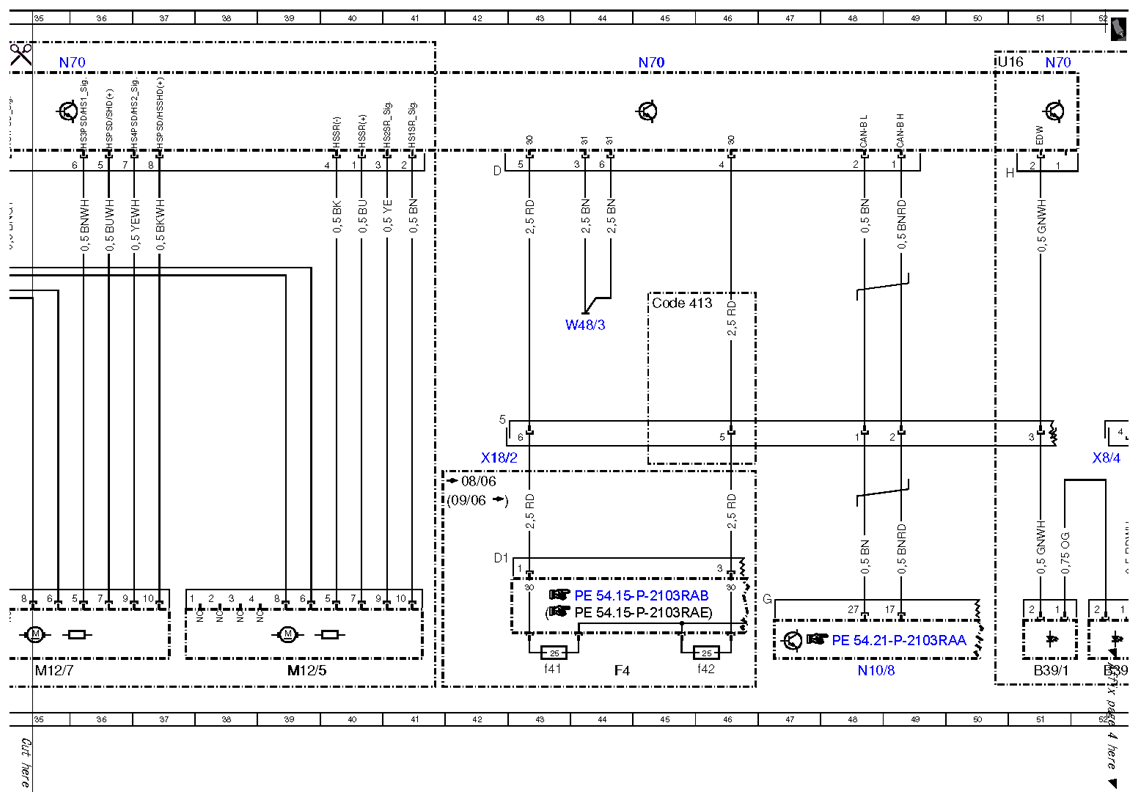

| F4 |
Load compartment fuse and relay box |
44L |
| F4f41 |
Fuse 41 |
43L |
| F4f42 |
Fuse 42 |
46L |
| M12 |
Tilting/sliding roof (SR [SHD]) drive unit |
25L |
| M12/5 |
Roller sun blind drive unit |
39L |
| M12/6 |
Drive unit 1, panoramic sliding roof |
31L |
| M12/7 |
Drive unit 2, panoramic sliding roof |
35L |
| M12b1 |
Hall sensor 1, SR |
25L |
| M12b2 |
Hall sensor 2, SR |
25L |
| M12m1 |
SR [SHD] motor |
26L |
| N10/8 |
Rear SAM control unit |
48L |
| N70 |
Overhead control panel control unit |
4A |
| N70 |
Overhead control panel control unit |
12A |
| N70 |
Overhead control panel control unit |
19A |
| N70 |
Overhead control panel control unit |
28A |
| N70 |
Overhead control panel control unit |
35A |
| N70 |
Overhead control panel control unit |
45A |
| N70 |
Overhead control panel control unit |
51A |
| N70e4 |
Left interior lamp, 1st seat row |
13A |
| N70e5 |
Right interior lamp, 1st seat row |
14A |
| N70s1 |
Roof switch |
5A |
| N70s2 |
Rear dome lamp switch |
6A |
| N70s3 |
Door contact ON and OFF switch |
7A |
| N70s4 |
Interior lamp switch, 1st seat row |
8A |
| N70s6 |
Left reading lamp switch, 1st seat row |
9A |
| N70s7 |
Right reading lamp switch, 1st seat row |
10A |
| S101 |
Left front vanity mirror illumination switch |
10L |
| S102 |
Right front vanity mirror illumination switch |
13L |
| U16 |
Valid for ATA [EDW] with TS [AS] and IMS [IRS] |
50A |
| U861 |
Valid for versions without interior light package |
18A |
| W29/9 |
Ground (right D-pillar) |
55L |
| W48/3 |
Ground (headliner supply) |
44E |
| W8 |
Ground (rear-end door) |
53E |
| X18/2 |
Interior/roof connector |
42H |
| X8/4 |
Rear-end door separating point |
52H |
