| F4 |
Load compartment fuse and relay box |
7 L |
| F4f56 |
Fuse 56 |
7 L |
| F4f58 |
Fuse 58 |
2 L |
| N3/10 |
ME-SFI [ME] control unit |
16 L |

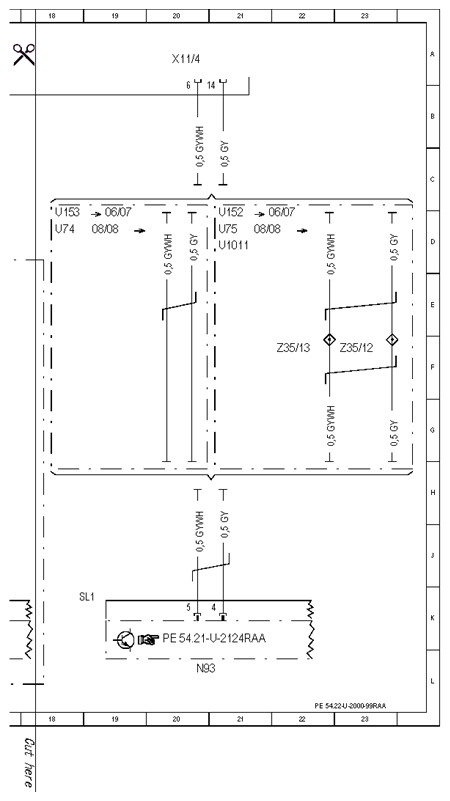

| N93 |
Central gateway control unit |
20 L |
| U1011 |
Valid for engine 642.872 |
21 D |
| U151 |
Valid for engine 113 |
14 E |
| U152 |
Valid for engine 156 |
21 D |
| U153 |
Valid for all except engine 156 |
18 D |
| U74 |
Valid for diesel engines |
18 D |
| U75 |
Valid for gasoline engines |
21 D |
| W15/2 |
Ground (left footwell) |
9 L |
| W15/2 |
Ground (left footwell) |
10 H |
| W15/2 |
Ground (left footwell) |
13 H |

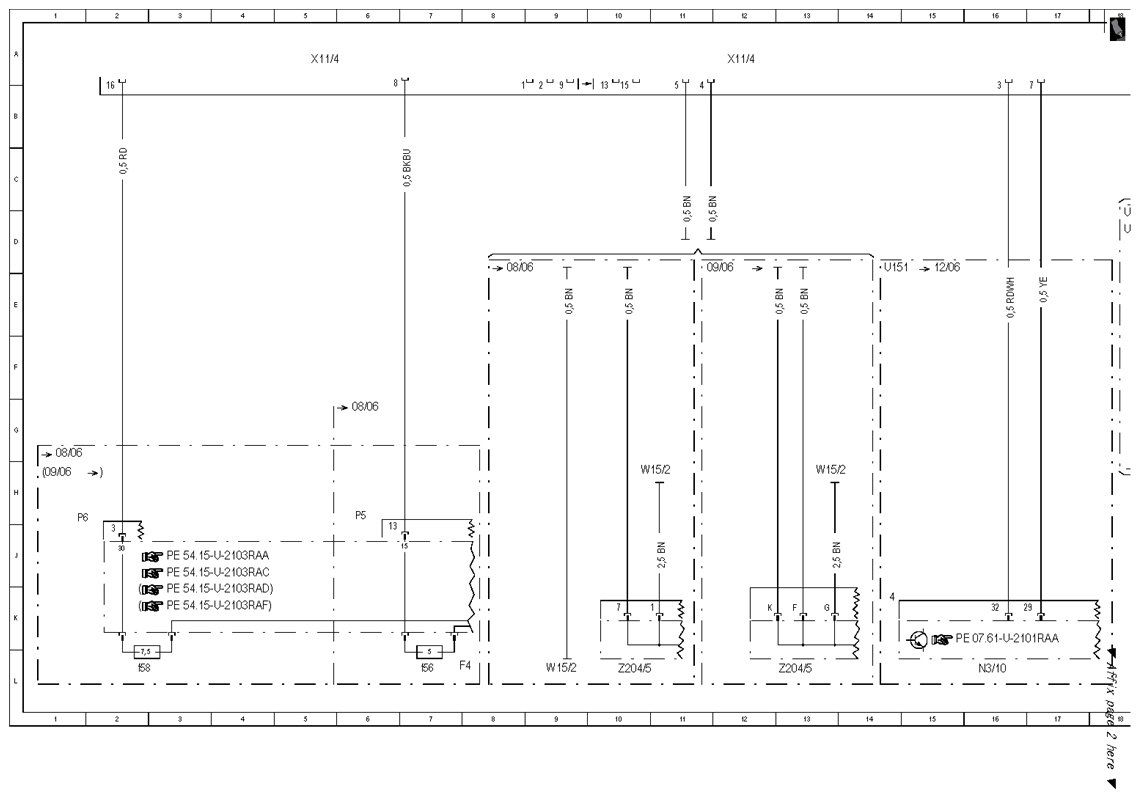

| X11/4 |
Data link connector |
5 A |
| X11/4 |
Data link connector |
12 A |
| X11/4 |
Data link connector |
20 A |
