Function diagram of fanfare horn system (FAN) electrical system - PE54.35-U-2050-99RAA

Code:	Designation:	Position:
F58kF	Fanfare horn relay	5 J
H2	Left fanfare horn	5 K
H2/1	Right fanfare horn	5 K
N10	Front SAM control unit	5 F
N80	Steering column module	2 B
N93	Central gateway control unit	2 G
S110s5	Fanfare horn system button	4 B
S111s5	Fanfare horn system button	6 B

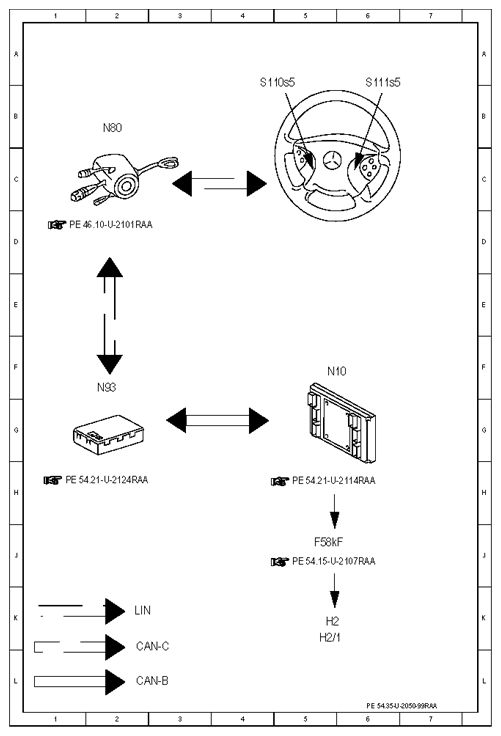

Fig 1: Fanfare Horn Electrical System Function Diagram

Courtesy of MERCEDES-BENZ USA
