Electrical function schematic of instrument cluster, operating condition display - PE54.30-P-2055-97RAA

Code: Designation: Position:
1 Circuit 15, status 14E
2 Wheel speed, signal 14G
3 Engine speed, signal 12F
4 Coolant temperature, signal 11F
5 Fuel level, signal 16K
5 Fuel level, signal 15G
6 Transmission mode, signal 16F
7 Gear stage, signal 16F
A1 Instrument cluster 14E
A1e4 Fuel reserve indicator lamp 10C
A1p13 Multifunction display 11D
A1p2 Fuel level and reserve indicator 11C
A1p5 Tachometer 11D
A1p8 Electronic speedometer 11D
A1s3 Trip odometer reset button 12C
A80 Intelligent servo module for DIRECT SELECT 20E
B4/1 Left fuel level sensor 18K
B4/2 Right fuel level sensor 18L
CAN B Interior CAN 15H
CAN B Interior CAN 14D
CAN C Engine compartment CAN 9F
CAN C Engine compartment CAN 17F
CAN C Engine compartment CAN 13H
N10/8 Rear SAM control unit 14J
N3/10 ME-SFI [ME] control unit 5G
N3/9 CDI control unit 5C
N47-5 ESP control unit 11J
N73 EIS [EZS] control unit 14B
U1018 Valid for gasoline engine 276 4J
U127 Valid for engine 272, engine 273 KE 4J
U74 Valid for diesel engines 4C
U75 Valid for gasoline engines 4F
U880 Valid for engine 642 4F
U932 Valid for engine 642 BLUETEC 4F
Y3/8n4 Fully integrated transmission control (VGS) control unit 19B

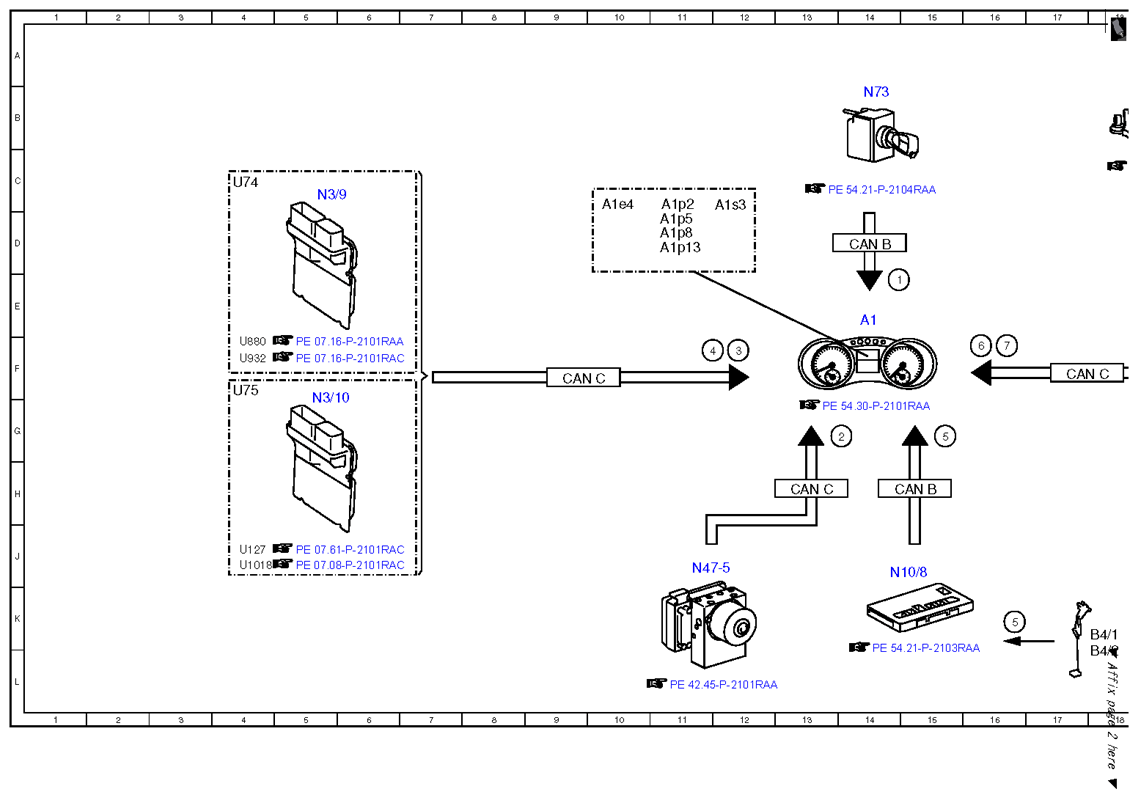

Fig 1: Instrument Cluster, Operating Condition Display Electrical Function Schematic (1 Of 2)
G10121479Courtesy of MERCEDES-BENZ USA

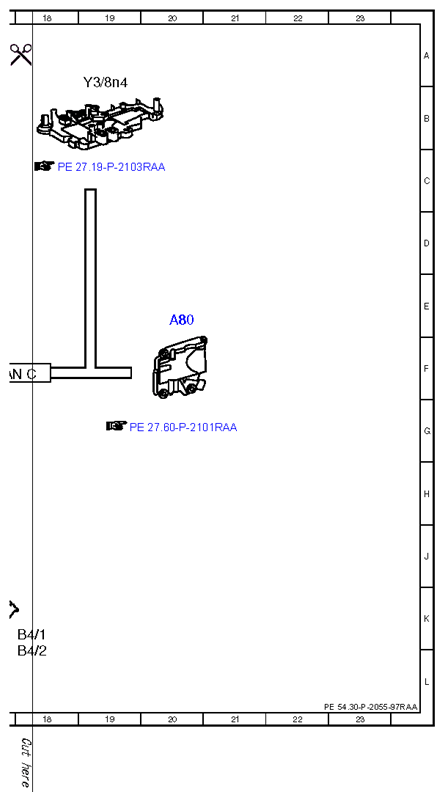

Fig 2: Instrument Cluster, Operating Condition Display Electrical Function Schematic (2 Of 2)
G10121480Courtesy of MERCEDES-BENZ USA
