Electrical function schematic for instrument cluster, trip computer - PE54.30-U-2057-99RAA

Code: Designation: Position:
1 Fuel level, signal 10 G
1 Fuel level, signal 11 K
2 Wheel speed, signal 12 F
2 Wheel speed, signal 17 F
3 Fuel consumption, signal 8 F
4 Multifunction steering wheel button group, signal 5 B
4 Multifunction steering wheel button group, signal 9 E
5 Circuit 15, status 10 E
6 Circuit 61, status 7 F
A1 Instrument cluster 10 E
A8/1 Transmitter key 11 B
B4/1 Left fuel level sensor 13 K
B4/2 Right fuel level sensor 13 K
CAN B Interior CAN 10 D
CAN B Interior CAN 10 H
CAN C Engine compartment CAN 6 F
CAN C Engine compartment CAN 7 D
CAN C Engine compartment CAN 13 F
L6/1 Left front RPM sensor 18 F
L6/2 Right front RPM sensor 18 F
L6/3 Left rear RPM sensor 18 F
L6/4 right rear RPM sensor 18 F
N10/8 Rear SAM control unit 10 J
N3/10 ME-SFI [ME] control unit 3 H
N3/9 CDI control unit 6 H
N47-5 ESP control unit 15 E
N73 EIS [EZS] control unit 10 A
N80 Steering column module 6 B
S110 Left multifunction steering wheel button group 2 B
U151 Valid for engine 113 2 K
U152 Valid for engine 156 2 L
U273 Valid for engine 272 except 272.973, 273 2 K
U277 Valid for engine 642.9 5 L
U74 Valid for diesel engines 5 H
U75 Valid for gasoline engines 2 H

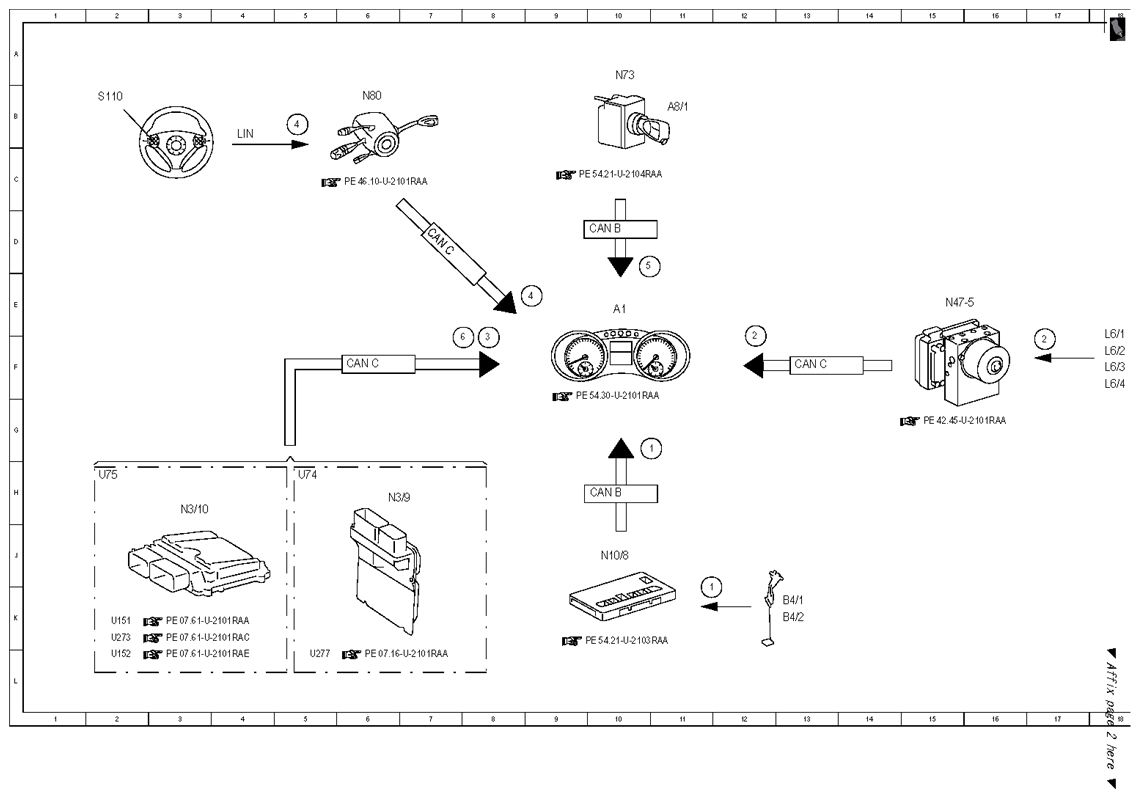

Fig 1: Instrument Cluster, Trip Computer Electrical Function Schematic (1 Of 2)
G10121500Courtesy of MERCEDES-BENZ USA
Fig 2: Instrument Cluster, Trip Computer Electrical Function Schematic (2 Of 2)
G10121501Courtesy of MERCEDES-BENZ USA
