| 1 |
Wheel speed, signal |
10 K |
| 1 |
Wheel speed, signal |
14 G |
| 2 |
Gear stage, signal |
16 F |
| 3 |
Transmission mode, signal |
17 F |
| 4 |
Engine speed, signal |
3 E |
| 4 |
Engine speed, signal |
12 F |
| 5 |
Coolant temperature sensor, signal |
3 G |
| 5 |
Coolant temperature sensor, signal |
11 F |
| 6 |
Circuit 15, status |
14 E |
| 7 |
Fuel level, signal |
15 G |
| 7 |
Fuel level, signal |
16 K |
| 8 |
Circuit 61, status |
11 F |

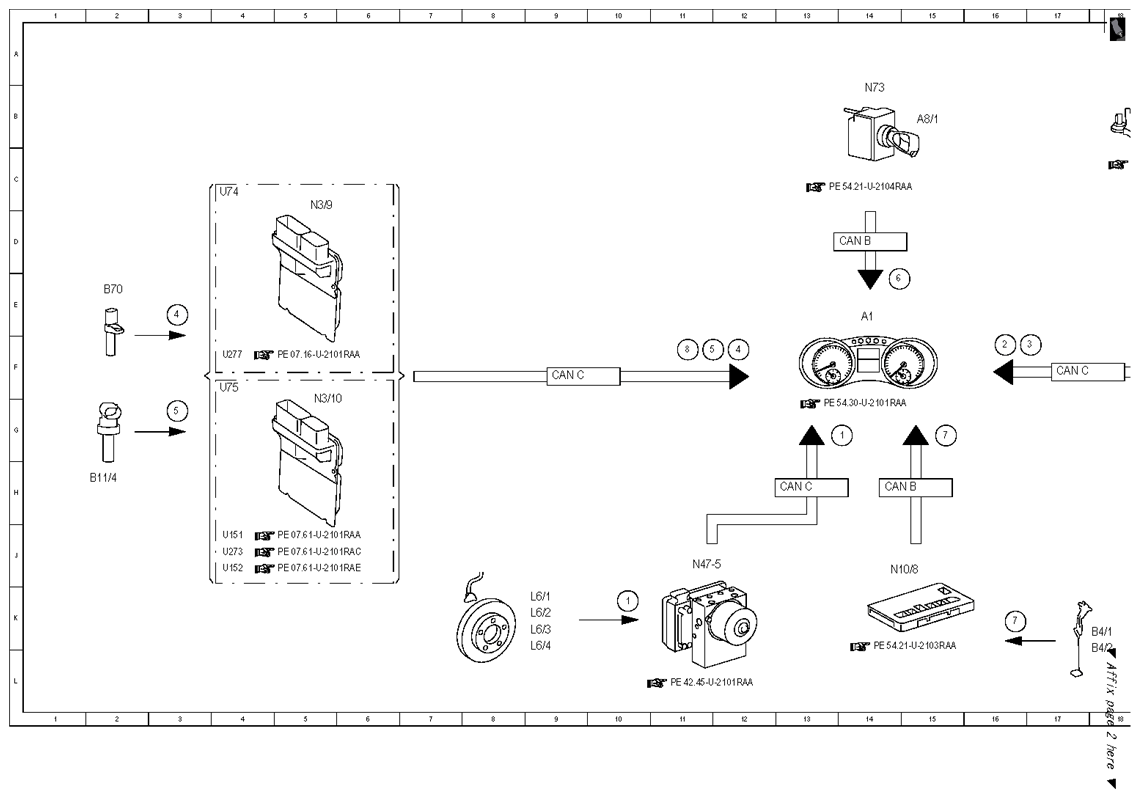

| A1 |
Instrument cluster |
14 E |
| A8/1 |
Transmitter key |
15 B |
| A80 |
Intelligent servo module for DIRECT SELECT |
20 E |
| B11/4 |
Coolant temperature sensor |
2 H |
| B4/1 |
Left fuel level sensor |
18 K |
| B4/2 |
Right fuel level sensor |
18 L |
| B70 |
Crankshaft Hall sensor |
2 E |
| CAN B |
Interior CAN |
13 D |
| CAN B |
Interior CAN |
14 H |
| CAN C |
Engine compartment CAN |
9 F |
| CAN C |
Engine compartment CAN |
13 H |
| CAN C |
Engine compartment CAN |
17 F |
| L6/1 |
Left front RPM sensor |
9 K |
| L6/2 |
Right front RPM sensor |
9 K |
| L6/3 |
Left rear RPM sensor |
9 K |
| L6/4 |
right rear RPM sensor |
9 L |
| N10/8 |
Rear SAM control unit |
14 J |
| N3/10 |
ME-SFI [ME] control unit |
5 G |
| N3/9 |
CDI control unit |
5 D |
| N47-5 |
ESP control unit |
11 J |
| N73 |
EIS [EZS] control unit |
14 B |
| U151 |
Valid for engine 113 |
4 J |
| U152 |
Valid for engine 156 |
4 J |
| U273 |
Valid for engine 272 except 272.973, 273 |
4 J |
| U277 |
Valid for engine 642.9 |
4 F |
| U74 |
Valid for diesel engines |
4 C |
| U75 |
Valid for gasoline engines |
4 G |

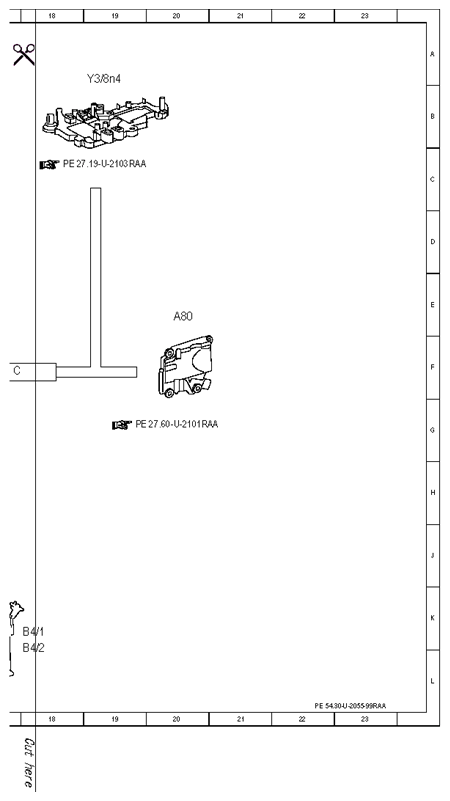

| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
19 B |
