| 1 |
Wheel speed, signal |
10 J |
| 1 |
Wheel speed, signal |
13 G |
| 2 |
Outside temperature indicator temperature sensor, signal |
15 G |
| 2 |
Outside temperature indicator temperature sensor, signal |
16 K |
| 3 |
Coolant temperature sensor, signal |
3 F |
| 3 |
Coolant temperature sensor, signal |
12 E |
| 4 |
Multifunction steering wheel button group, signal |
9 B |
| 4 |
Multifunction steering wheel button group, signal |
13 E |
| 5 |
Circuit 15, status |
14 D |
| 6 |
Time synchronization, signal |
16 D |
| 7 |
Rain/light sensor, status |
16 E |
| 7 |
Rain/light sensor, status |
22 E |
| 8 |
Rotary light switch, status |
16 F |
| 8 |
Rotary light switch, status |
21 K |
| 9 |
Circuit 61, status |
11 E |

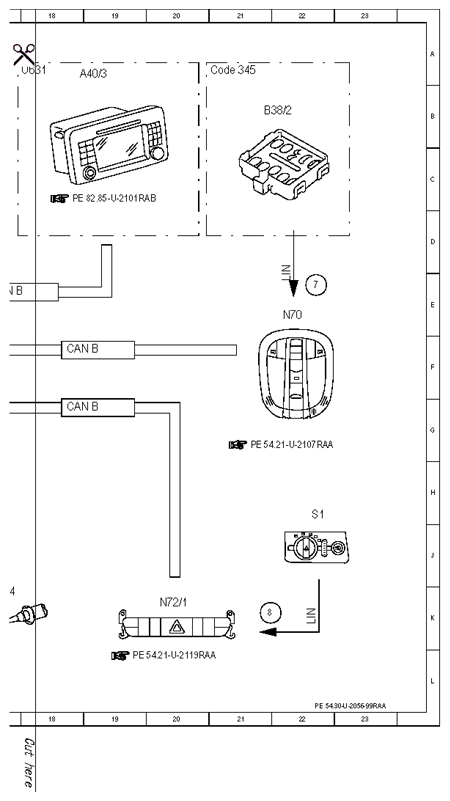

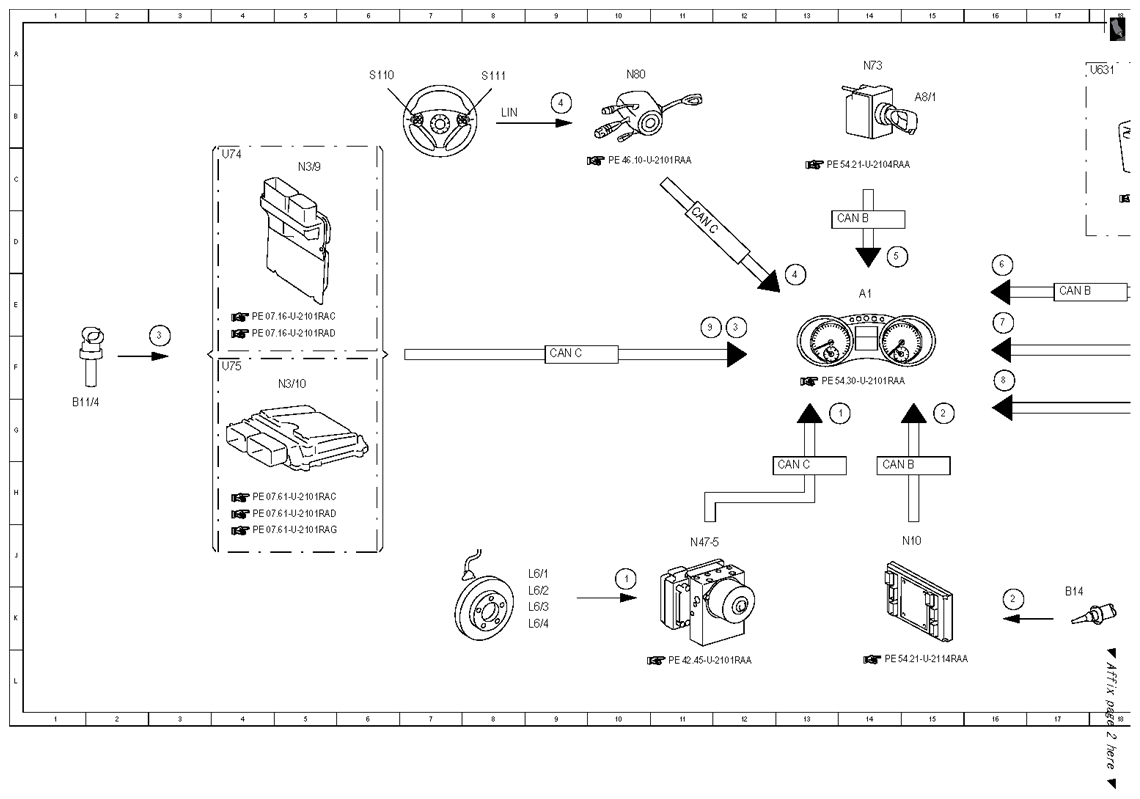

| A1 |
Instrument cluster |
14 E |
| A40/3 |
COMAND operating, display and control unit |
18 A |
| A8/1 |
Transmitter key |
15 B |
| B11/4 |
Coolant temperature sensor |
1 G |
| B14 |
Outside temperature display temperature sensor |
17 K |
| B38/2 |
Rain/light sensor |
21 B |
| CAN B |
Interior CAN |
13 D |
| CAN B |
Interior CAN |
14 H |
| CAN B |
Interior CAN |
17 E |
| CAN B |
Interior CAN |
18 G |
| CAN B |
Interior CAN |
18 F |
| CAN C |
Engine compartment CAN |
9 F |
| CAN C |
Engine compartment CAN |
11 D |
| CAN C |
Engine compartment CAN |
13 H |
| Code 345 |
Rain sensor |
21 A |
| L6/1 |
Left front RPM sensor |
9 J |
| L6/2 |
Right front RPM sensor |
9 K |
| L6/3 |
Left rear RPM sensor |
9 K |
| L6/4 |
right rear RPM sensor |
9 K |
| N10 |
Front SAM control unit |
14 J |
| N3/10 |
ME-SFI [ME] control unit |
5 F |
| N3/9 |
CDI control unit |
5 C |
| N47-5 |
ESP control unit |
11 J |
| N70 |
Overhead control panel control unit |
22 E |
| N72/1 |
Upper control panel control unit |
20 K |
| N73 |
EIS [EZS] control unit |
14 A |
| N80 |
Steering column module |
10 A |
| S1 |
Rotary light switch |
22 J |
| S110 |
Left multifunction steering wheel button group |
6 A |
| S111 |
Right multifunction steering wheel button group |
8 A |
| U631 |
Valid for COMAND |
17 A |
| U74 |
Valid for diesel engines |
4 C |
| U75 |
Valid for gasoline engines |
4 F |
