| A28/3 |
E-net compensator |
40 L |
| A28/3x1 |
E-net compensator connector |
39 J |
| A32 |
AC air recirculation unit |
4 L |
| A34/15 |
UHI portable CTEL holder (Universal Handy Interface) |
44 L |
| A34/15x1 |
Connector 1, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
42 K |
| A34/15x2 |
Connector 2, UPCI [UHI] portable CTEL holder (Universal Handy Interface) |
41 K |

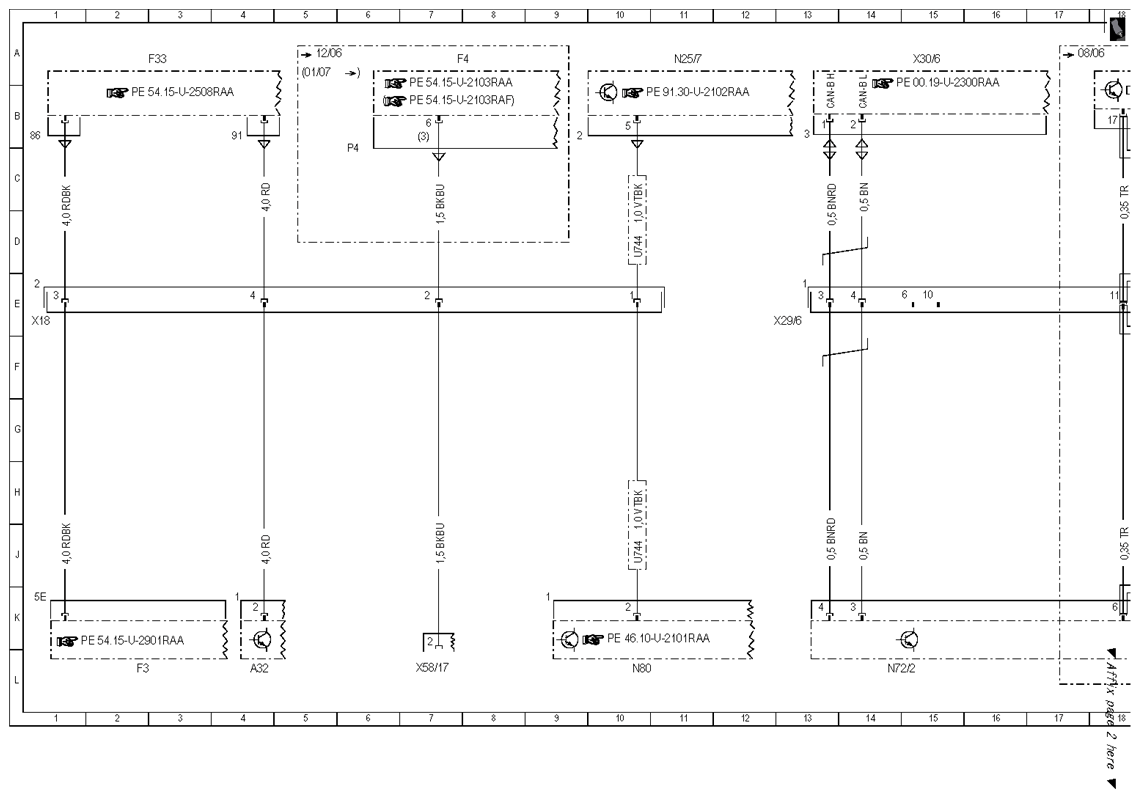

| F3 |
Cockpit fuse box |
2 L |
| F33 |
Battery compartment prefuse box |
2 A |
| F4 |
Load compartment fuse and relay box |
7 A |
| F4 |
Load compartment fuse and relay box |
24 A |
| F4 |
Load compartment fuse and relay box |
30 A |

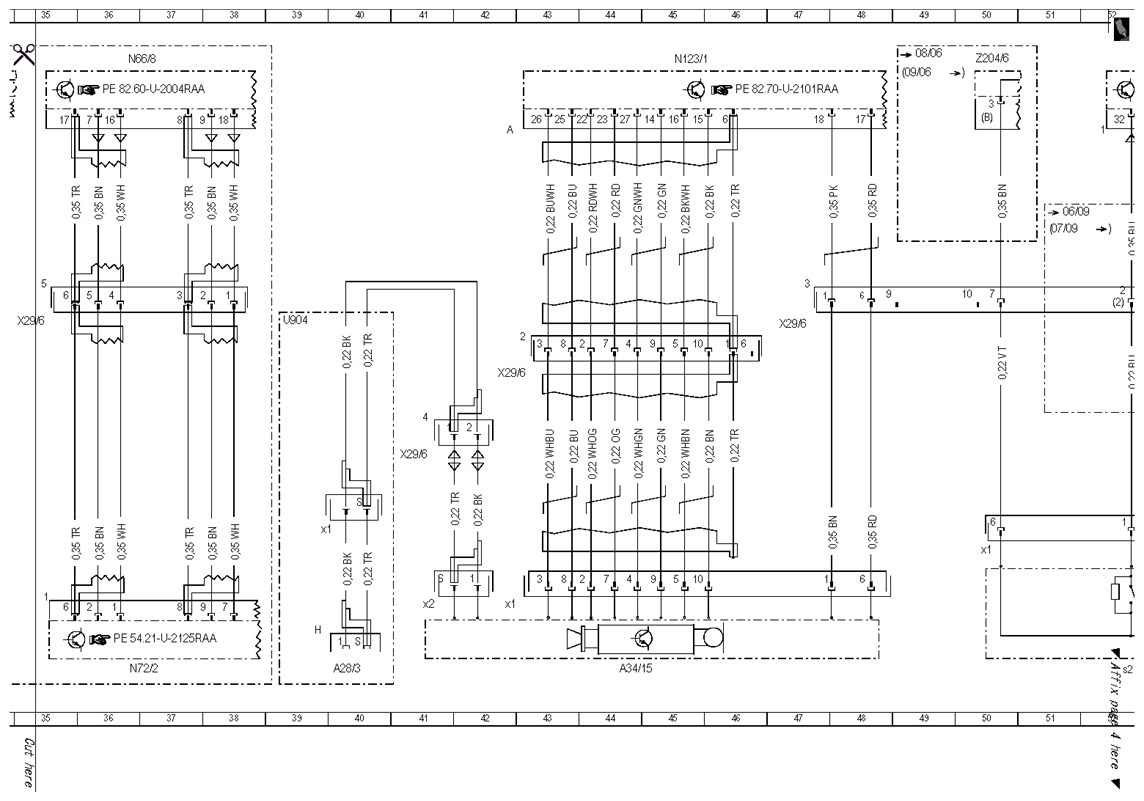

| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
45 A |

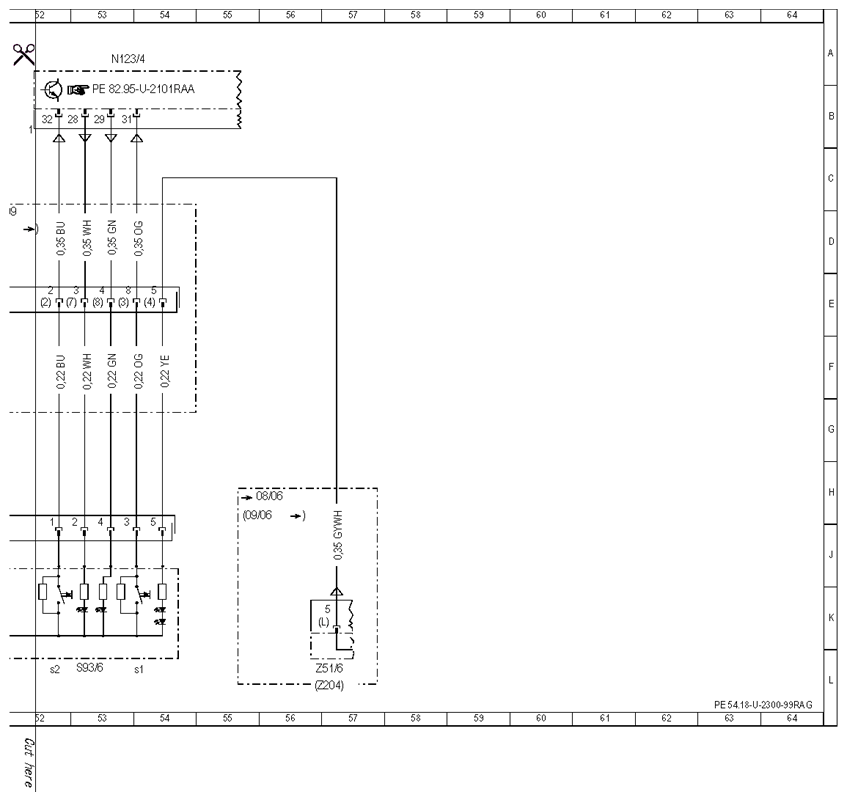

| N123/4 |
Emergency call system control unit |
53 A |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
11 A |
| N66/8 |
Rear audio control unit |
19 A |
| N66/8 |
Rear audio control unit |
36 A |
| N72/2 |
RCP [HBF] control unit |
14 L |
| N72/2 |
RCP [HBF] control unit |
20 L |
| N72/2 |
RCP [HBF] control unit |
36 L |
| N80 |
Steering column module |
10 L |

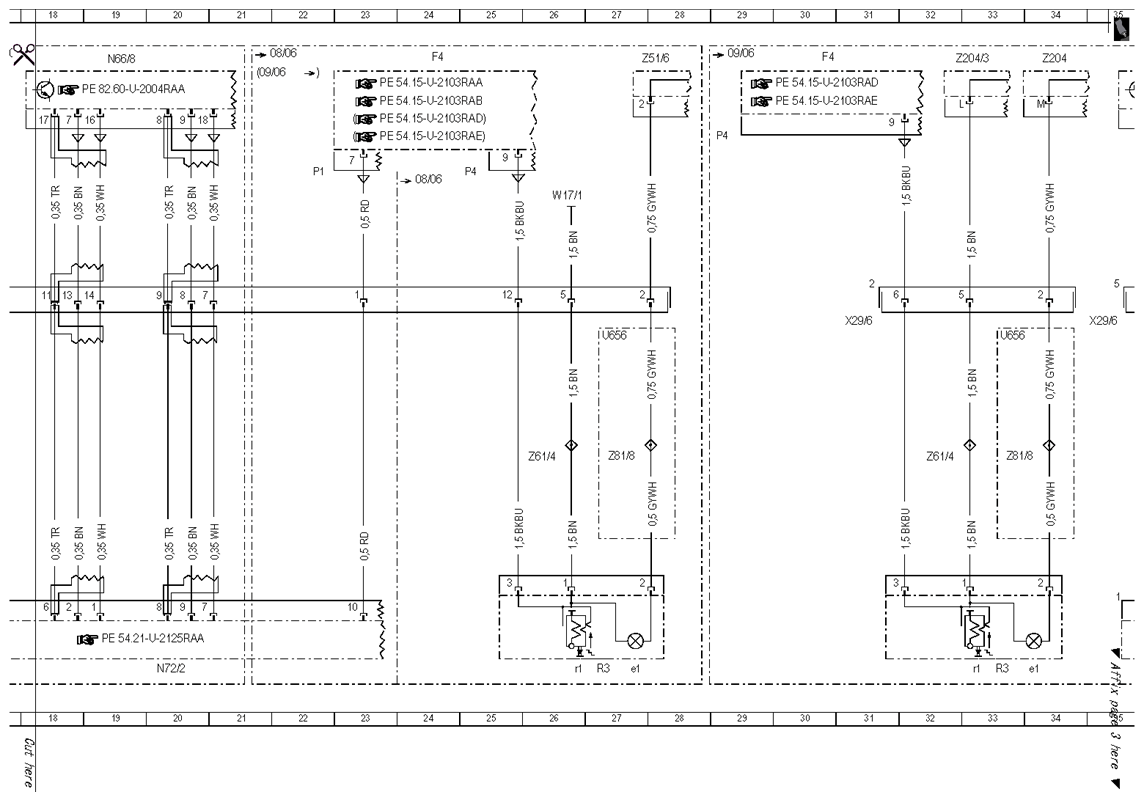

| R3 |
Front cigar lighter (with ashtray illumination) |
27 L |
| R3 |
Front cigar lighter (with ashtray illumination) |
33 L |
| R3e1 |
Illumination |
27 L |
| R3e1 |
Illumination |
33 L |
| R3r1 |
Heating element |
26 L |
| R3r1 |
Heating element |
33 L |
| S93/6 |
MB-Info and telediagnosis button group |
53 L |
| S93/6s1 |
MB-Info button |
53 L |
| S93/6s2 |
Telediagnosis button |
52 L |
| S93/6x1 |
MB-Info and telediagnosis button group connector |
50 J |
| U656 |
Valid for interior light package |
27 F |
| U656 |
Valid for interior light package |
33 F |
| U744 |
Valid for steering wheel heater |
10 J |
| U744 |
Valid for steering wheel heater |
10 D |
| U904 |
Wiring harness installed but nonfunctional |
39 E |
| W17/1 |
Ground (left rear seat) |
26 C |
| X18 |
Interior/cockpit connector |
1 E |
| X29/6 |
Center console intermediate connector |
12 E |
| X29/6 |
Center console intermediate connector |
31 E |
| X29/6 |
Center console intermediate connector |
35 E |
| X29/6 |
Center console intermediate connector |
41 H |
| X29/6 |
Center console intermediate connector |
42 F |
| X29/6 |
Center console intermediate connector |
47 E |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
15 A |
| X58/17 |
Front interior socket |
7 L |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
34 A |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
56 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
32 A |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
50 A |
| Z51/6 |
Circuit 58d interior connector sleeve |
27 A |
| Z51/6 |
Circuit 58d interior connector sleeve |
56 L |
| Z61/4 |
Front center console circuit 31 connector sleeve |
26 H |
| Z61/4 |
Front center console circuit 31 connector sleeve |
32 H |
| Z81/8 |
Front center console circuit 58d connector sleeve |
27 H |
| Z81/8 |
Front center console circuit 58d connector sleeve |
33 H |
