Wiring diagram for connector separation points - PE54.18-U-2300-99RAA

Code: Designation: Position:
A1 Instrument cluster 6 L
A1 Instrument cluster 25 L
A2/6 CD changer 44 L
A2/60 Cockpit KEYLESS-GO antenna 30 L
A2/6x1 CD changer connector 1 45 H
A44/1 PTS warning indicator, driver side instrument panel 76 A
B10/11 Rear air conditioning evaporator temperature sensor 69 L
B10/37 Rear headroom AC temperature sensor 73 L
B10/38 Footwell rear AC temperature sensor 71 L
E13/2 Glove compartment illumination with switch 27 L
E17/15 Right front footwell lamp 40 L
E17/16 Left front footwell lamp 39 L
F4 Load compartment fuse and relay box 25 A
G1/7 Additional battery 10 A
H4/27 Center cockpit speaker (centerfill) 36 L
M13/1 Rear AC additional circulation pump 54 L
M16/41 Coolant shutoff motor 55 L
M16/42 Rear air conditioning coolant shutoff motor 62 L
M16/42x1 Rear air conditioning coolant shutoff motor connector 62 J
M16/43 3rd seat row air distribution actuator motor 64 L
M16/44 3rd seat row blending air flap actuator motor 67 L
M2/21 Rear air distribution flap actuator motor 79 L
N10 Front SAM control unit 42 A
N123/4 Emergency call system control unit 38 A
N22 AAC [KLA] control and operating unit 50 L
N22/7 Comfort AAC [KLA] control and operating unit 50 L
N22/7 Comfort AAC [KLA] control and operating unit 54 A
N22/7 Comfort AAC [KLA] control and operating unit 60 A
N22/7 Comfort AAC [KLA] control and operating unit 68 A
N40/3 Amplifier for sound system 34 A
N62 PTS control unit 76 L
N69/5 KEYLESS-GO control unit 30 A
N73 EIS [EZS] control unit 10 L
N80 Steering column module 2 L
S1 Rotary light switch 20 L
S1 Rotary light switch 23 L
U538 Valid for Parktronic System 74 H
U538 Valid for Parktronic System 74 H
U586 Valid for CD changer 42 C
U656 Valid for interior light package 41 C
U679 Valid for version without xenon headlamps 18 B
U679 Valid for version without xenon headlamps 18 A
U82 Valid for KEYLESS GO 28 B
U82 Valid for KEYLESS GO 28 A
U90 Valid for Sound System 33 A
W17/1 Ground (left rear seat) 60 H
X122/2 Booster blower connector (air conditioning) 78 H
X122/3 Rear AC connector 61 H
X18 Interior/cockpit connector 4 E
X18 Interior/cockpit connector 53 E
X25/2 Engine compartment/interior compartment connector 53 H
X30/19 Passenger-side voltage distributor (CAN C) connector 6 A
X30/4 Right voltage distributor (CAN) connector 16 L
X30/6 Cockpit voltage distributor (CAN) connector 16 A
X38/1 Centerfill speaker intermediate connector 34 H
Z204/9 Circuit 31 left rear seat voltage distributor connector (3) 60 L
Z21 Front rotary tumbler switch connector sleeve 10 A
Z3/11 Circuit 15 (fused) connector sleeve 24 H
Z35/7 Cockpit CAN bus node (high) 4 H
Z35/8 Cockpit CAN bus node (low) 5 H
Z50/1 Cockpit connector sleeve (circuit 58d) 41 H
Z50/37 Air conditioner compressor ground connector sleeve 47 H
Z54/7 Footwell lamps connector sleeve 39 C
Z68/1 Instrument panel circuit 31 climate control LIN connector sleeve 67 D
Z68/1z2 Instrument panel circuit 31 climate control LIN connector sleeve 67 J
Z68/2 Instrument panel climate control LIN positive line connector sleeve 65 D
Z68/8 Rear air conditioning sensor ground connector sleeve 71 J

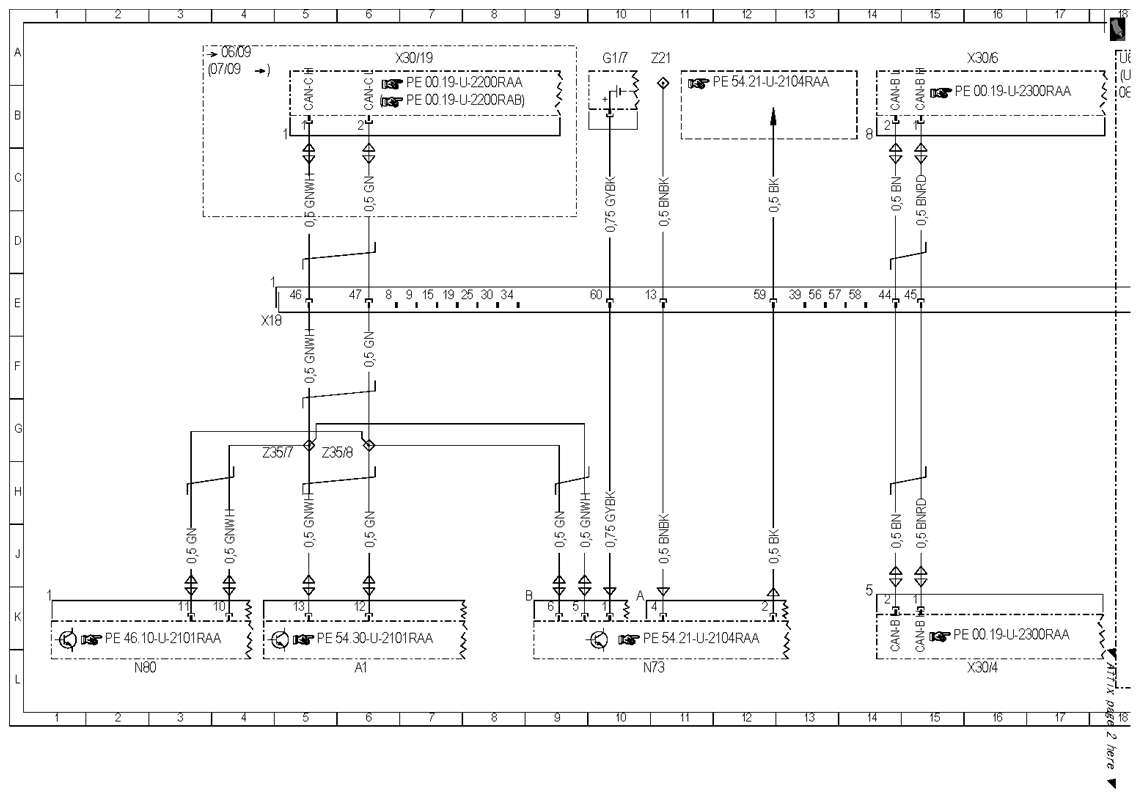

Fig 1: Connector Separation Points Wiring Diagram (1 Of 5)
G10121339Courtesy of MERCEDES-BENZ USA

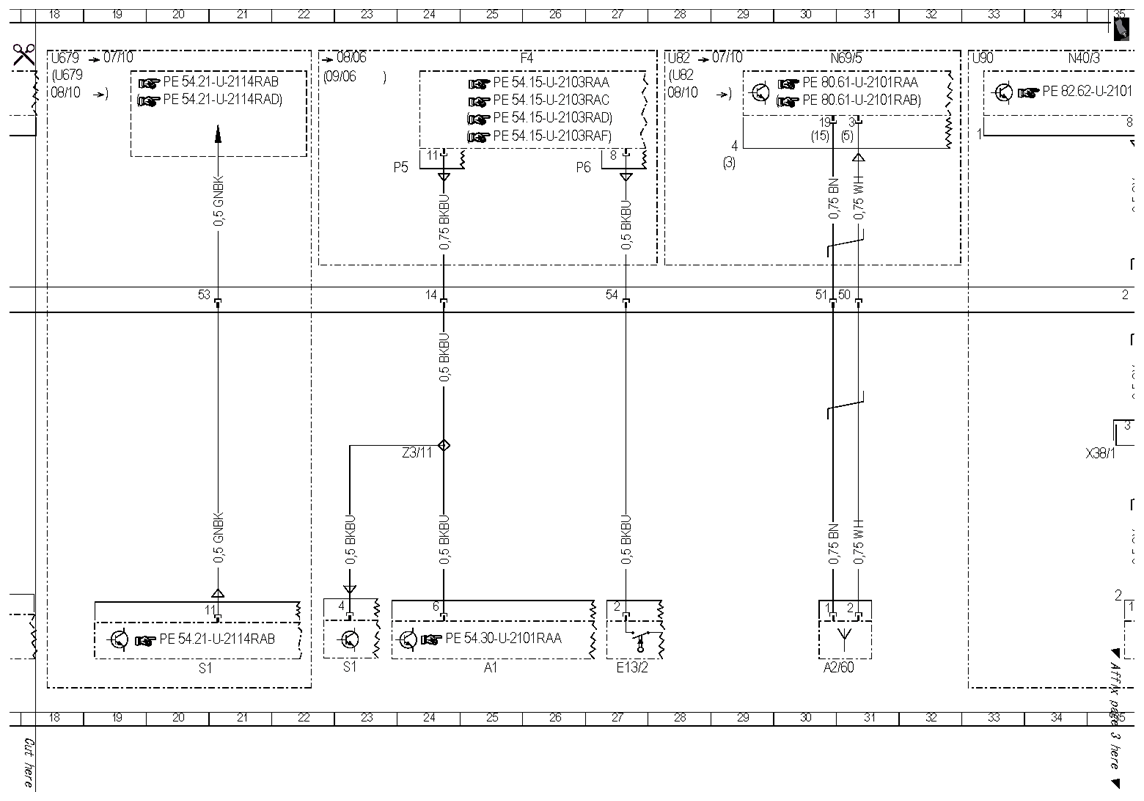

Fig 2: Connector Separation Points Wiring Diagram (2 Of 5)
G10121340Courtesy of MERCEDES-BENZ USA

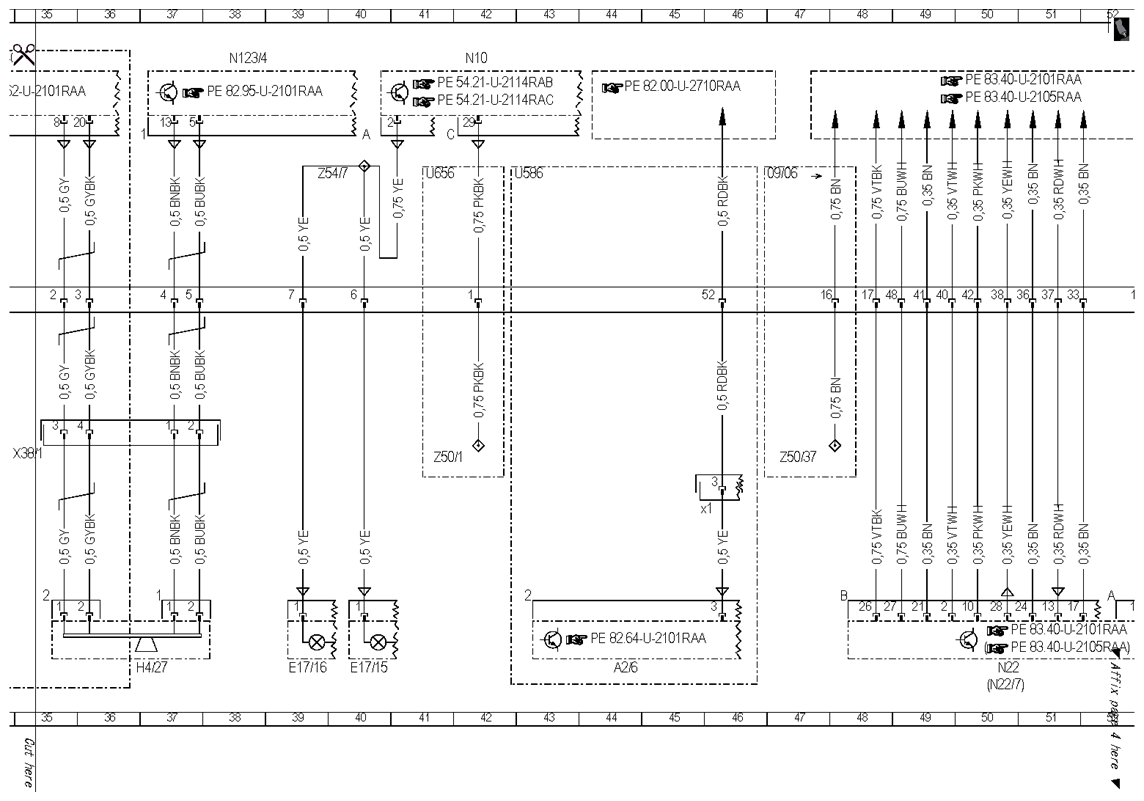

Fig 3: Connector Separation Points Wiring Diagram (3 Of 5)
G10121341Courtesy of MERCEDES-BENZ USA

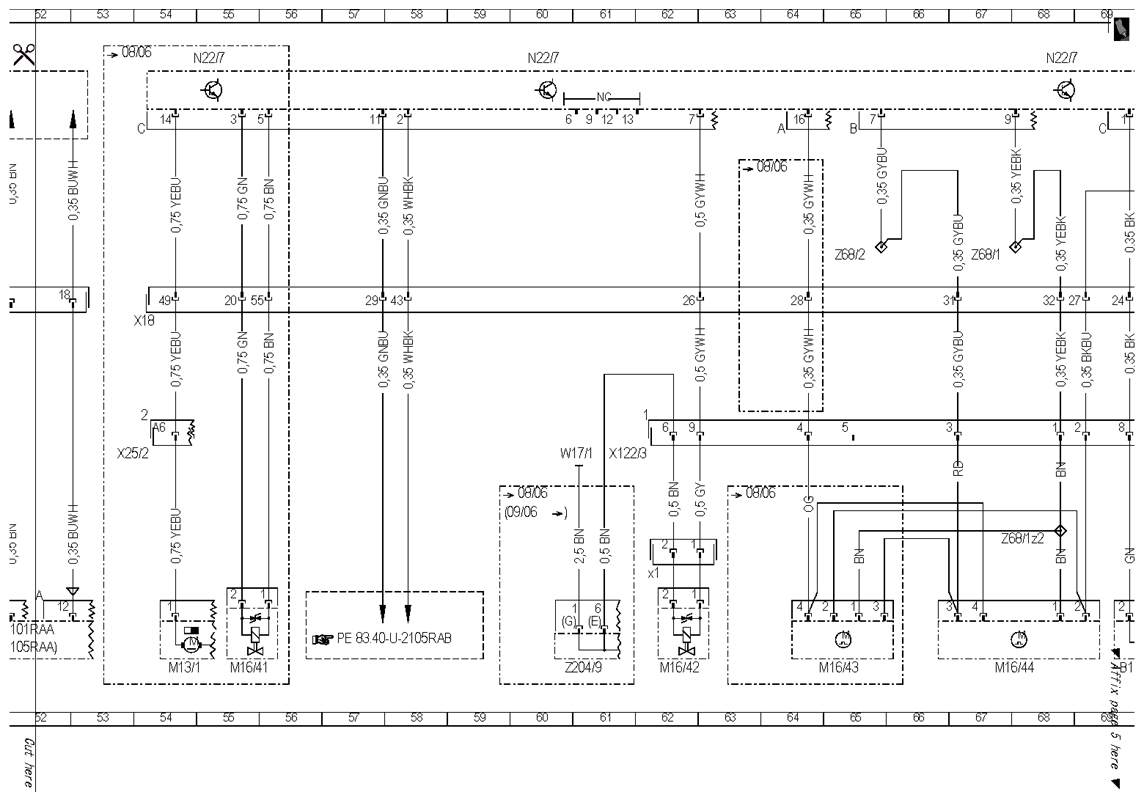

Fig 4: Connector Separation Points Wiring Diagram (4 Of 5)
G10121342Courtesy of MERCEDES-BENZ USA

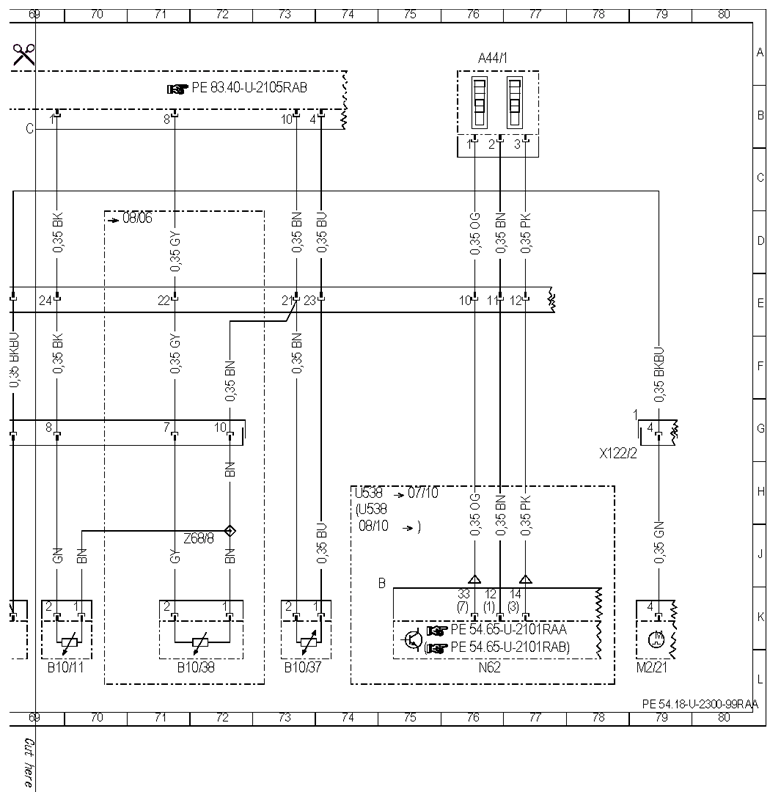

Fig 5: Connector Separation Points Wiring Diagram (5 Of 5)
G10121343Courtesy of MERCEDES-BENZ USA
