Remove/install fanfare horns - AR54.35-P-1555RT

MODEL 251

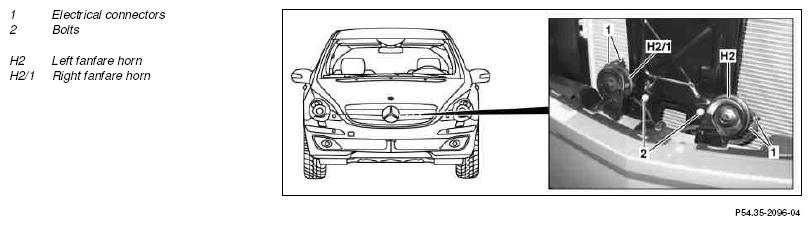

Fig 1: Identifying Fanfare Horns Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open engine hood
2	Remove radiator trim		AR88.40-P-4001RT
3	Disconnect electrical connectors (1) on left fanfare horn (H2) or right fanfare horn (H2/1)
4	Unscrew bolts (2) and remove left fanfare horn (H2) or right fanfare horn (H2/1)	Ensure that the left fanfare horn (H2) and right fanfare horn (H2/1) do not make contact with surrounding componentsMaintain a minimum distance of 10 mm.
5	Install in the reverse order
