Remove/install Parktronic System (PTS) warning display in rear passenger compartment - AR54.65-P-0007RT

MODEL 251 with CODE (220) Parktronic system (PTS)

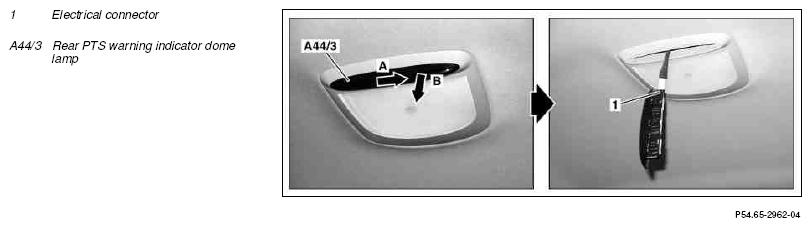

Fig 1: Identifying Parktronic System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip rear dome lamp PTS warning indicator (A44/3) by moving to right (arrow A) and then remove by lowering (arrow B)	Handle ribbon cable with care to prevent damage.
2	Disconnect electrical connector (1) from rear dome lamp PTS warning indicator (A44/3)
3	Install in the reverse order
4	Perform function check
