Remove and install DC/AC converter control unit - AR54.21-P-1600RT
MODEL 251 with CODE U80 (115 V socket in load compartment)
MODIFICATION NOTES
| 16.4.13 | Disconnect ground cable of battery, included for the first time | Operation step 1 |
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003RT | |
| 2 | Remove lining on the right-hand side of the trunk | AR68.30-P-4800RT | |

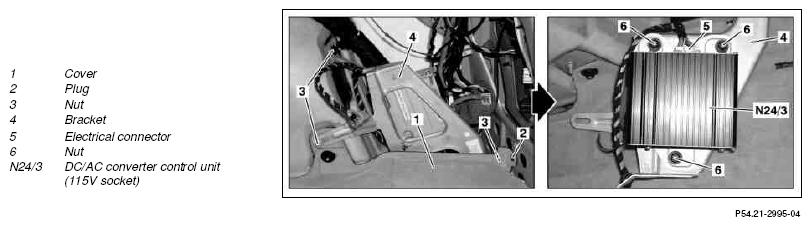

| 3 | Remove cover (1) | ||
| 4 | Remove plug (2) | ||
| 5 | Unscrew nut (3) | ||
| 6 | Lift bracket (4) and place on floor covering | ||
| 7 | Disconnect electrical connector (5) | ||
| 8 | Unscrew nut (6) and remove DC/AC converter control unit (115 V power outlet) (N24/3) from bracket (4) | ||
| 9 | Install in the reverse order |
