Check condition of battery - AR54.10-P-1129RT
MODEL 251
MODIFICATION NOTES
| 24.2.06 | Cold test current | 12 AH | *BE54.10-P-1002-01A |
| Removing | |||
| Notes on AGM battery | AH54.10-P-0002-01A | ||

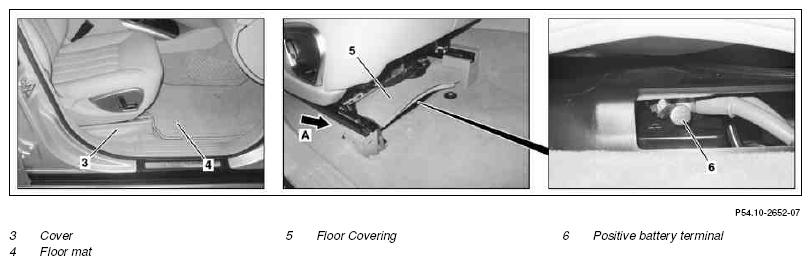

| 1 | Move front passenger seat all the way up and back | ||
| 2 | Unclip trim (3) to the front and remove | ||
| 3 | Fold floor mat (4) to the front and lift floor covering slightly (5) to get access to the positive terminal of the battery (6) as well as to the battery's negative terminal (arrow A) | ||
| Checking | |||
| 4 | Visual inspection for external leaks | ||
| Remove/install battery | AR54.10-P-0005RT | ||
| Dispose of battery | OS54.10-P-0001-01Z | ||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 5 | Check battery | AR54.10-P-1129-01A | |
| Cold cranking amps as per EN | |||
| Battery capacity 12 Ah | *BE54.10-P-1001-01A | ||
| Battery capacity 30 Ah | *BE54.10-P-1002-01A | ||
| Battery capacity 35 Ah | *BE54.10-P-1003-01A | ||
| Battery capacity 46 Ah | *BE54.10-P-1005-01A | ||
| Battery capacity 60 Ah VRLA | *BE54.10-P-1006-01A | ||
| Battery capacity 60 Ah | *BE54.10-P-1007-01A | ||
| Battery capacity 62 Ah | *BE54.10-P-1009-01A | ||
| Battery capacity 70 Ah VRLA | *BE54.10-P-1010-01A | ||
| Battery capacity 74 Ah | *BE54.10-P-1011-01A | ||
| Battery capacity 80 Ah VRLA | *BE54.10-P-1012-01A | ||
| Battery capacity 84 Ah | *BE54.10-P-1013-01A | ||
| Battery capacity 90 Ah VRLA | *BE54.10-P-1014-01A | ||
| Battery capacity 95 Ah VRLA | *BE54.10-P-1015-01A | ||
| Battery capacity 100 Ah Midtronics MCR 717 battery tester and analyzer Red terminal for Midtronics battery tester and analyzer MCR 717 Black terminal for Midtronics battery tester and analyzer MCR 717 |
*BE54.10-P-1016-01A | ||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 6.1 | Reduce increased voltage after charging process | On a battery, that is disconnected from the on-board electrical system and with the message "Surface voltage" in the display of the Midtronics battery tester and analyzer MCR 717 Midtronics MCR 717 battery tester and analyzer Volt ampere tester ETT 011.00 |
AR54.10-P-1129-03A |
| 7.1 | Charge battery | If test code "Charge and test" is displayed on Midtronics battery tester and analyzer MCR 717 |
AR54.10-P-1130RT |
| Install | |||
| 8 | Position floor covering (5) and floor mat (4) | ||
| 9 | Install paneling (3) | ||
| 10 | Move front passenger seat to default position |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | All models | |||
|---|---|---|---|---|---|
| BE54.10-P-1001-01A | Battery capacity 12 Ah | Cold test current | as per EN | A | 170 |
| BE54.10-P-1002-01A | Battery capacity 30 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≥1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 90 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 540 | ||
| BE54.10-P-1003-01A | Battery capacity 35 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≥1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 100 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 520 | ||
| BE54.10-P-1005-01A | Battery capacity 46 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≥1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 140 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 420 | ||
| BE54.10-P-1006-01A | Battery capacity 60 Ah VRLA | Cold test current | as per EN | A | 680 |
| BE54.10-P-1007-01A | Battery capacity 60 Ah | Cold test current | as per EN | A | 510 |
| BE54.10-P-1009-01A | Battery capacity 62 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≥1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 190 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 480 | ||
| BE54.10-P-1010-01A | Battery capacity 70 Ah VRLA | Cold test current | as per EN | A | 760 |
| BE54.10-P-1011-01A | Battery capacity 74 Ah | Battery test at 20 °C | Acid density | kg/dm3 | ≥1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 265 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 680 | ||
| BE54.10-P-1012-01A | Battery capacity 80 Ah VRLA | Cold test current | as per EN | A | 800 |
| BE54.10-P-1013-01A | Battery capacity 84 Ah | Cold test current | as per EN | A | 700 |
| BE54.10-P-1014-01A | Battery capacity 90 Ah VRLA | Cold test current | as per EN | A | 950 |
| BE54.10-P-1015-01A | Battery capacity 95 Ah VRLA | Cold test current | as per EN | A | 850 |
| BE54.10-P-1016-01A | Battery capacity 100 Ah | Battery test at 20 °C | Acid density | kg/dm3 | 1, 24 |
| Maximum permissible difference between individual battery cells | kg/dm3 | 0, 04 | |||
| Load current | A | 300 | |||
| Load time | s | 10 | |||
| Voltage | VV | ≈10 | |||
| Cold test current | as per EN | A | 760 | ||
