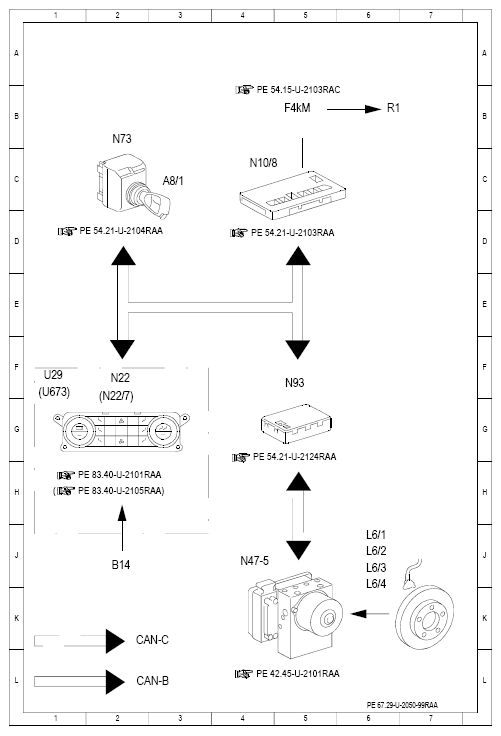

| A8/1 |
Transmitter key |
3 C |
| B14 |
Outside temperature display temperature sensor |
2 J |
| F4kM |
Heated rear window relay |
5 B |
| L6/1 |
Left front RPM sensor |
6 J |
| L6/2 |
Right front RPM sensor |
6 J |
| L6/3 |
Left rear RPM sensor |
6 J |
| L6/4 |
right rear RPM sensor |
6 K |
| N10/8 |
Rear SAM control unit |
4 C |
| N22 |
AAC [KLA] control and operating unit |
2 F |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
2 G |
| N47-5 |
ESP control unit |
4 J |
| N73 |
EIS [EZS] control unit |
2 C |
| N93 |
Central gateway control unit |
5 F |
| R1 |
Heated rear window |
6 B |
| U29 |
Valid for AAC [KLA] |
1 F |
| U673 |
Valid for comfort AAC [K-KLA] |
1 G |
