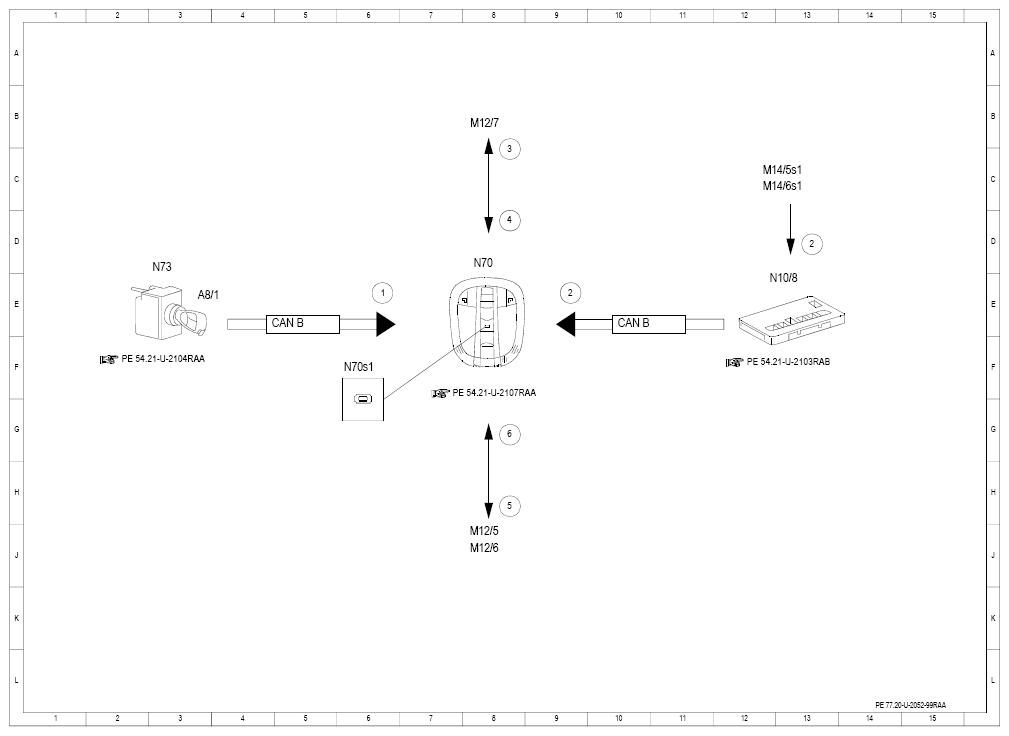

| 1 |
Circuit 15, status |
6 E |
| 2 |
Rotary tumbler microswitch, status |
9 E |
| 2 |
Rotary tumbler microswitch, status |
13 D |
| 3 |
Roller sun blind drive unit, actuation |
8 C |
| 4 |
Roller sun blind drive unit, signal |
8 D |
| 5 |
Panoramic sliding sunroof drive unit, actuation |
8 H |
| 6 |
Panoramic sliding sunroof drive unit, signal |
8 G |
| A8/1 |
Transmitter key |
3 E |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
10 E |
| M12/5 |
Roller sun blind drive unit |
8 J |
| M12/6 |
Drive unit 1, panoramic sliding roof |
8 J |
| M12/7 |
Drive unit 2, panoramic sliding roof |
8 B |
| M14/5s1 |
Right front door rotary tumbler microswitch |
12 C |
| M14/6s1 |
Left front door rotary tumbler microswitch |
12 C |
| N10/8 |
Rear SAM control unit |
12 E |
| N70 |
Overhead control panel control unit |
8 D |
| N70s1 |
Roof switch |
6 F |
| N73 |
EIS [EZS] control unit |
3 E |
