Function diagram of electrical system of garage door opener - PE68.05-U-2050-99RAA

Code: Designation: Position:
A67 Inside rearview mirror unit 6 E
A67e4 Garage door opener indicator lamp 5 C
A8/1 Transmitter key 2 H
N70 Overhead control panel control unit 6 G
N73 EIS [EZS] control unit 2 H

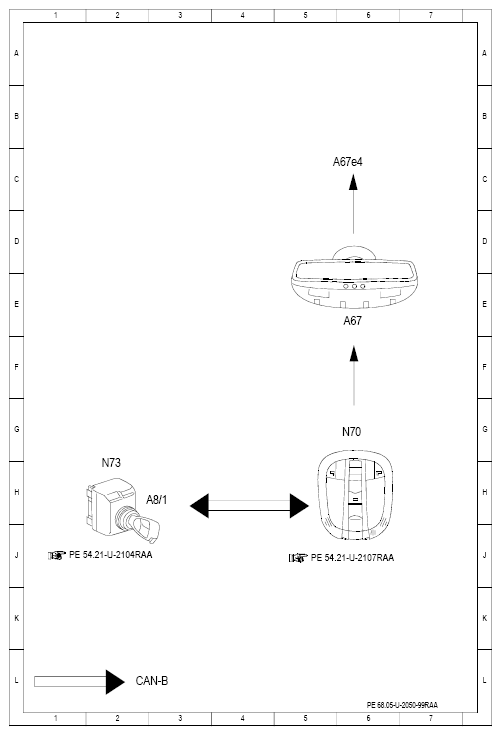

Fig 1: Garage Door Opener Electrical System Function Diagram
G10121987Courtesy of MERCEDES-BENZ USA
