Remove/install sun visor - AR68.60-P-5480RT

MODEL 251

Shown on vehicle with power glass tilting/sliding roof, code 414:

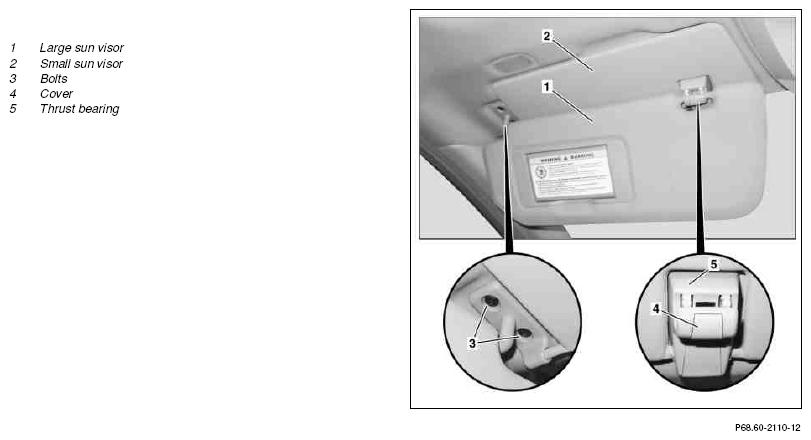

Fig 1: Identifying Sun Visor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unhook large sun visor (1) from thrust bearing (5) and turn to side
2.1	Fold up cover (4)	Only on vehicles with power glass tilting/sliding roof, code 414.
		Long wedge	Figure
3.1	Pivot small sun visor (2) downward, press out of thrust bearing (5) and remove	Only on vehicles with power glass tilting/sliding roof, code 414.
4	Remove bolts (3)
5	Remove large sun visor (1)
6	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
