Remove/install rear ashtray - AR68.20-P-2230RT

MODEL 251

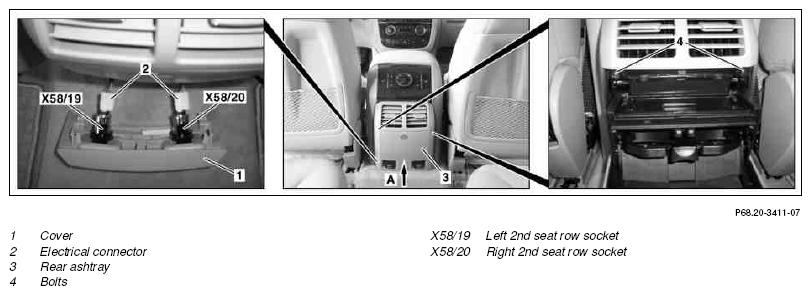

Fig 1: Identifying Rear Ashtray Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

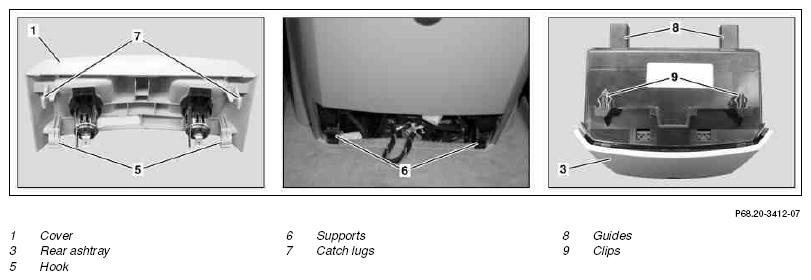

Fig 2: Identifying Rear Ashtray Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Unclip cover (1) at top (arrow A)	Mounting wedge	Figure
2	Disconnect electrical connector (2) from left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20)
3	Open rear ashtray (3)
4	Remove bolts (4)
5	Pull rear ashtray (3) out toward rear
	Install
6	Insert rear ashtray (3) into guides (8) and slide in until clips (9) arrest
7	Screw in bolts (4)
8	Connect electrical connector to left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20)
9	Insert hook (5) of cover (1) into mounts (6)	Ensure that hook (5) is seated correctly in mounts (6)
10	Clip on upper cover (1) (arrow A)	Catch lug (7) should arrest audibly.
