Remove/install paneling on D-pillar - AR68.30-P-4495RT

MODEL 251

Shown on model 251.1

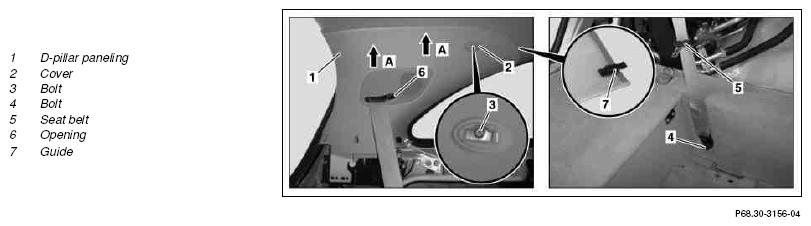

Fig 1: Identifying D-Pillar Paneling Remove/Install Component - Shown On Model 251.1

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with rear air conditioning, code 582

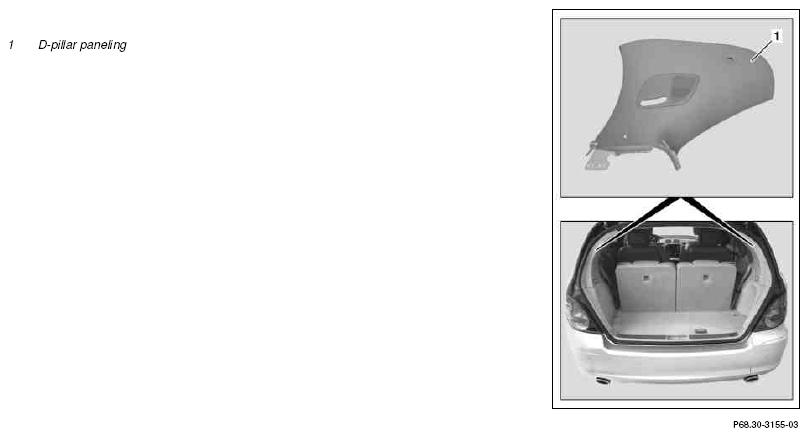

Fig 2: Identifying D-Pillar Paneling Remove/Install Component

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove side paneling in trunk	Left or right	AR68.30-P-4800RT
2	Unclip cover (2)	Long wedge	Figure
3	Unscrew bolt (3).
4	Unscrew screw (4) from belt end fitting	Ensure that seat belt does not twist
			*BA91.40-P-1001-01N
5	Unclip D-pillar paneling (1) (arrows A)	Ensure that guide (7) is seated correctly
		Mounting wedge	Figure
6	Guide seat belt (5) through opening in D-pillar paneling (1)
7	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
