Remove/install paneling on C-pillar - AR68.30-P-4490RT

MODEL 251

Shown on model 251.1

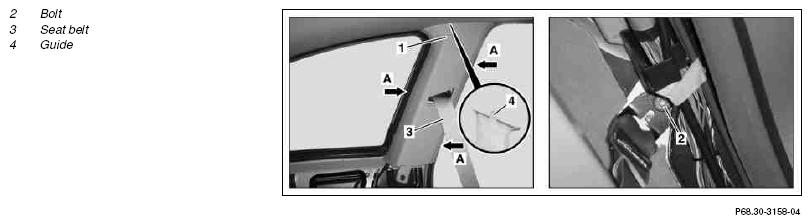

Fig 1: Identifying C-Pillar Paneling Remove/Install Component - Shown On Model 251.1 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

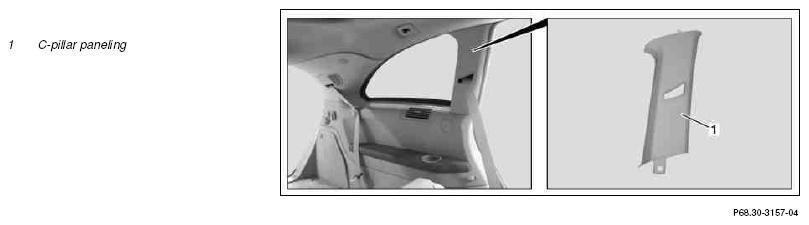

Fig 2: Identifying C-Pillar Paneling Remove/Install Component - Shown On Model 251.1 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove side paneling in trunk	Left or right	AR68.30-P-4800RT
2	Unscrew screw (2) from belt end fitting	Ensure that seat belt does not twist
			*BA91.40-P-1001-01N
3	Unclip C-pillar paneling (1) (arrows A)	Ensure that guide (4) is seated correctly.
		Long wedge	Figure
4	Guide seat belt (3) through opening in C-pillar paneling (1)
5	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 251
BA91.40-P-1001-01N	Screw at belt end fitting	Nm	35

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
