Remove/install paneling on A-pillar - AR68.30-P-4050RT

MODEL 251

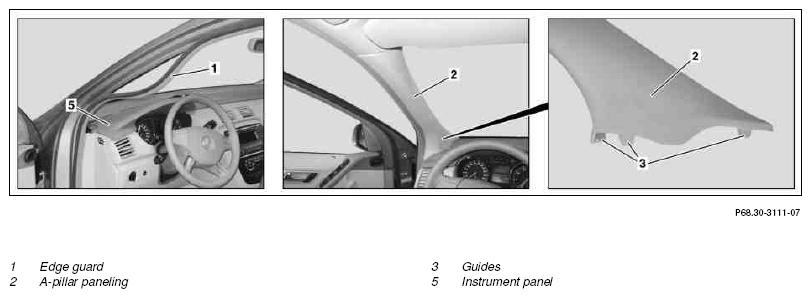

Fig 1: Identifying A-Pillar Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on left A-pillar

Shown on left A-pillar

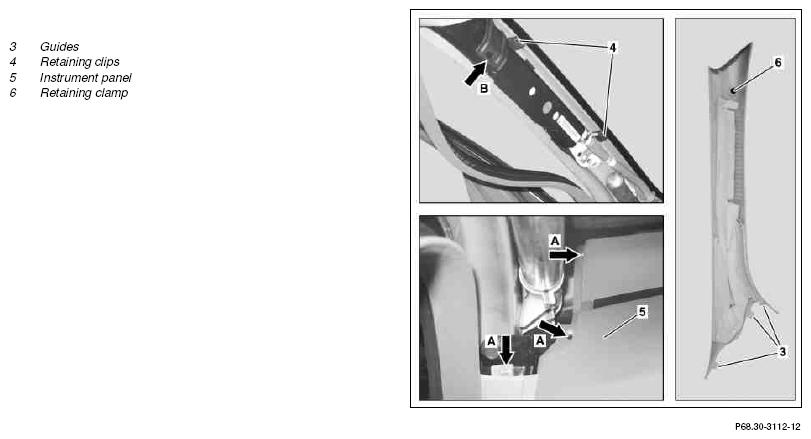

Fig 2: Identifying A-Pillar Paneling Remove/Install Components - Shown On Left A-Pillar

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove edge guard (1) in area of A-pillar paneling (2)	Ensure that edge guard is seated correctly.
2	Press A-pillar paneling (2) off of retaining clips (4) and retaining clip (6) with mounting wedge	Removal:  Position mounting wedge directly to retaining clips (4) Check retaining clips (4), replace if necessary Ensure that retaining clips (4) and retaining clip (6) (arrow B) are seated correctly.
		Mounting wedge	Figure
3	Remove A-pillar paneling (2) upward from instrument panel (5)	Guides (3) should engage in instrument panel (5) (arrows A). Observe installation position of check strap.
4	Install in the reverse order

Fig 3: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
