Remove/install grab handle on roof - AR68.30-P-4330RTA

MODEL 251 Grab handle on roof at rear

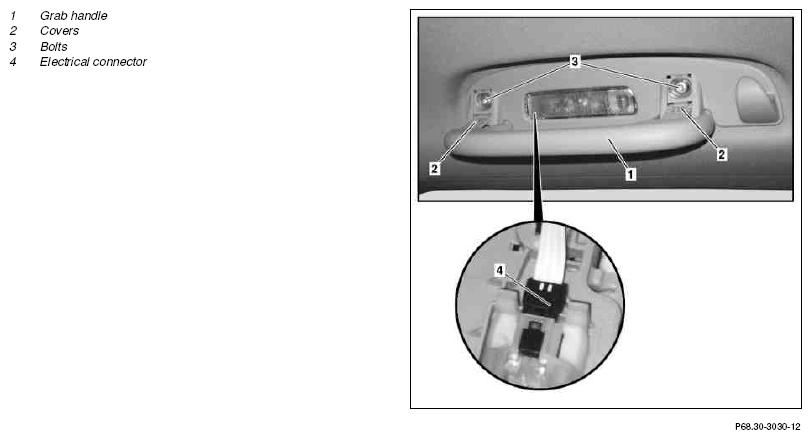

Fig 1: Identifying Grab Handle On Roof Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Fold down grab handle (1)
2	Open covers (2) with suitable tool
3	Remove bolts (3)
4	Disconnect electrical connector (4)	Treat ribbon cable carefully to prevent damage
5	Remove grab handle (1)
6	Install in the reverse order
