Remove/install grab handle on roof - AR68.30-P-4330RT

MODEL 251 Grab handle on roof at front

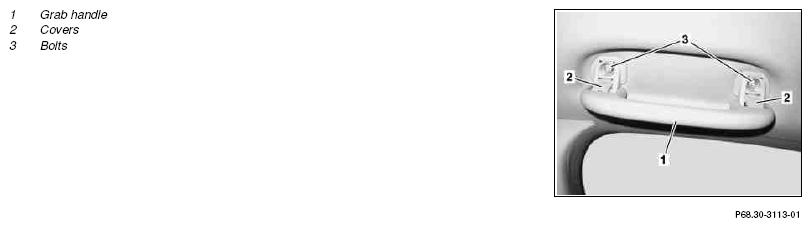

Fig 1: Identifying Roof Grab Handle Remove/Install Components
G10121961Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/Install
1 Fold down grab handle (1)
2 Open covers (2) with suitable tool
3 Remove bolts (3)
4 Remove grab handle (1)
5 Install in the reverse order
