Wiring diagram of Telematics CAN bus - PE82.00-U-2720-99RAA

Code	Designation	Position
A40/4	DVD player	6 L
A40/5	Left rear display	2 L
A40/6	Right rear display	3 L
U895	Valid for rear audio	1 D
W17/1	Ground (left rear seat)	10 H
W17/1	Ground (left rear seat)	12 H
X30/35	Telematics CAN voltage distributor connector	4 A
X30/35	Telematics CAN voltage distributor connector	12 A
X30/35	Telematics CAN voltage distributor connector	20 A
X55/3	Left front seat contacting strip	1 H
X55/4	Right front seat contacting strip	3 H
Z204/6	Circuit 31 left rear seat voltage distributor connector (1)	10 L
Z204/6	Circuit 31 left rear seat voltage distributor connector (1)	12 L
Z53/28	Telematics circuit 31 interior solder point 2	12 E

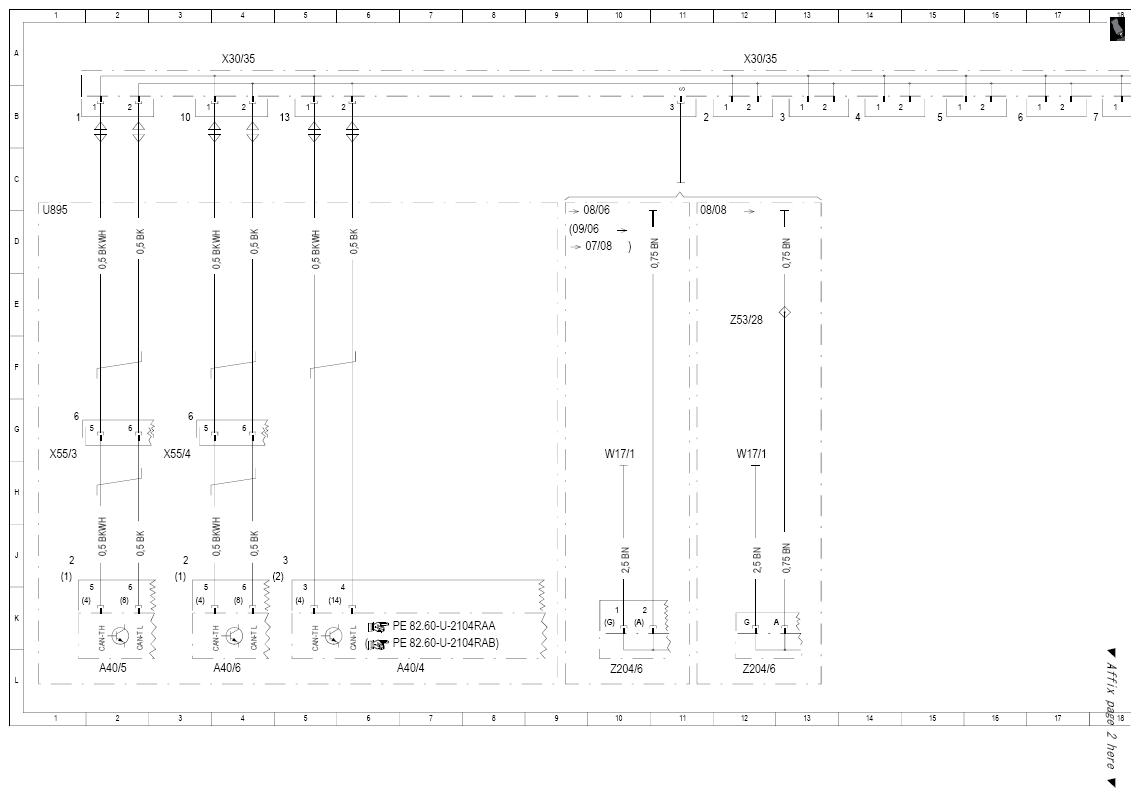

Fig 1: Telematics CAN Bus - Wiring Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

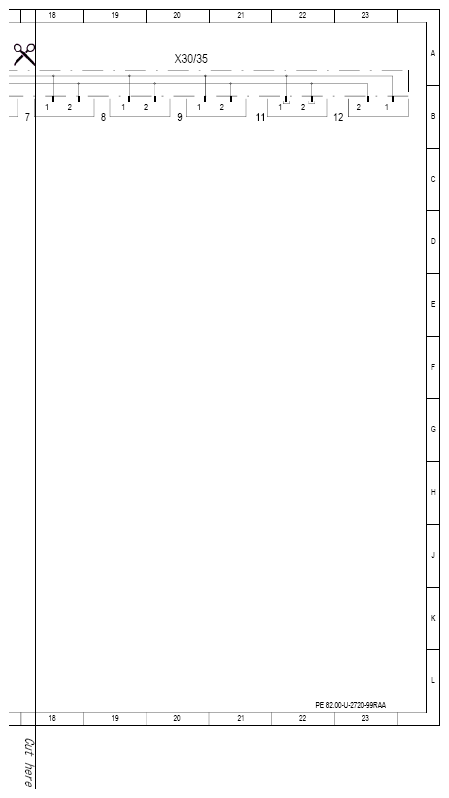

Fig 2: Telematics CAN Bus - Wiring Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
