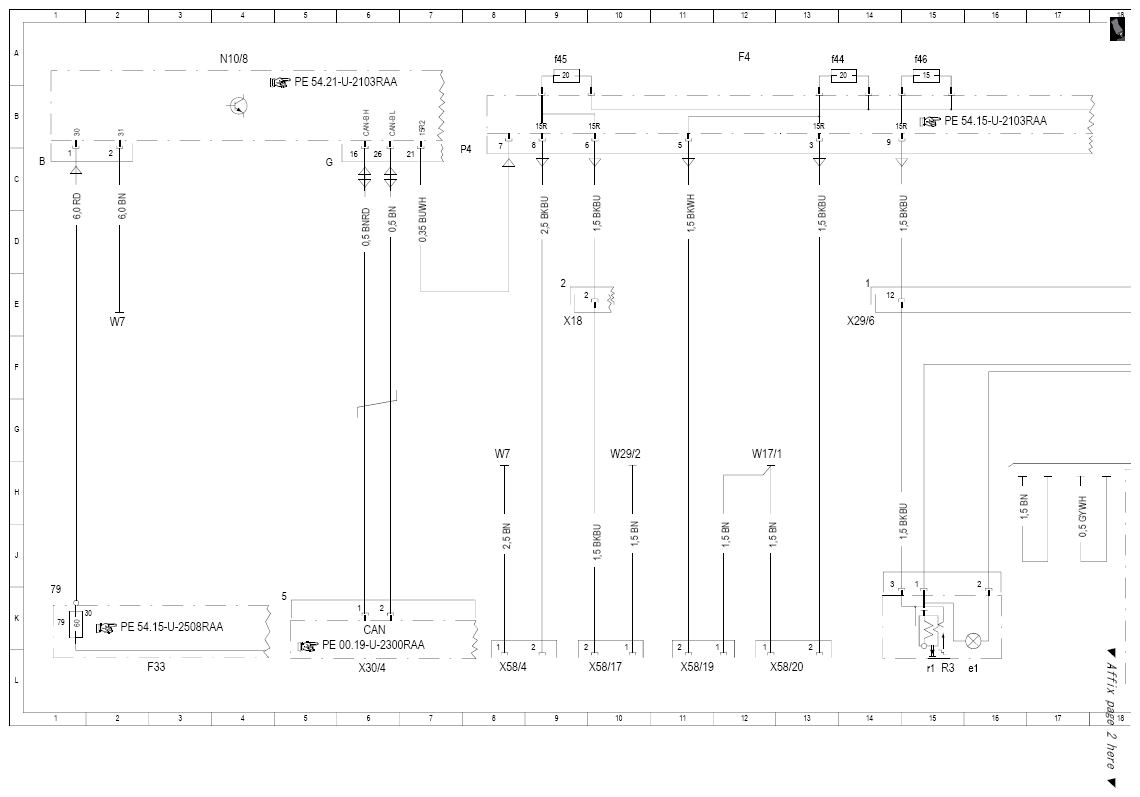

| F33 |
Battery compartment prefuse box |
2 L |
| F33f79 |
Fuse 79 |
1 K |
| F4 |
Load compartment fuse and relay box |
12 A |
| F4f44 |
Fuse 44 |
13 A |
| F4f45 |
Fuse 45 |
9 A |
| F4f46 |
Fuse 46 |
15 A |

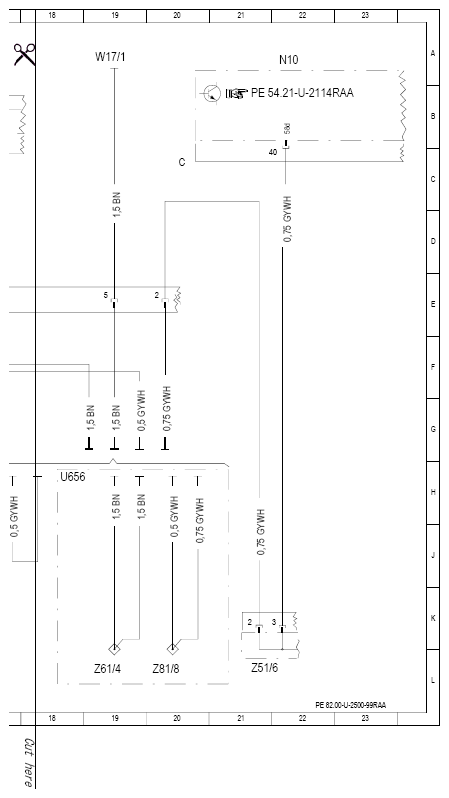

| N10 |
Front SAM control unit |
22 A |
| N10/8 |
Rear SAM control unit |
4 A |
| R3 |
Front cigar lighter (with ashtray illumination) |
15 L |
| R3e1 |
Illumination |
15 L |
| R3r1 |
Heating element |
15 L |
| U656 |
Valid for interior light package |
18 H |
| W17/1 |
Ground (left rear seat) |
12 H |
| W17/1 |
Ground (left rear seat) |
19 A |
| W29/2 |
Ground (right A-pillar) |
10 H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2 E |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8 H |
| X18 |
Interior/cockpit connector |
9 E |
| X29/6 |
Center console intermediate connector |
14 E |
| X30/4 |
Right voltage distributor (CAN) connector |
6 L |
| X58/17 |
Front interior socket |
9 L |
| X58/19 |
Left 2nd seat row socket |
11 L |
| X58/20 |
Right 2nd seat row socket |
12 L |
| X58/4 |
Load compartment socket |
8 L |
| Z51/6 |
Circuit 58d interior connector sleeve |
21 L |
| Z61/4 |
Front center console circuit 31 connector sleeve |
19 L |
| Z81/8 |
Front center console circuit 58d connector sleeve |
20 L |
