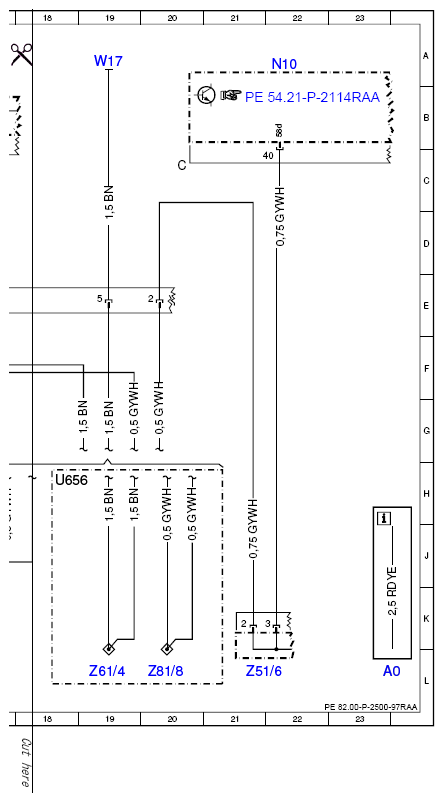

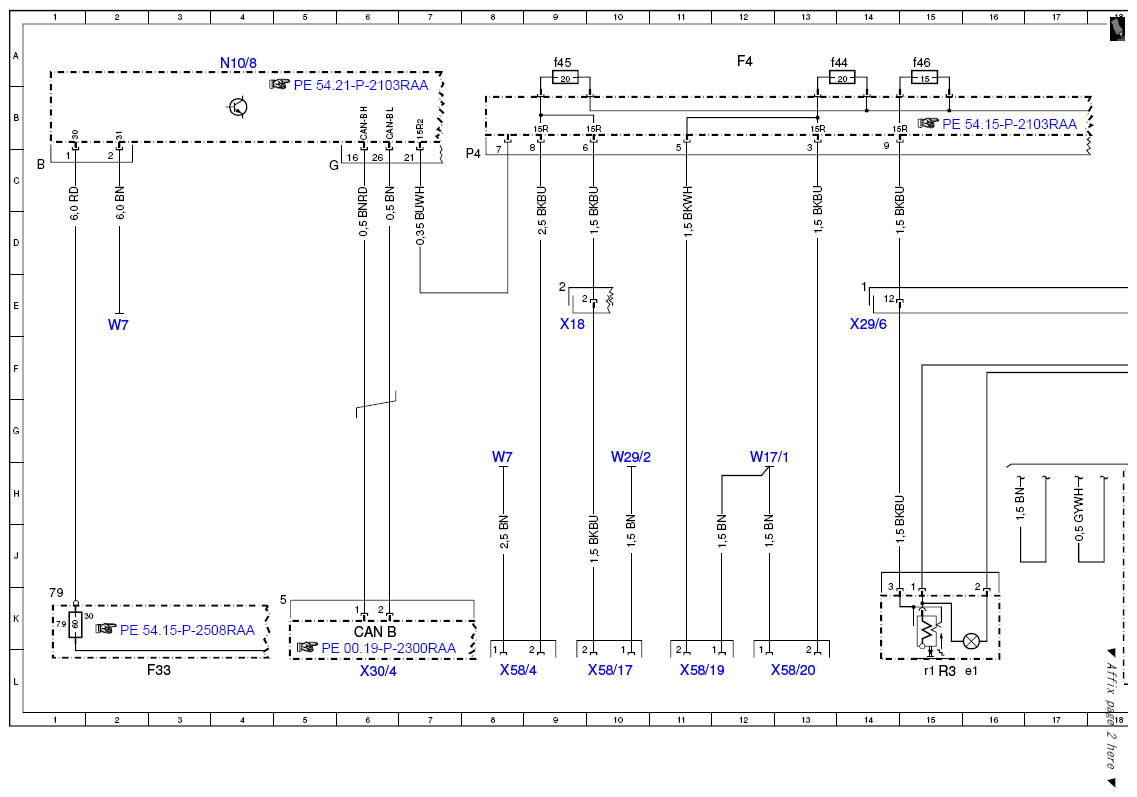

| A0 |
Color code key |
23L |
| CAN B |
Interior CAN |
6K |
| F33 |
Battery compartment prefuse box |
3L |
| F33f79 |
Fuse 79 |
1K |
| F4 |
Load compartment fuse and relay box |
12A |
| F4f44 |
Fuse 44 |
14A |
| F4f45 |
Fuse 45 |
9A |
| F4f46 |
Fuse 46 |
15A |
| N10 |
Front SAM control unit |
22A |
| N10/8 |
Rear SAM control unit |
4A |
| R3 |
Front cigar lighter (with ashtray illumination) |
15L |
| R3e1 |
Illumination |
16L |
| R3r1 |
Heating element |
15L |
| U656 |
Valid for interior light package |
18H |
| W17 |
Ground (right rear seat) |
19A |
| W17/1 |
Ground (left rear seat) |
12H |
| W29/2 |
Ground (right A-pillar) |
10H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
8H |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2E |
| X18 |
Interior/cockpit connector |
9E |
| X29/6 |
Center console intermediate connector |
14E |
| X30/4 |
Right voltage distributor (CAN) connector |
6L |
| X58/17 |
Front interior socket |
10L |
| X58/19 |
Left 2nd seat row socket |
11L |
| X58/20 |
Right 2nd seat row socket |
13L |
| X58/4 |
Load compartment socket |
8L |
| Z51/6 |
Circuit 58d interior connector sleeve |
21L |
| Z61/4 |
Front center console circuit 31 connector sleeve |
19L |
| Z81/8 |
Front center console circuit 58d connector sleeve |
20L |
