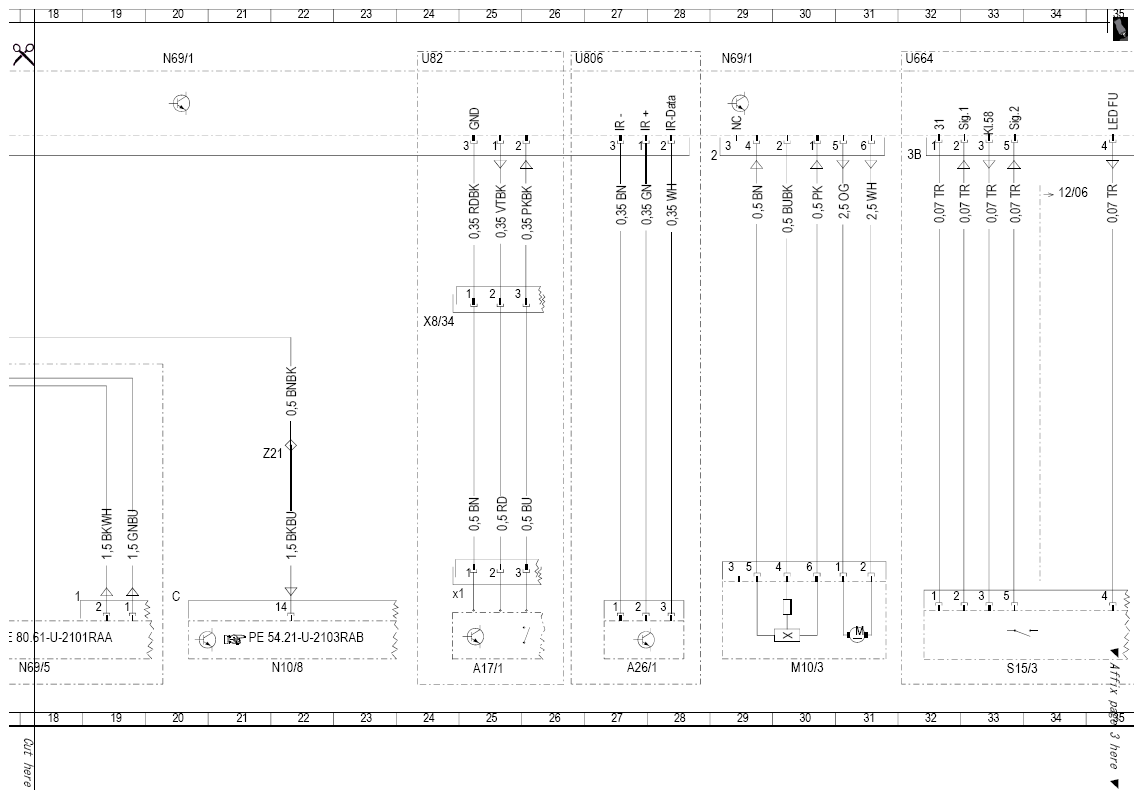

| A17/1 |
Left front KEYLESS GO door handle |
25 L |
| A17/1x1 |
Left front KEYLESS-GO door handle connector |
24 K |
| A26/1 |
Left front IR receiver |
27 L |

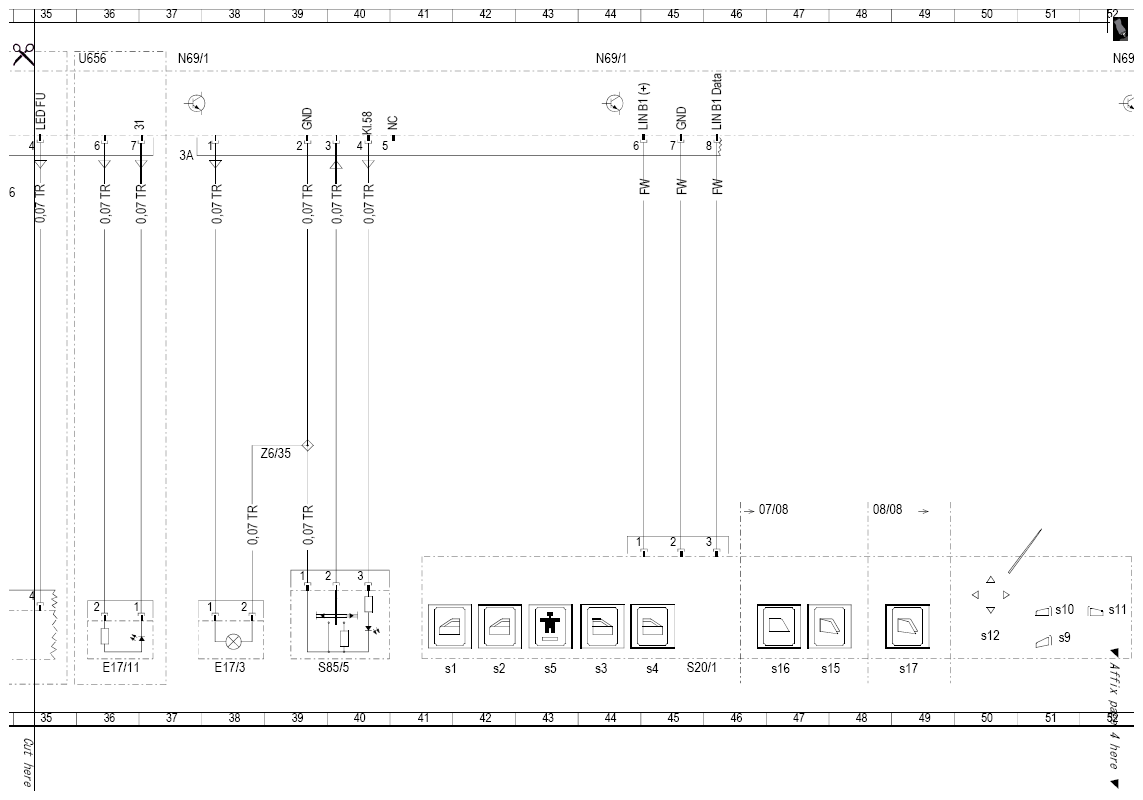

| E17/11 |
Left front door inside handle illumination |
36 L |
| E17/3 |
Left front door entrance/exit lamp |
38 L |

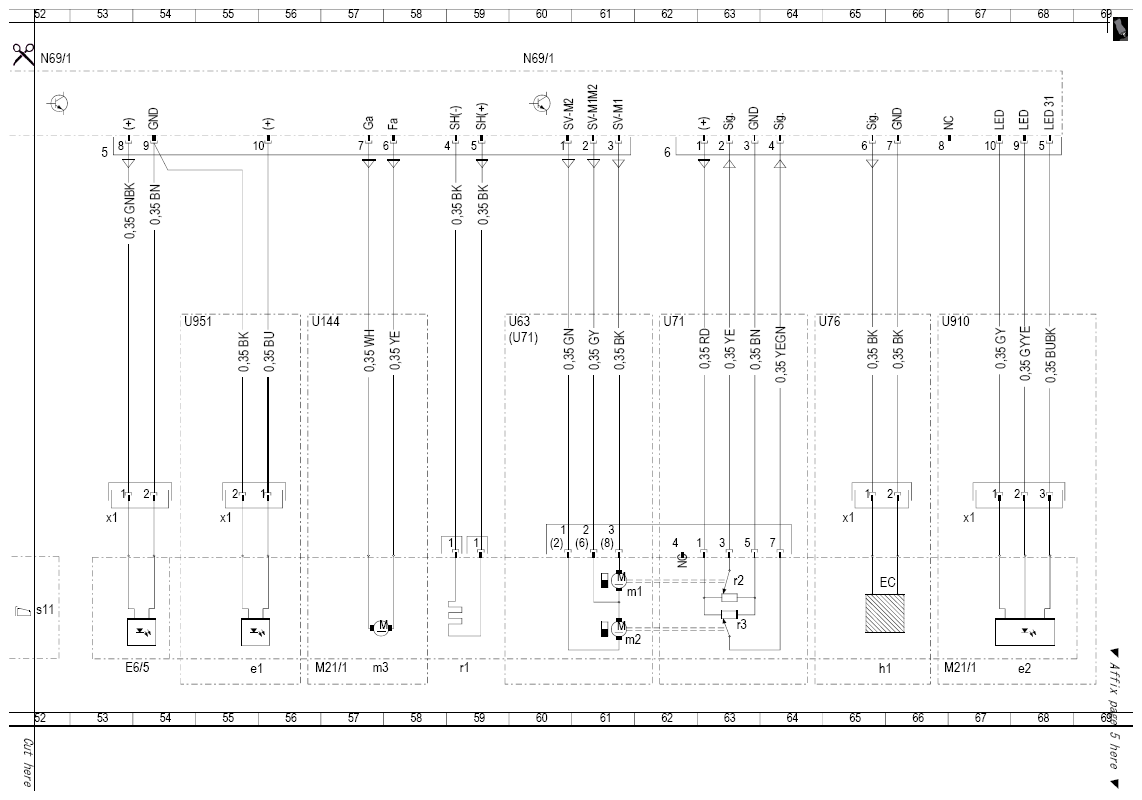

| E6/5 |
Left outside mirror turn signal lamp |
53 L |
| E6/5x1 |
Left outside mirror turn signal lamp electrical connector |
53 J |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f34 |
Fuse 34 |
2 L |
| M10/3 |
Left front power window motor |
30 L |
| M14/6 |
Left front door CL [ZV] motor |
12 L |
| M21/1 |
Left electrically adjustable and heated outside mirror |
56 L |
| M21/1 |
Left electrically adjustable and heated outside mirror |
66 L |
| M21/1e1 |
Left outside mirror ambient lamp |
55 L |
| M21/1e1x1 |
Ambient lamp electrical connector, left outside mirror |
55 J |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
67 L |
| M21/1e2x1 |
Blind Spot Assist warning lamp/left mirror dimming electrical connector |
67 J |
| M21/1h1 |
Automatic dimming mirror |
65 L |
| M21/1h1x1 |
Mirror dimming electrical connector |
65 J |
| M21/1m1 |
Mirror up/down adjustment motor |
61 K |
| M21/1m2 |
Mirror in/out adjustment motor |
61 L |
| M21/1m3 |
Mirror fold-in motor |
57 L |
| M21/1r1 |
Mirror heater |
59 L |
| M21/1r2 |
Mirror up/down adjustment potentiometer |
63 K |
| M21/1r3 |
Mirror in/out adjustment potentiometer |
63 K |
| N10/8 |
Rear SAM control unit |
21 L |

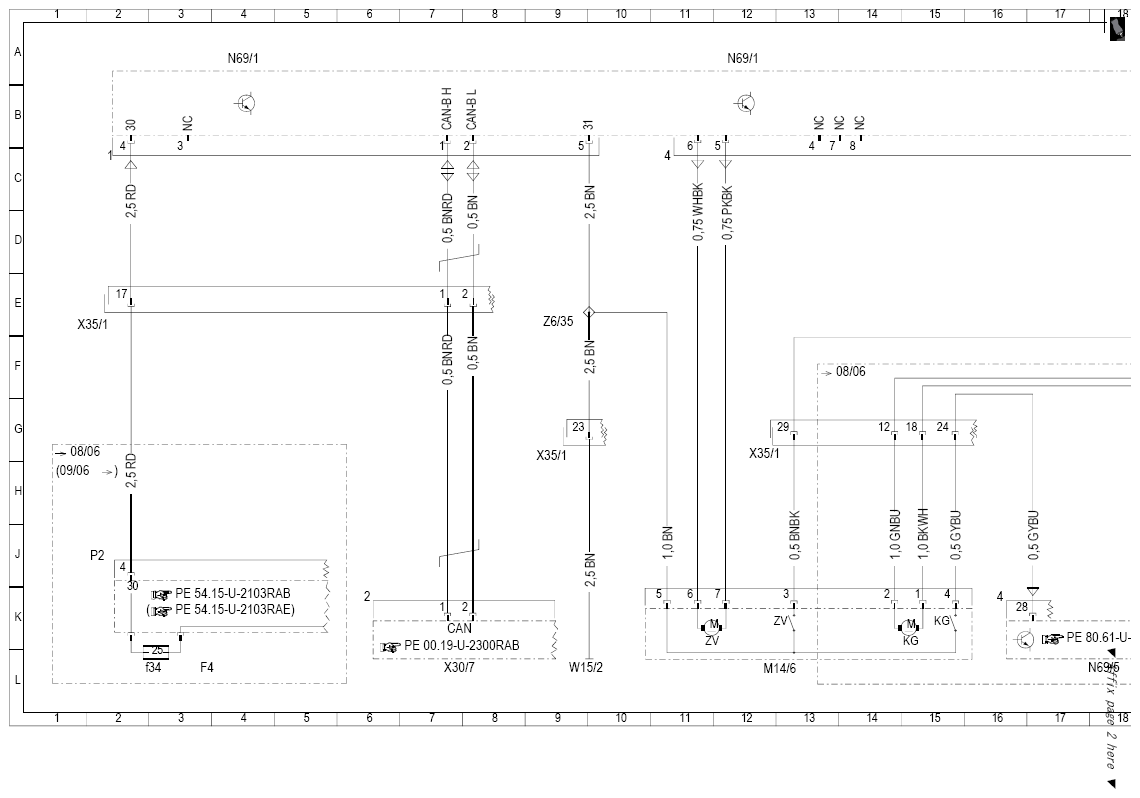

| N69/1 |
Left front door control unit |
4 A |
| N69/1 |
Left front door control unit |
12 A |
| N69/1 |
Left front door control unit |
20 A |
| N69/1 |
Left front door control unit |
29 A |
| N69/1 |
Left front door control unit |
37 A |
| N69/1 |
Left front door control unit |
44 A |
| N69/1 |
Left front door control unit |
52 A |
| N69/1 |
Left front door control unit |
60 A |
| N69/5 |
KEYLESS-GO control unit |
17 L |
| S15/3 |
Rear-end door open/close switch, driver |
33 L |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
45 L |
| S20/1s1 |
Left front power window switch |
41 L |
| S20/1s10 |
Left outside mirror adjustment selection switch |
51 K |
| S20/1s11 |
Right outside mirror adjustment selection switch |
52 K |
| S20/1s12 |
Outside mirror adjustment rocker switch |
50 L |
| S20/1s15 |
Open vent window switch |
47 L |
| S20/1s16 |
Close vent window switch |
47 L |
| S20/1s17 |
Vent window switch |
49 L |
| S20/1s2 |
Right front power window switch |
42 L |
| S20/1s3 |
Left rear power window switch |
44 L |
| S20/1s4 |
Right rear power window switch |
45 L |
| S20/1s5 |
Rear side windows child safety lock switch |
43 L |
| S20/1s9 |
Outside mirror fold-in/fold-out switch |
51 L |
| S85/5 |
Left interior CL [ZV] switch |
39 L |
| U144 |
Valid for fold-out mirrors |
56 E |
| U63 |
Valid for seat adjustment without memory |
59 E |
| U656 |
Valid for interior light package |
35 A |
| U664 |
Valid for automatic rear-end door |
32 A |
| U71 |
Valid for seat adjustment with memory |
59 F |
| U71 |
Valid for seat adjustment with memory |
62 E |
| U76 |
Valid for automatic dimming mirror |
64 E |
| U806 |
Valid for IR remote control |
26 A |
| U82 |
Valid for KEYLESS GO |
24 A |
| U910 |
Valid for Blind Spot Assist |
66 E |
| U951 |
Valid for ambient lamps |
54 E |
| W15/2 |
Ground (left footwell) |
9 L |
| X30/7 |
Voltage distributor (CAN) connector |
7 L |
| X35/1 |
Left front door separation point |
1 F |
| X35/1 |
Left front door separation point |
9 H |
| X35/1 |
Left front door separation point |
12 H |
| X8/34 |
Left front door handle connector |
24 E |
| Z21 |
Front rotary tumbler switch connector sleeve |
21 H |
| Z6/35 |
Left front door ground connector sleeve |
9 E |
| Z6/35 |
Left front door ground connector sleeve |
38 H |
