| 1 |
Circuit 15, status |
7 J |
| 1 |
Circuit 15, status |
7 B |
| 1 |
Circuit 15, status |
7 F |
| 1 |
Circuit 15, status |
16 F |
| 2 |
Door contact switch, status |
3 C |
| 2 |
Door contact switch, status |
5 J |
| 2 |
Door contact switch, status |
6 E |
| 2 |
Door contact switch, status |
17 E |
| 3 |
Power window switch, status |
5 K |
| 3 |
Power window switch, status |
7 G |
| 3 |
Power window switch, status |
18 F |
| 4 |
Power window motor, request |
6 H |
| 4 |
Power window motor, request |
17 H |
| 5 |
Power window motor, actuation |
3 J |
| 5 |
Power window motor, actuation |
7 E |
| 5 |
Power window motor, actuation |
19 F |
| 6 |
Power window motor, signal |
5 J |
| 6 |
Power window motor, signal |
7 E |
| 6 |
Power window motor, signal |
18 F |
| 7 |
Vent window obstruction sensor strip, status |
4 B |
| 8 |
Vent window motor, request |
4 D |
| 9 |
Vent window motor, actuation |
3 A |
| A8/1 |
Transmitter key |
13 F |
| B51/5 |
Left vent window obstruction sensor strip |
2 B |
| B51/6 |
Right vent window obstruction sensor strip |
2 B |
| CAN B |
Interior CAN |
4 F |
| CAN B |
Interior CAN |
5 D |
| CAN B |
Interior CAN |
6 H |
| CAN B |
Interior CAN |
9 F |
| CAN B |
Interior CAN |
9 J |
| CAN B |
Interior CAN |
9 C |
| CAN B |
Interior CAN |
12 B |
| CAN B |
Interior CAN |
12 K |
| CAN B |
Interior CAN |
14 F |
| Code 414 |
Electric glass tilting/sliding roof |
1 A |
| LIN B1 |
Front door LIN |
3 K |
| M10/3 |
Left front power window motor |
2 H |

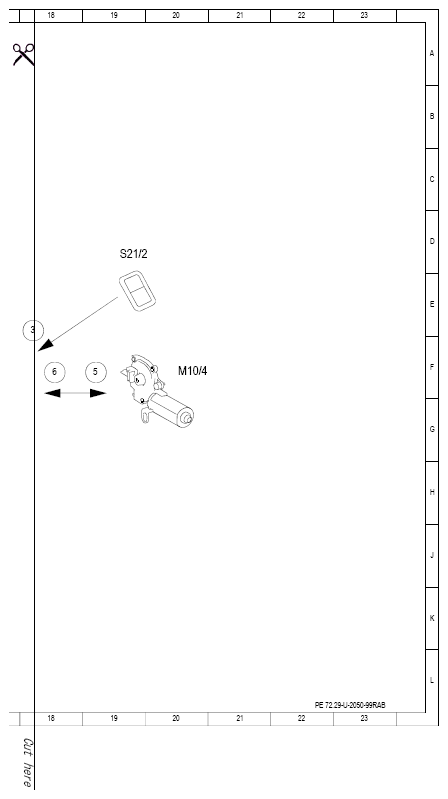

| M10/4 |
Right front power window motor |
20 F |
| M10/5 |
Left rear power window motor |
9 D |
| M10/6 |
Right rear power window motor |
9 D |
| M14/5s1 |
Right front door rotary tumbler microswitch |
2 D |
| M14/6s1 |
Left front door rotary tumbler microswitch |
2 D |
| M21/8 |
Left vent window motor |
2 A |
| M21/9 |
Right vent window motor |
2 B |

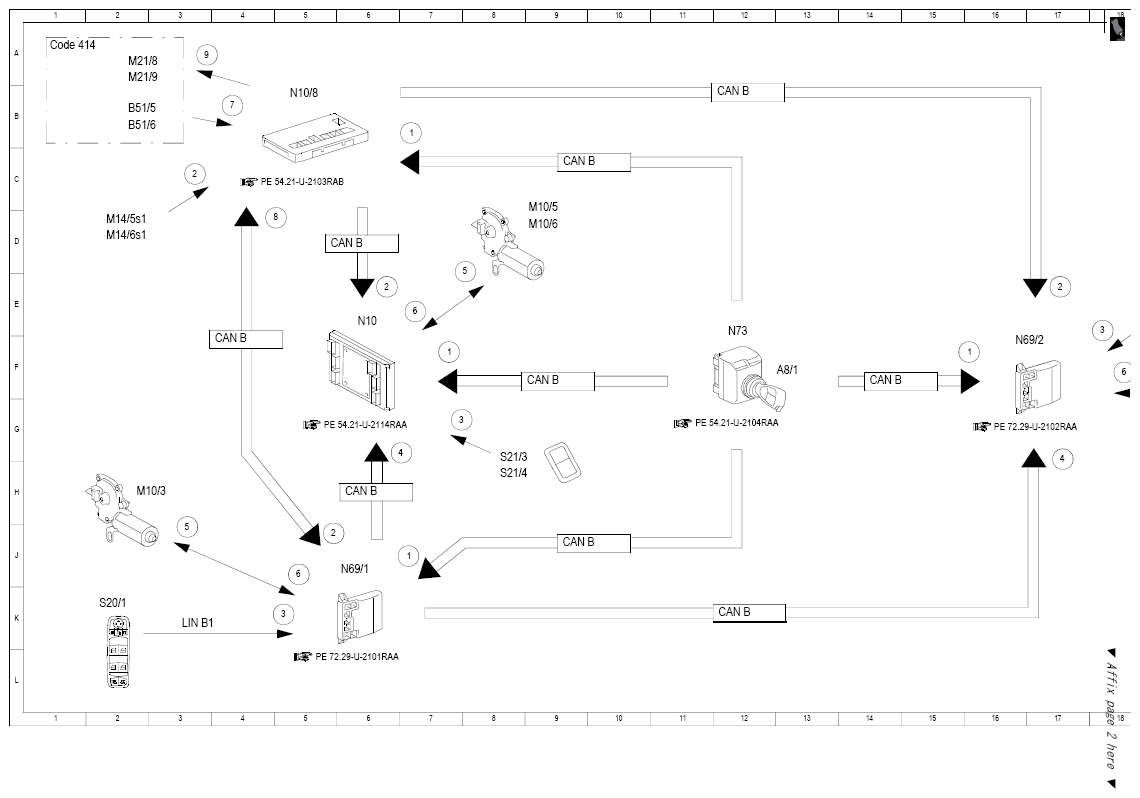

| N10 |
Front SAM control unit |
6 E |
| N10/8 |
Rear SAM control unit |
5 B |
| N69/1 |
Left front door control unit |
6 J |
| N69/2 |
Right front door control unit |
16 F |
| N73 |
EIS [EZS] control unit |
12 F |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
2 K |
| S21/2 |
Front passenger power window switch |
19 D |
| S21/3 |
Left rear power window switch |
8 H |
| S21/4 |
Right rear power window switch |
8 H |
