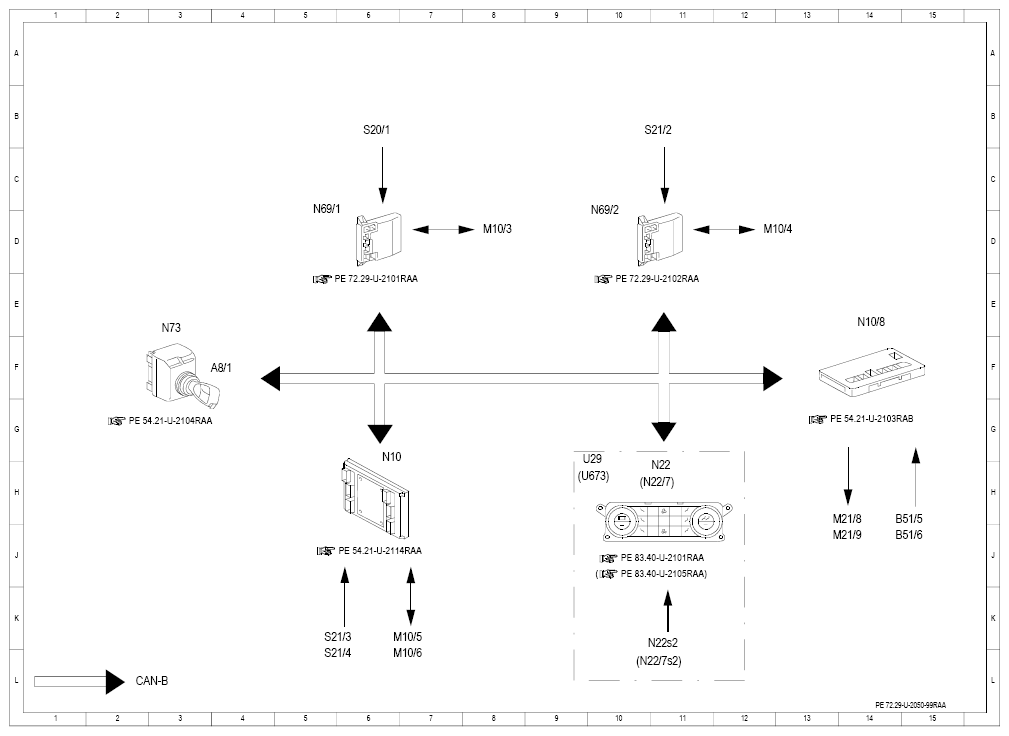

| A8/1 |
Transmitter key |
3 F |
| B51/5 |
Left vent window obstruction sensor strip |
14 J |
| B51/6 |
Right vent window obstruction sensor strip |
14 J |
| M10/3 |
Left front power window motor |
8 D |
| M10/4 |
Right front power window motor |
12 D |
| M10/5 |
Left rear power window motor |
6 K |
| M10/6 |
Right rear power window motor |
6 L |
| M21/8 |
Left vent window motor |
13 J |
| M21/9 |
Right vent window motor |
13 J |
| N10 |
Front SAM control unit |
6 H |
| N10/8 |
Rear SAM control unit |
14 E |
| N22 |
AAC [KLA] control and operating unit |
10 H |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
10 H |
| N22/7s2 |
Air recirculation switch |
10 L |
| N22s2 |
Air recirculation switch |
10 L |
| N69/1 |
Left front door control unit |
5 D |
| N69/2 |
Right front door control unit |
10 D |
| N73 |
EIS [EZS] control unit |
3 F |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
6 B |
| S21/2 |
Front passenger power window switch |
10 B |
| S21/3 |
Left rear power window switch |
5 K |
| S21/4 |
Right rear power window switch |
5 L |
| U29 |
Valid for AAC [KLA] |
9 H |
| U673 |
Valid for comfort AAC [K-KLA] |
9 H |
