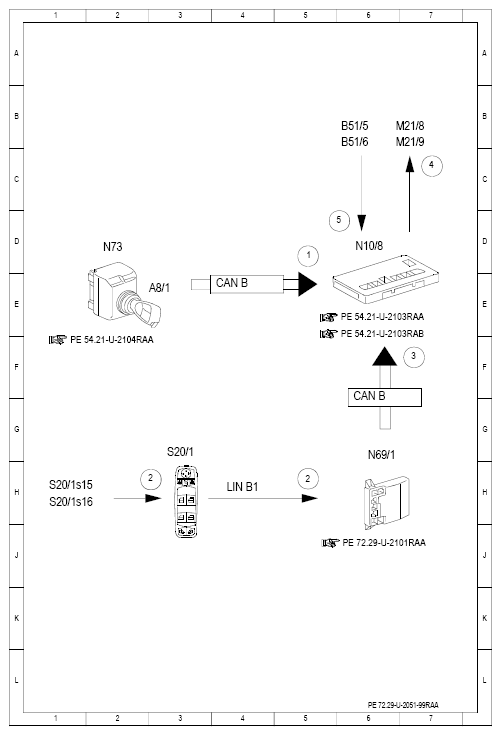

| 1 |
Circuit 15, status |
5 D |
| 2 |
Vent window switch, status |
2 H |
| 2 |
Vent window switch, status |
5 H |
| 3 |
Vent window motor, request |
7 F |
| 4 |
Vent window motor, actuation |
7 C |
| 5 |
Vent window obstruction sensor strip, status |
5 D |
| A8/1 |
Transmitter key |
2 E |
| B51/5 |
Left vent window obstruction sensor strip |
6 B |
| B51/6 |
Right vent window obstruction sensor strip |
6 C |
| CAN B |
Interior CAN |
4 E |
| CAN B |
Interior CAN |
6 G |
| LIN B1 |
Front door LIN |
4 H |
| M21/8 |
Left vent window motor |
6 B |
| M21/9 |
Right vent window motor |
6 C |
| N10/8 |
Rear SAM control unit |
6 D |
| N69/1 |
Left front door control unit |
6 H |
| N73 |
EIS [EZS] control unit |
2 D |
| S20/1 |
Power window and outside mirror adjustment switch group, driver |
3 H |
| S20/1s15 |
Open vent window switch |
1 H |
| S20/1s16 |
Close vent window switch |
1 H |
