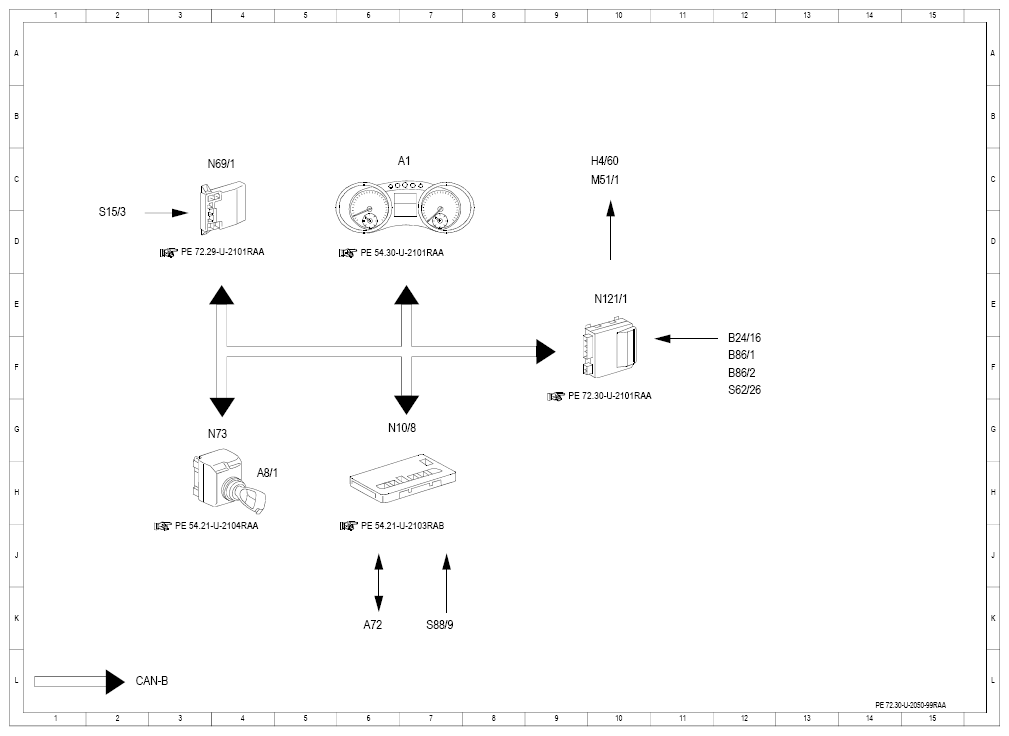

| A1 |
Instrument cluster |
6 C |
| A72 |
Rear door locking unit |
6 K |
| A8/1 |
Transmitter key |
4 H |
| B24/16 |
Rear-end door opening angle recognition sensor |
12 F |
| B86/1 |
Left rear-end door closing obstruction sensor strip |
12 F |
| B86/2 |
Right rear-end door closing obstruction sensor strip |
12 F |
| H4/60 |
Rear-end door closing warning buzzer |
10 C |
| M51/1 |
Rear-end door hydraulic pump |
10 C |
| N10/8 |
Rear SAM control unit |
6 G |
| N121/1 |
Rear-end door closing control unit |
10 E |
| N69/1 |
Left front door control unit |
3 C |
| N73 |
EIS [EZS] control unit |
3 G |
| S15/3 |
Rear-end door open/close switch, driver |
2 D |
| S62/26 |
RWTS button |
12 G |
| S88/9 |
Rear-end door handle switch |
7 K |
