| A17/1 |
Left front KEYLESS GO door handle |
11 L |
| A17/1x1 |
Left front KEYLESS-GO door handle connector |
11 K |
| A17/2 |
Right front KEYLESS GO door handle |
13 L |
| A17/2x1 |
Right front KEYLESS-GO door handle connector |
12 K |
| A17/3 |
Left rear KEYLESS GO door handle |
15 L |
| A17/3x1 |
Left rear KEYLESS-GO door handle connector |
14 K |

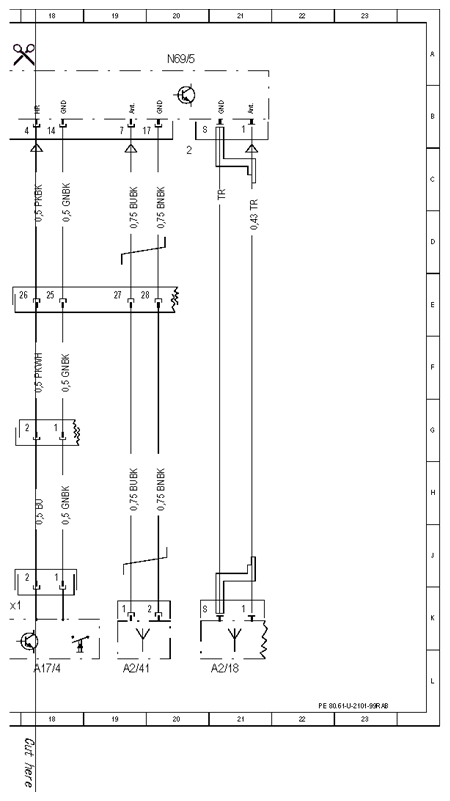

| A17/4 |
Right rear KEYLESS GO door handle |
18 L |
| A17/4x1 |
Right rear KEYLESS-GO door handle connector |
17 K |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
21 L |
| A2/39 |
Left rear door KEYLESS-GO antenna |
16 L |
| A2/41 |
Right rear door KEYLESS-GO antenna |
19 L |
| A2/60 |
Cockpit KEYLESS-GO antenna |
8 L |
| A2/61 |
Interior KEYLESS GO antenna |
9 L |
| CAN B |
Interior CAN |
6 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f33 |
Fuse 33 |
2 L |

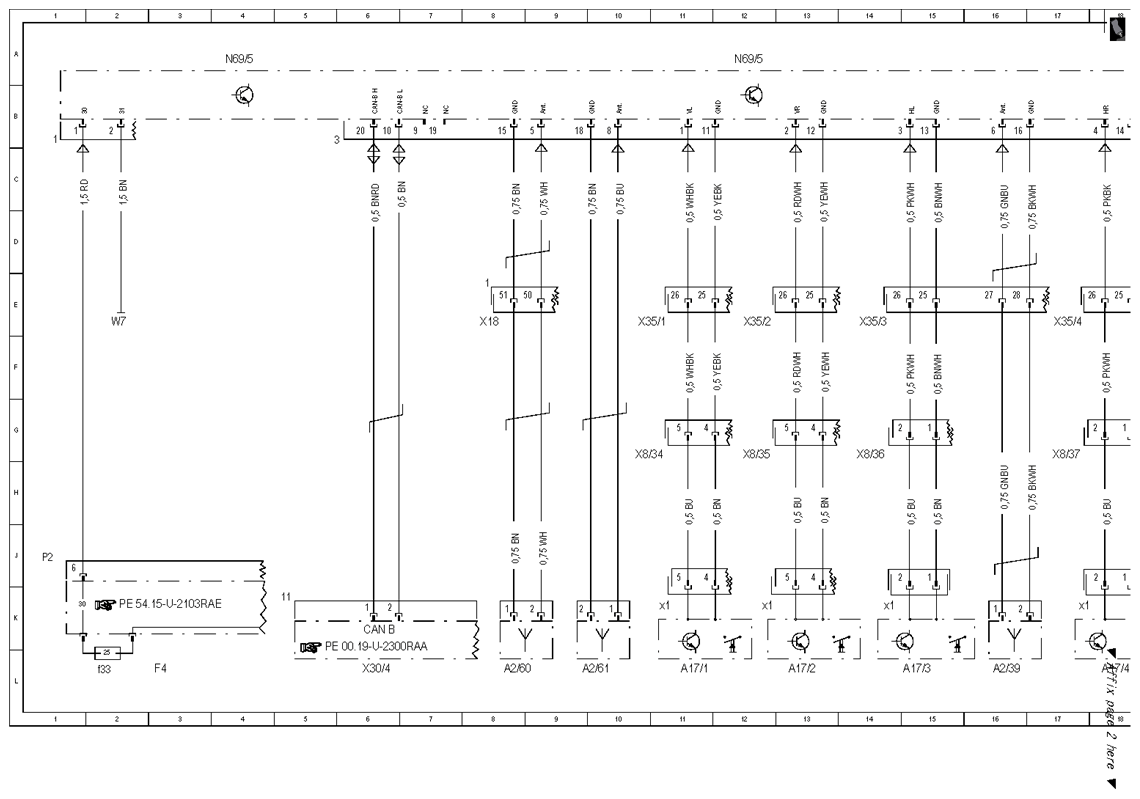

| N69/5 |
KEYLESS-GO control unit |
4 A |
| N69/5 |
KEYLESS-GO control unit |
12 A |
| N69/5 |
KEYLESS-GO control unit |
20 A |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2 E |
| X18 |
Interior/cockpit connector |
8 E |
| X30/4 |
Right voltage distributor (CAN) connector |
6 L |
| X35/1 |
Left front door separation point |
10 E |
| X35/2 |
Right front door separation point |
12 E |
| X35/3 |
Left rear door separation point |
14 E |
| X35/4 |
Right rear door separation point |
17 E |
| X8/34 |
Left front door handle connector |
10 H |
| X8/35 |
Right front door handle connector |
12 H |
| X8/36 |
Left rear door handle connector |
14 H |
| X8/37 |
Right rear door handle connector |
17 H |
