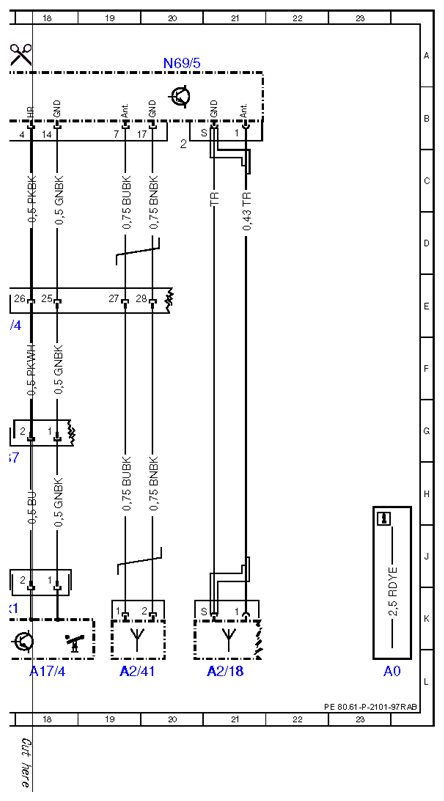

| A0 |
Color code key |
23L |
| A17/1 |
Left front KEYLESS GO door handle |
11L |
| A17/1x1 |
Left front KEYLESS-GO door handle connector |
11K |
| A17/2 |
Right front KEYLESS GO door handle |
13L |
| A17/2x1 |
Right front KEYLESS-GO door handle connector |
12K |
| A17/3 |
Left rear KEYLESS GO door handle |
15L |
| A17/3x1 |
Left rear KEYLESS-GO door handle connector |
14K |
| A17/4 |
Right rear KEYLESS GO door handle |
18L |
| A17/4x1 |
Right rear KEYLESS-GO door handle connector |
17K |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
21L |
| A2/39 |
Left rear door KEYLESS-GO antenna |
16L |
| A2/41 |
Right rear door KEYLESS-GO antenna |
19L |
| A2/60 |
Cockpit KEYLESS-GO antenna |
8L |
| A2/61 |
Interior KEYLESS GO antenna |
10L |
| CAN B |
Interior CAN |
6K |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f33 |
Fuse 33 |
2L |

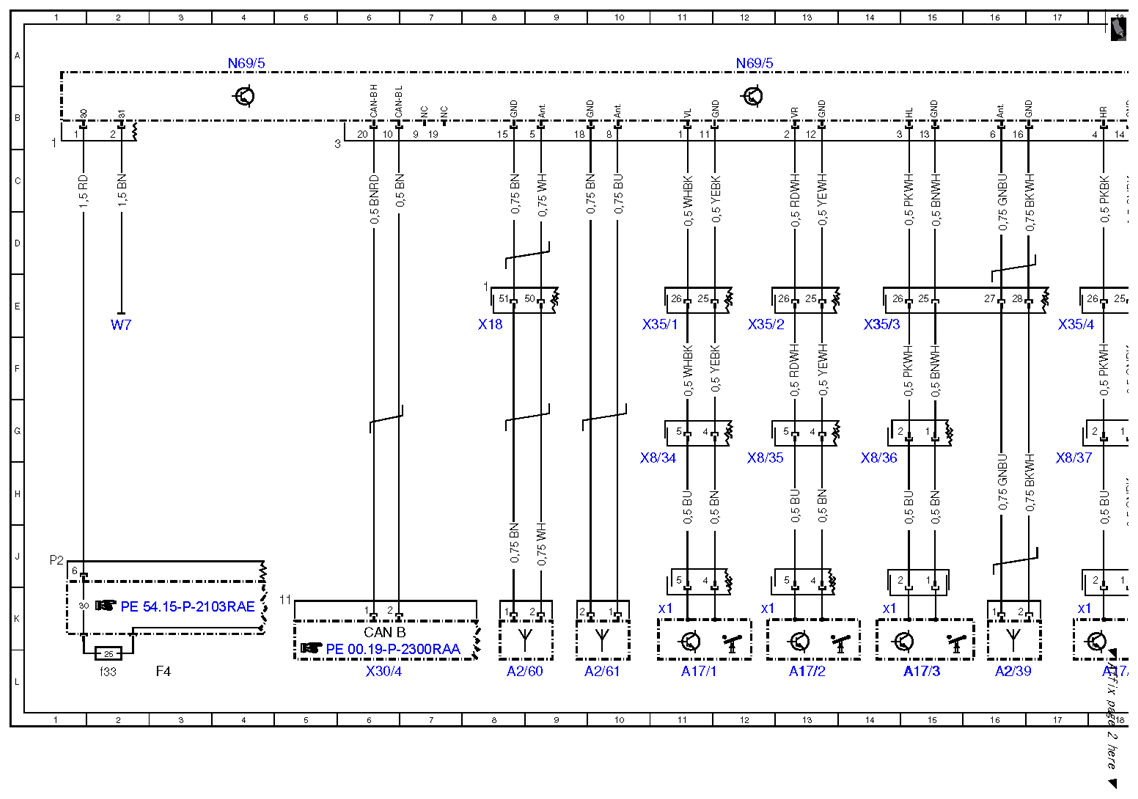

| N69/5 |
KEYLESS-GO control unit |
20A |
| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| W7 |
Ground (right wheelhouse in luggage compartment) |
2E |
| X18 |
Interior/cockpit connector |
8E |
| X30/4 |
Right voltage distributor (CAN) connector |
6L |
| X35/1 |
Left front door separation point |
11E |
| X35/2 |
Right front door separation point |
12E |
| X35/3 |
Left rear door separation point |
14E |
| X35/4 |
Right rear door separation point |
17E |
| X8/34 |
Left front door handle connector |
11H |
| X8/35 |
Right front door handle connector |
12H |
| X8/36 |
Left rear door handle connector |
14H |
| X8/37 |
Right rear door handle connector |
17H |
