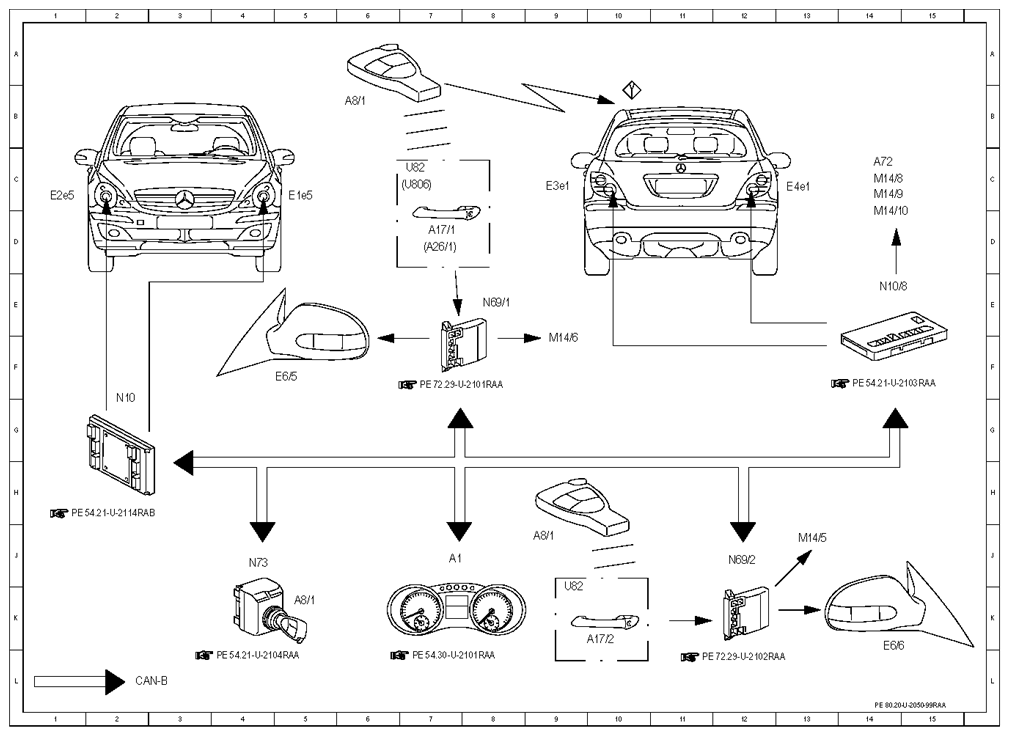

| A1 |
Instrument cluster |
7 J |
| A17/1 |
Left front KEYLESS GO door handle |
7 D |
| A17/2 |
Right front KEYLESS GO door handle |
9 L |
| A26/1 |
Left front IR receiver |
7 D |
| A72 |
Rear door locking unit |
14 C |
| A8/1 |
Transmitter key |
5 K |
| A8/1 |
Transmitter key |
6 B |
| A8/1 |
Transmitter key |
9 J |
| E1e5 |
Left turn signal lamp |
5 C |
| E2e5 |
Right turn signal lamp |
1 C |
| E3e1 |
Left turn signal lamp |
9 C |
| E4e1 |
Right turn signal lamp |
13 C |
| E6/5 |
Left outside mirror turn signal lamp |
5 F |
| E6/6 |
Right outside mirror turn signal lamp |
14 L |
| M14/10 |
Fuel filler flap CL [ZV] motor |
14 D |
| M14/5 |
Right front door CL [ZV] motor |
13 J |
| M14/6 |
Left front door CL [ZV] motor |
9 F |
| M14/8 |
Left rear door CL [ZV] motor |
14 C |
| M14/9 |
Right rear door CL [ZV] motor |
14 C |
| N10 |
Front SAM control unit |
2 G |
| N10/8 |
Rear SAM control unit |
14 E |
| N69/1 |
Left front door control unit |
8 E |
| N69/2 |
Right front door control unit |
12 J |
| N73 |
EIS [EZS] control unit |
4 J |
| U806 |
Valid for IR remote control |
7 C |
| U82 |
Valid for KEYLESS GO |
7 C |
| U82 |
Valid for KEYLESS GO |
9 K |
