Electrical function diagram for central locking system with inside switch, lock and release - PE80.20-U-2053-99RAA

Code: Designation: Position:
1 Lock/unlock central locking, request 3 J
1 Lock/unlock central locking, request 3 B
1 Lock/unlock central locking, request 8 K
1 Lock/unlock central locking, request 11 K
2 Open/close central locking, request 6 K
2 Open/close central locking, request 6 C
2 Open/close central locking, request 6 G
2 Open/close central locking, request 10 G
3 CL [ZV] motor, actuation 2 E
3 CL [ZV] motor, actuation 6 J
3 CL [ZV] motor, actuation 6 B
3 CL [ZV] motor, actuation 8 E
A8/1 Transmitter key 10 J
CAN B Interior CAN 6 K
CAN B Interior CAN 6 H
CAN B Interior CAN 6 C
CAN B Interior CAN 9 H
CAN B Interior CAN 9 C
M14/10 Fuel filler flap CL [ZV] motor 1 F
M14/5 Right front door CL [ZV] motor 7 B
M14/6 Left front door CL [ZV] motor 6 J
M14/8 Left rear door CL [ZV] motor 7 F
M14/9 Right rear door CL [ZV] motor 1 F
N10 Front SAM control unit 10 E
N10/8 Rear SAM control unit 4 E
N69/1 Left front door control unit 4 J
N69/2 Right front door control unit 4 B
N73 EIS [EZS] control unit 9 J
S85/5 Left interior CL [ZV] switch 1 J
S85/6 Right interior CL [ZV] switch 1 B

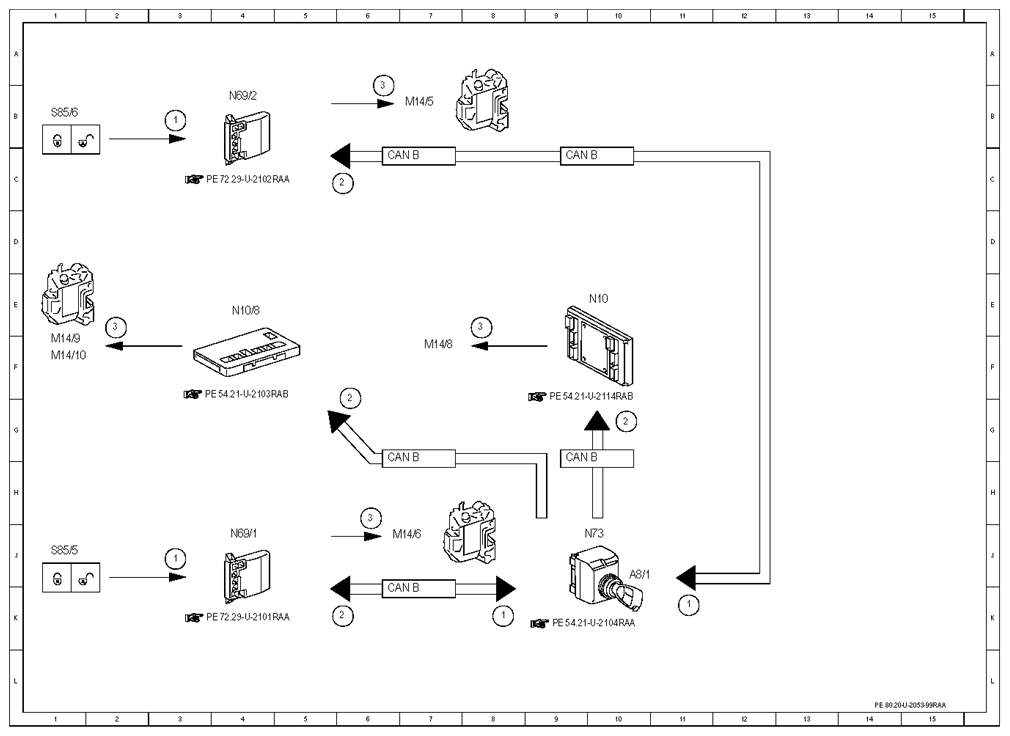

Fig 1: Central Locking System With Inside Switch Electrical Function Diagram
