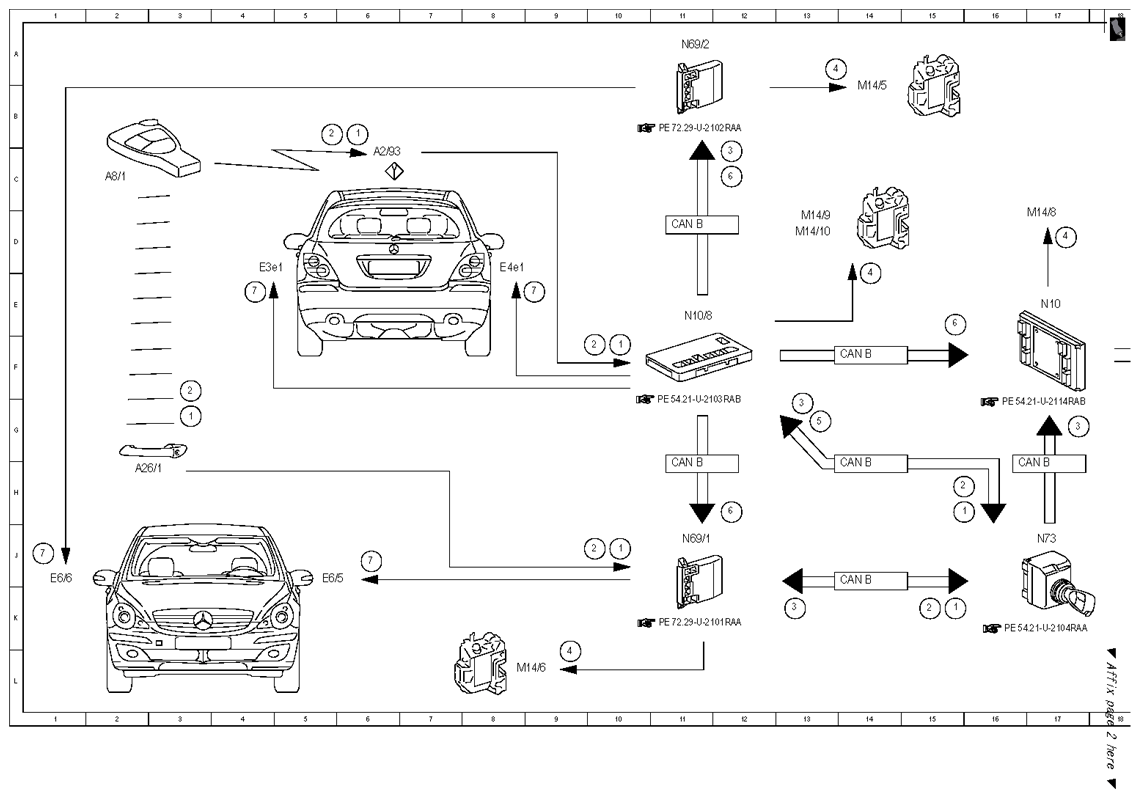

| 1 |
Lock/unlock central locking, request |
3 G |
| 1 |
Lock/unlock central locking, request |
6 B |
| 1 |
Lock/unlock central locking, request |
10 J |
| 1 |
Lock/unlock central locking, request |
10 F |
| 1 |
Lock/unlock central locking, request |
15 K |
| 1 |
Lock/unlock central locking, request |
15 H |
| 2 |
Access authorization code, signal |
3 G |
| 2 |
Access authorization code, signal |
5 B |
| 2 |
Access authorization code, signal |
10 J |
| 2 |
Access authorization code, signal |
10 F |
| 2 |
Access authorization code, signal |
15 K |
| 2 |
Access authorization code, signal |
15 H |
| 3 |
Open/close central locking, request |
12 C |
| 3 |
Open/close central locking, request |
13 K |
| 3 |
Open/close central locking, request |
13 G |
| 3 |
Open/close central locking, request |
17 G |
| 4 |
CL [ZV] motor, actuation |
9 L |
| 4 |
CL [ZV] motor, actuation |
13 A |
| 4 |
CL [ZV] motor, actuation |
14 E |
| 4 |
CL [ZV] motor, actuation |
17 D |
| 5 |
Visual feedback, request |
13 G |
| 6 |
Flasher frequency, signal |
12 H |
| 6 |
Flasher frequency, signal |
12 C |
| 6 |
Flasher frequency, signal |
15 E |
| 7 |
Turn signal lamp, actuation |
1 J |
| 7 |
Turn signal lamp, actuation |
4 E |
| 7 |
Turn signal lamp, actuation |
6 J |
| 7 |
Turn signal lamp, actuation |
9 E |
| 7 |
Turn signal lamp, actuation |
18 K |
| 7 |
Turn signal lamp, actuation |
23 K |
| A2/93 |
Roof antenna module |
6 C |
| A26/1 |
Left front IR receiver |
2 H |
| A8/1 |
Transmitter key |
2 C |
| CAN B |
Interior CAN |
11 H |
| CAN B |
Interior CAN |
11 D |
| CAN B |
Interior CAN |
14 F |
| CAN B |
Interior CAN |
14 K |
| CAN B |
Interior CAN |
14 H |
| CAN B |
Interior CAN |
16 H |

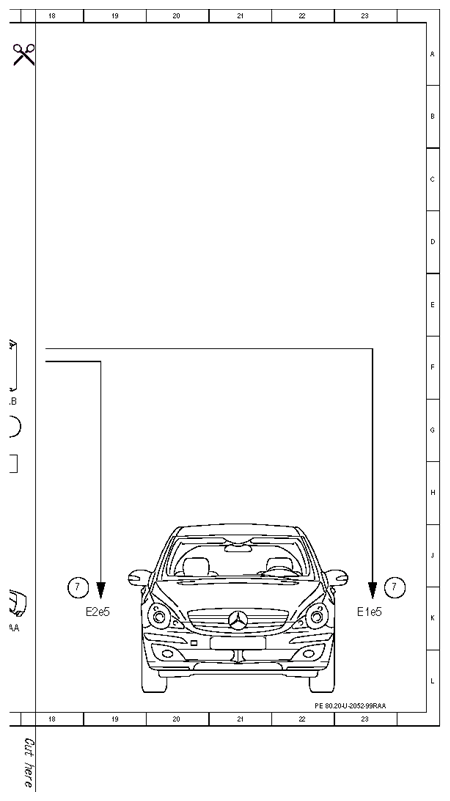

| E1e5 |
Left turn signal lamp |
23 K |
| E2e5 |
Right turn signal lamp |
19 K |
| E3e1 |
Left turn signal lamp |
4 E |
| E4e1 |
Right turn signal lamp |
8 E |
| E6/5 |
Left outside mirror turn signal lamp |
5 K |
| E6/6 |
Right outside mirror turn signal lamp |
1 K |
| M14/10 |
Fuel filler flap CL [ZV] motor |
13 D |
| M14/5 |
Right front door CL [ZV] motor |
14 B |
| M14/6 |
Left front door CL [ZV] motor |
8 L |
| M14/8 |
Left rear door CL [ZV] motor |
16 D |
| M14/9 |
Right rear door CL [ZV] motor |
13 D |
| N10 |
Front SAM control unit |
17 E |
| N10/8 |
Rear SAM control unit |
11 E |
| N69/1 |
Left front door control unit |
11 J |
| N69/2 |
Right front door control unit |
11 A |
| N73 |
EIS [EZS] control unit |
17 J |
