| 1 |
Rear-end door locking unit, status |
9 E |
| 2 |
Door rotary tumbler switch, status |
9 F |
| 3 |
Flasher frequency, signal |
11 H |
| 3 |
Flasher frequency, signal |
11 C |
| 3 |
Flasher frequency, signal |
14 E |
| 3 |
Flasher frequency, signal |
15 H |
| 4 |
Turn signal lamp, actuation |
1 J |
| 4 |
Turn signal lamp, actuation |
2 D |
| 4 |
Turn signal lamp, actuation |
6 J |
| 4 |
Turn signal lamp, actuation |
6 D |
| 4 |
Turn signal lamp, actuation |
17 K |
| 4 |
Turn signal lamp, actuation |
22 K |
| 5 |
Alarm siren, actuation |
13 C |
| 6 |
ATA [EDW] engine hood switch, status |
9 G |
| 7 |
Glass breakage sensor, status |
12 E |
| 8 |
Interior lamp, request |
18 D |
| 9 |
Interior protection sensor, status |
12 E |
| A1 |
Instrument cluster |
15 J |
| A72 |
Rear door locking unit |
7 C |
| CAN B |
Interior CAN |
10 H |
| CAN B |
Interior CAN |
10 C |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
12 H |
| CAN B |
Interior CAN |
12 D |
| CAN B |
Interior CAN |
17 D |
| E1e5 |
Left turn signal lamp |
22 K |
| E2e5 |
Right turn signal lamp |
17 K |
| E3e1 |
Left turn signal lamp |
2 C |
| E3e5 |
Left rear fog lamp |
2 C |
| E3e9 |
Left stop lamp, taillamp, parking lamp and side-marker lamp |
2 D |
| E4e1 |
Right turn signal lamp |
6 C |
| E4e5 |
Right rear fog lamp |
6 C |
| E4e9 |
Right stop lamp, taillamp, parking lamp and side-marker lamp |
6 D |
| E5/1 |
Left front fog lamp |
22 K |
| E5/2 |
Right fog lamp |
17 K |
| E6/5 |
Left outside mirror turn signal lamp |
5 K |
| E6/6 |
Right outside mirror turn signal lamp |
1 K |
| H3 |
Alarm signal horn |
14 A |
| M14/5 |
Right front door CL [ZV] motor |
5 G |
| M14/6 |
Left front door CL [ZV] motor |
5 G |
| M14/8 |
Left rear door CL [ZV] motor |
5 G |
| M14/9 |
Right rear door CL [ZV] motor |
5 H |
| N10 |
Front SAM control unit |
15 E |
| N10/8 |

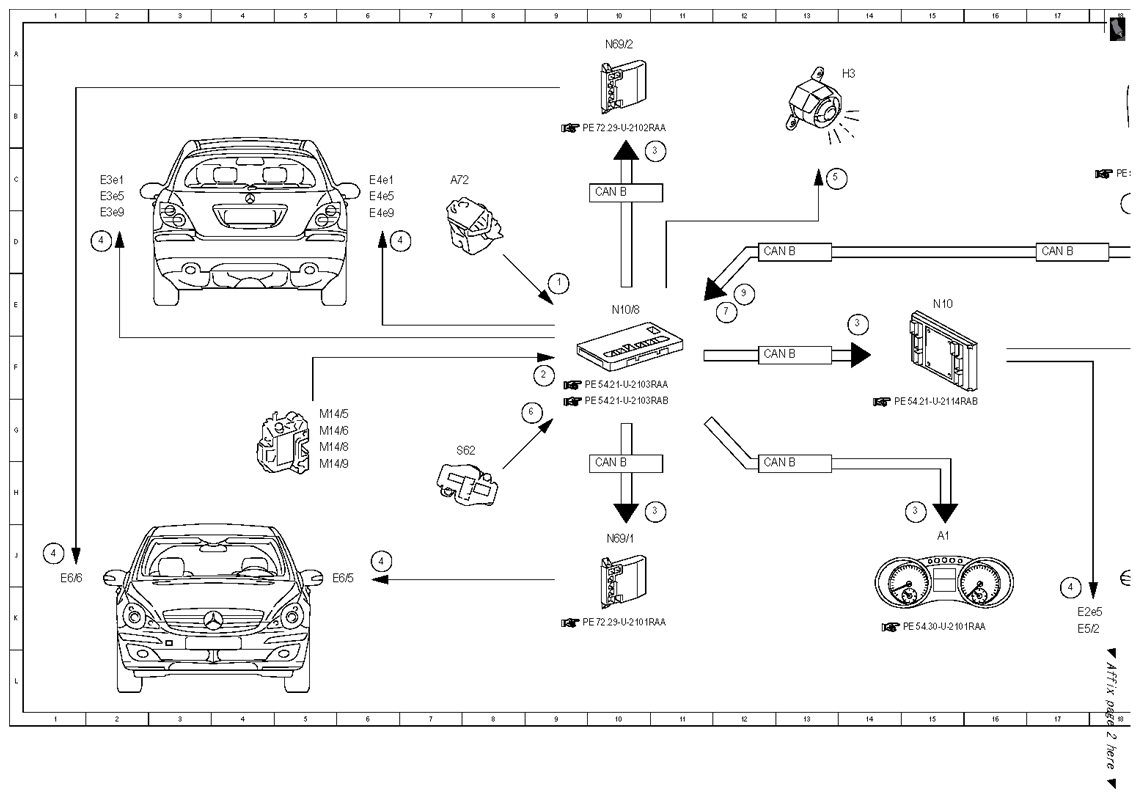

Rear SAM control unit |
10 E |
| N69/1 |
Left front door control unit |
10 J |
| N69/2 |
Right front door control unit |
10 A |
| N70 |

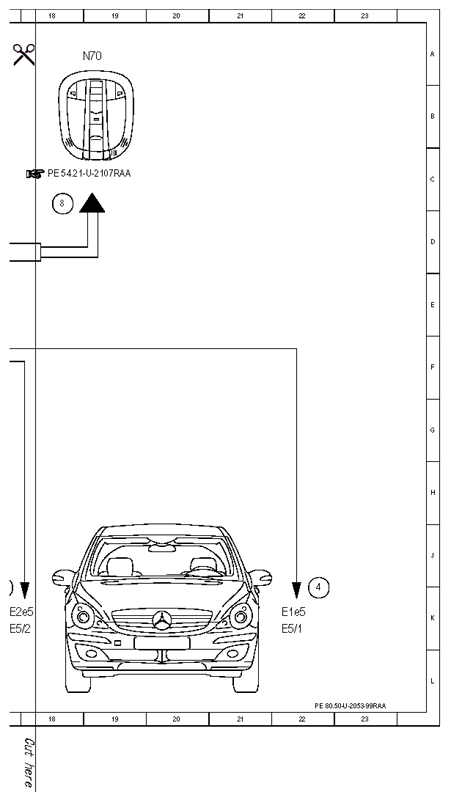

Overhead control panel control unit |
18 A |
| S62 |
ATA [EDW] hood switch |
7 G |
