| 1 |

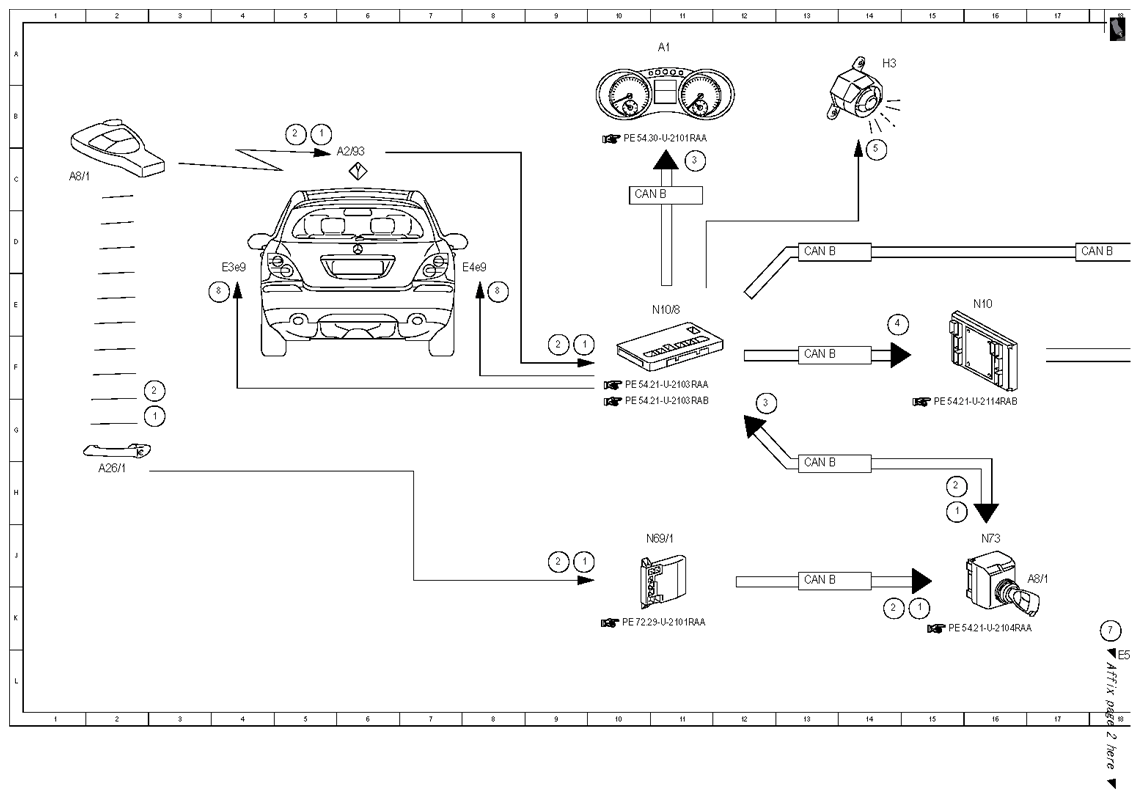

Access authorization code, signal |
3 G |
| 1 |
Access authorization code, signal |
5 B |
| 1 |
Access authorization code, signal |
9 J |
| 1 |
Access authorization code, signal |
9 F |
| 1 |
Access authorization code, signal |
15 K |
| 1 |
Access authorization code, signal |
15 H |
| 2 |
Panic alarm, signal |
3 G |
| 2 |
Panic alarm, signal |
5 B |
| 2 |
Panic alarm, signal |
9 J |
| 2 |
Panic alarm, signal |
9 F |
| 2 |
Panic alarm, signal |
14 K |
| 2 |
Panic alarm, signal |
15 H |
| 3 |
Panic alarm, status |
11 C |
| 3 |
Panic alarm, status |
12 G |
| 4 |
Flasher frequency, signal |
14 E |
| 5 |
Alarm siren, actuation |
14 C |
| 6 |
Interior lamp, request |
19 D |
| 7 |
Front fog lamp, actuation |
18 K |
| 7 |
Front fog lamp, actuation |
23 K |
| 8 |
Standing and parking lights, actuation |
4 E |
| 8 |
Standing and parking lights, actuation |
8 E |
| A1 |
Instrument cluster |
11 A |
| A2/93 |
Roof antenna module |
5 C |
| A26/1 |
Left front IR receiver |
2 H |
| A8/1 |
Transmitter key |
1 C |
| A8/1 |
Transmitter key |
17 K |
| CAN B |
Interior CAN |
10 C |
| CAN B |
Interior CAN |
13 F |
| CAN B |
Interior CAN |
13 K |
| CAN B |
Interior CAN |
13 H |
| CAN B |
Interior CAN |
13 D |
| CAN B |
Interior CAN |
17 D |
| E3e9 |
Left stop lamp, taillamp, parking lamp and side-marker lamp |
4 E |
| E4e9 |
Right stop lamp, taillamp, parking lamp and side-marker lamp |
7 E |
| E5/1 |
Left front fog lamp |
22 L |
| E5/2 |
Right fog lamp |
18 L |
| H3 |
Alarm signal horn |
14 A |
| N10 |
Front SAM control unit |
16 E |
| N10/8 |
Rear SAM control unit |
10 E |
| N69/1 |
Left front door control unit |
10 J |

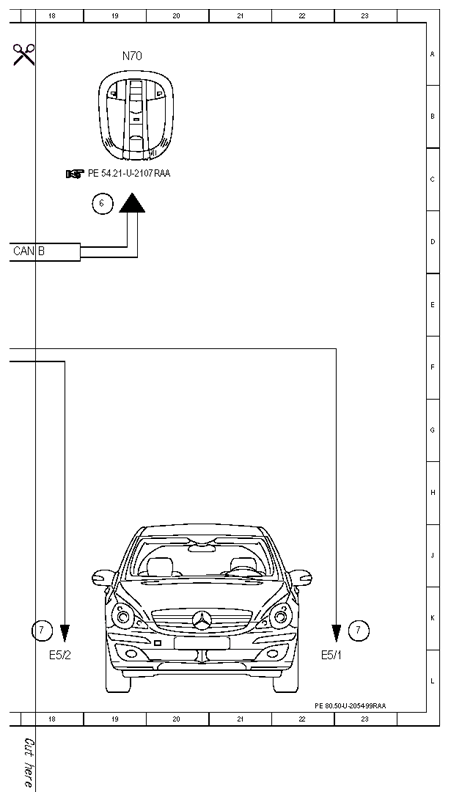

| N70 |
Overhead control panel control unit |
19 A |
| N73 |
EIS [EZS] control unit |
16 J |
