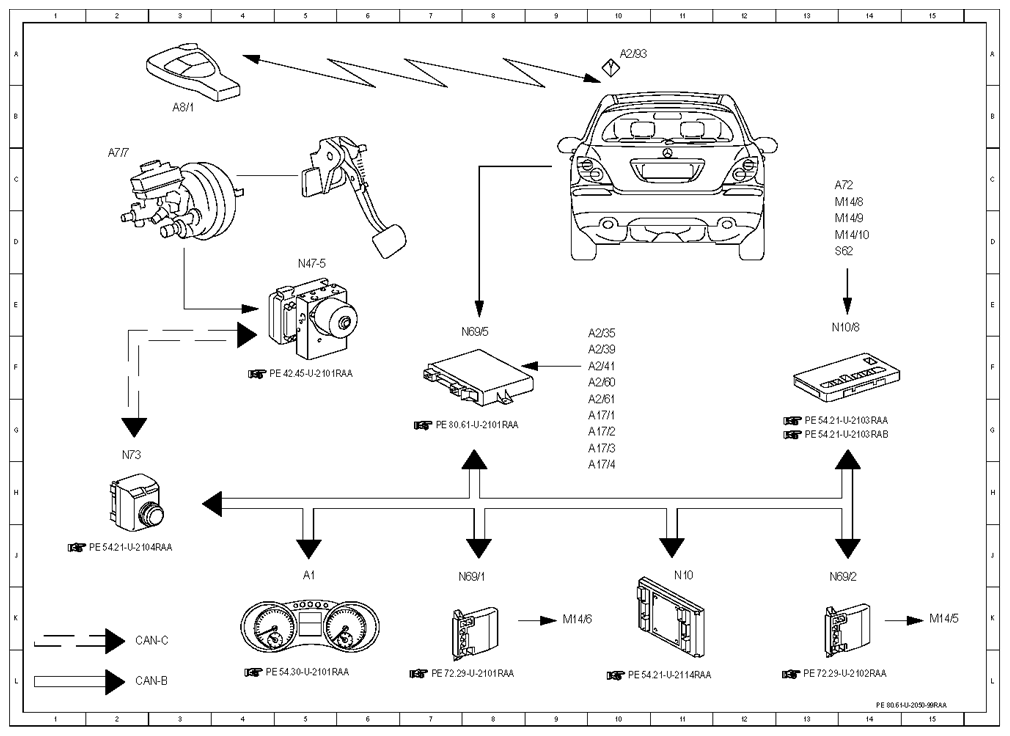

| A1 |
Instrument cluster |
5 J |
| A17/1 |
Left front KEYLESS GO door handle |
9 G |
| A17/2 |
Right front KEYLESS GO door handle |
9 G |
| A17/3 |
Left rear KEYLESS GO door handle |
9 G |
| A17/4 |
Right rear KEYLESS GO door handle |
9 H |
| A2/35 |
Trunk KEYLESS GO antenna |
9 F |
| A2/39 |
Left rear door KEYLESS-GO antenna |
9 F |
| A2/41 |
Right rear door KEYLESS-GO antenna |
9 F |
| A2/60 |
Cockpit KEYLESS-GO antenna |
9 F |
| A2/61 |
Interior KEYLESS GO antenna |
9 G |
| A2/93 |
Roof antenna module |
10 A |
| A7/7 |
BAS brake booster |
2 C |
| A72 |
Rear door locking unit |
13 C |
| A8/1 |
Transmitter key |
3 B |
| M14/10 |
Fuel filler flap CL [ZV] motor |
13 D |
| M14/5 |
Right front door CL [ZV] motor |
15 K |
| M14/6 |
Left front door CL [ZV] motor |
9 K |
| M14/8 |
Left rear door CL [ZV] motor |
13 D |
| M14/9 |
Right rear door CL [ZV] motor |
13 D |
| N10 |
Front SAM control unit |
11 J |
| N10/8 |
Rear SAM control unit |
13 F |
| N47-5 |
ESP control unit |
5 E |
| N69/1 |
Left front door control unit |
7 J |
| N69/2 |
Right front door control unit |
13 J |
| N69/5 |
KEYLESS-GO control unit |
7 F |
| N73 |
EIS [EZS] control unit |
2 H |
| S62 |
ATA [EDW] hood switch |
13 D |
