Wiring diagram emergency call system control module - PE82.95-U-2101-99RAA

Code Designation Position
A2/5 GPS antenna splitter 73 L
A2/50 TELE AID backup antenna 71 L
A2/93 Roof antenna module 70 L
A2/93a3 Telephone antenna 69 L
A2/93a4 TELE AID antenna 69 L
A2/93a6 GPS antenna 70 L
A40/3 COMAND operating, display and control unit 61 L
A67b1 Hands-free system microphone group 35 L
A67b1x1 Hands-free system microphone group connector 34 J
F4 Load compartment fuse and relay box 4 L
F4f36 Fuse 36 2 L
F4f60 Fuse 60 3 L
H4/27 Center cockpit speaker (centerfill) 29 L
N10 Front SAM control unit 22 L
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control unit 54 L
N123/4 Emergency call system control unit 4 A
N123/4 Emergency call system control unit 12 A
N123/4 Emergency call system control unit 20 A
N123/4 Emergency call system control unit 28 A
N123/4 Emergency call system control unit 36 A
N123/4 Emergency call system control unit 44 A
N123/4 Emergency call system control unit 52 A
N123/4 Emergency call system control unit 60 A
N123/4 Emergency call system control unit 69 A
N2/7 Restraint systems control unit 32 L
N40/3 Amplifier for sound system 66 L
N93 Central gateway control unit 9 L
S93/3 SOS pushbutton switch 25 L
S93/6 MB-Info and telediagnosis button group 15 L
S93/6s1 MB-Info button 17 L
S93/6s2 Telediagnosis button 15 L
S93/6x1 MB-Info and telediagnosis button group connector 14 J
U500 Not valid for Sound System 60 G
U801 Valid for UHI (Universal Portable CTEL Interface) 47 E
U808 Not valid for UPCI [UHI] (Universal Portable CTEL Interface) 34 C
U90 Valid for Sound System 64 G
W17/1 Ground (left rear seat) 11 H
W17/1 Ground (left rear seat) 27 H
X18 Interior/cockpit connector 29 E
X18/2 Interior/roof connector 24 E
X18/2 Interior/roof connector 34 E
X29/6 Center console intermediate connector 14 F
X29/6 Center console intermediate connector 14 E
X38/1 Centerfill speaker intermediate connector 29 H
X39/70 FFS [RBA} microphone array connector 38 G
X39/70 FFS [RBA} microphone array connector 47 K
Z204 Wake-up signal/circuit 58d voltage distributor connector 19 L
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 12 L
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 27 L
Z51/6 Circuit 58d interior connector sleeve 19 L

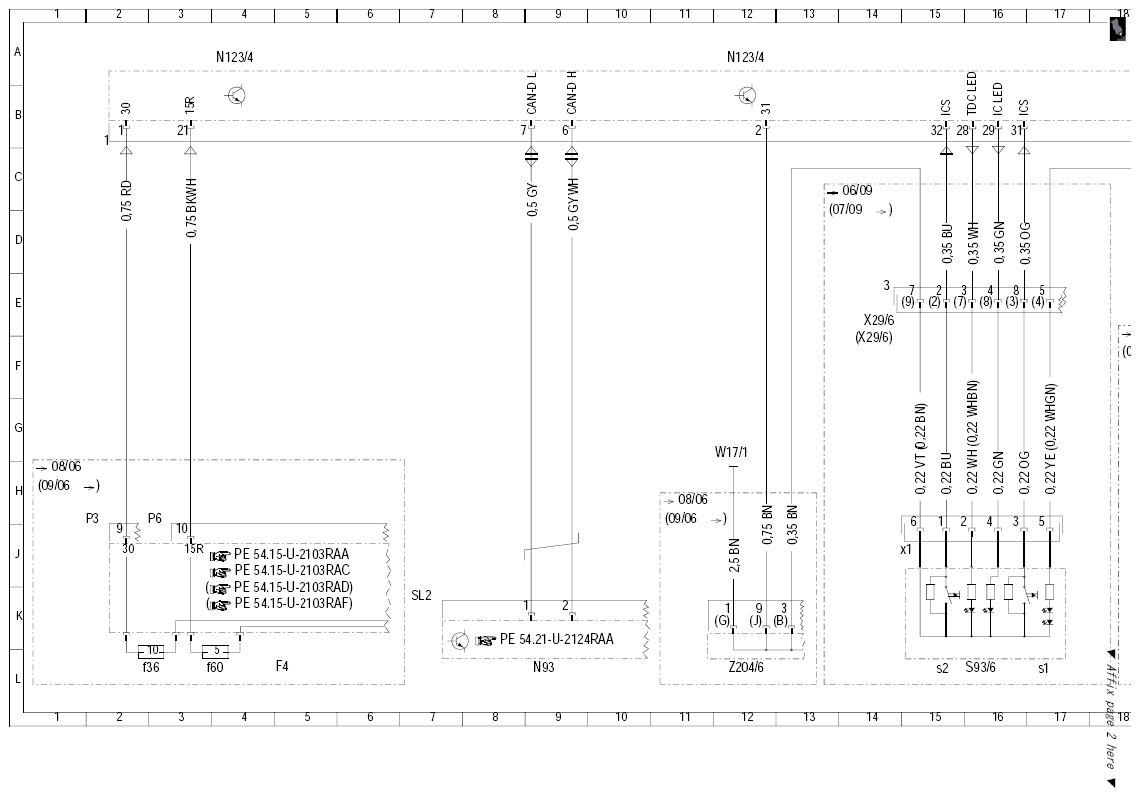

Fig 1: Emergency Call System Control Module - Wiring Diagram (1 Of 5)
G10122771Courtesy of MERCEDES-BENZ USA

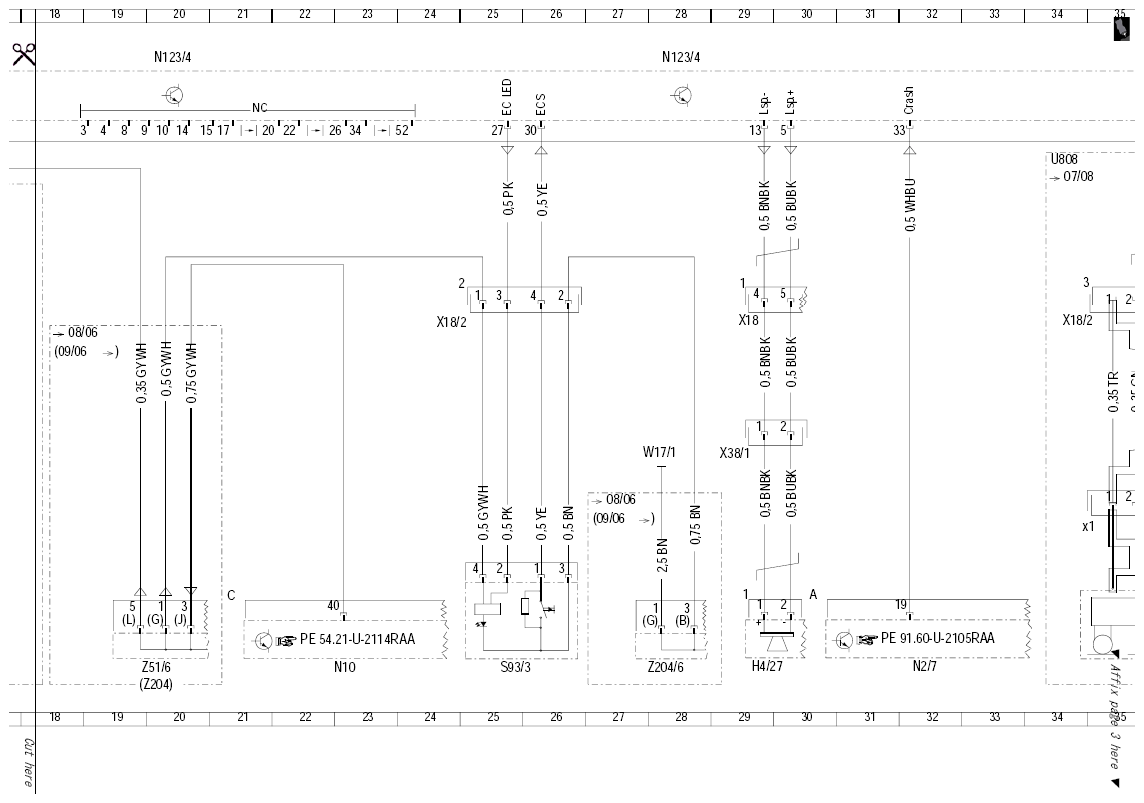

Fig 2: Emergency Call System Control Module - Wiring Diagram (2 Of 5)
G10122772Courtesy of MERCEDES-BENZ USA

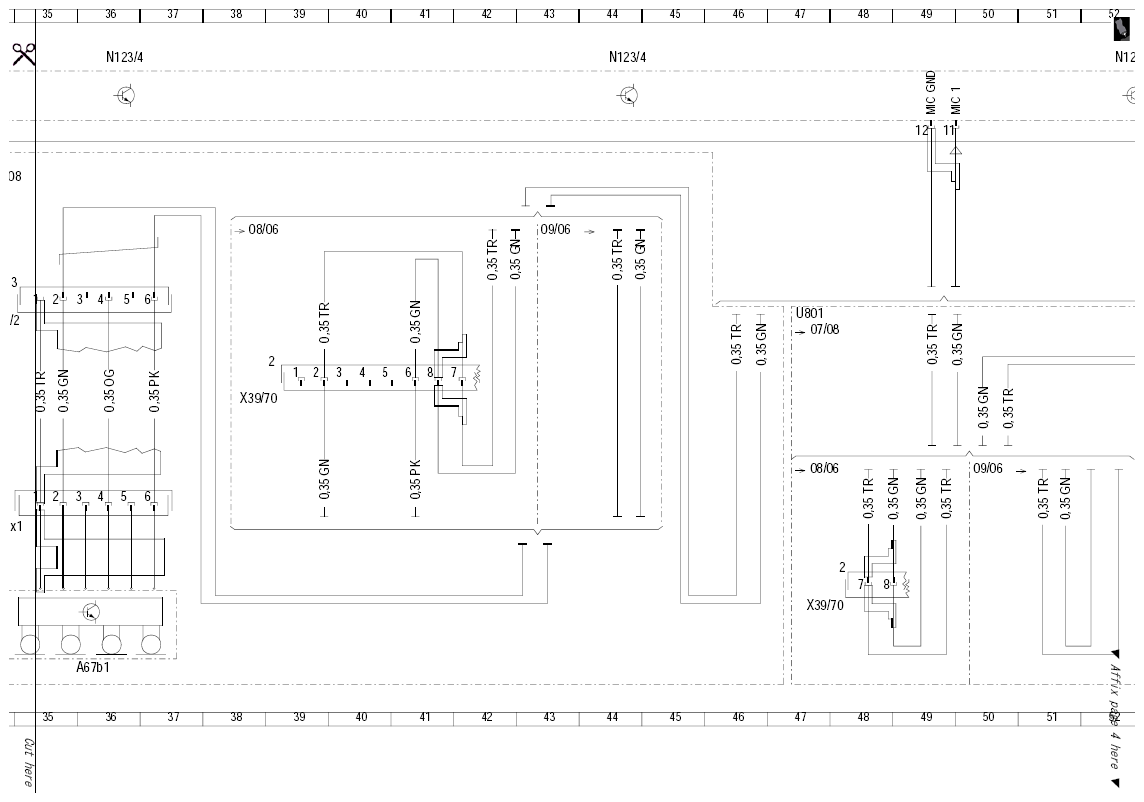

Fig 3: Emergency Call System Control Module - Wiring Diagram (3 Of 5)
G10122773Courtesy of MERCEDES-BENZ USA

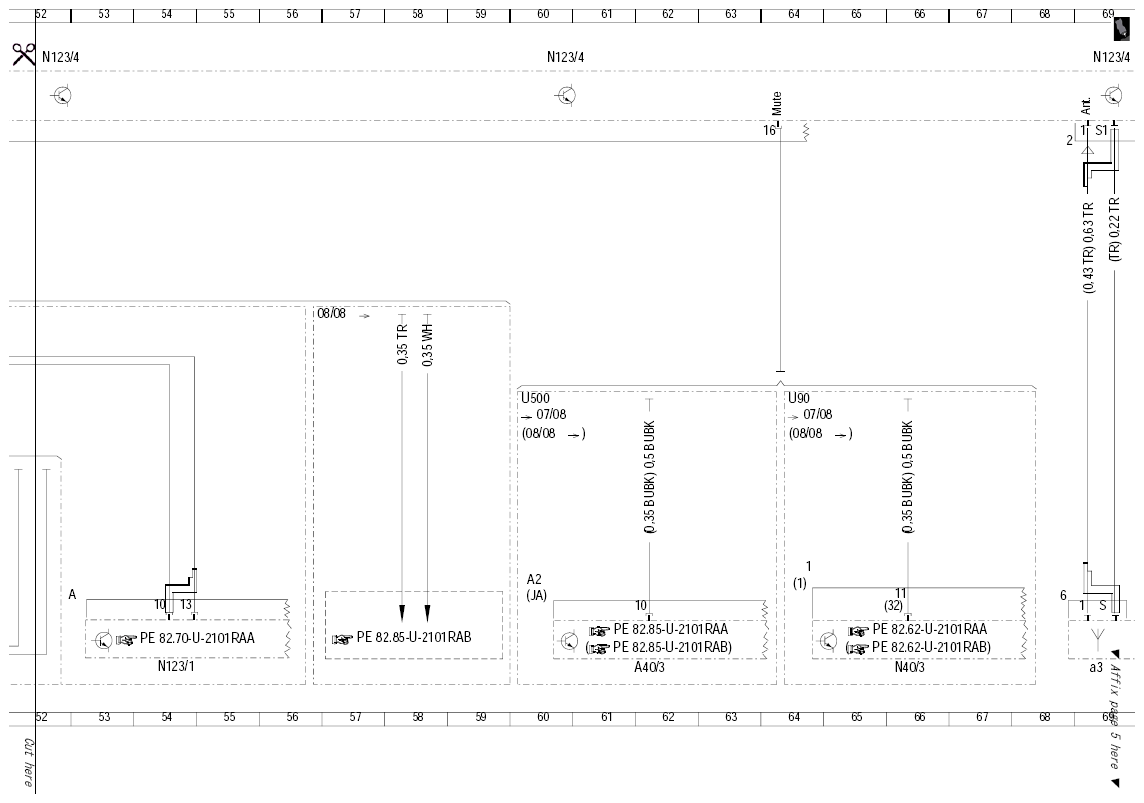

Fig 4: Emergency Call System Control Module - Wiring Diagram (4 Of 5)
G10122774Courtesy of MERCEDES-BENZ USA

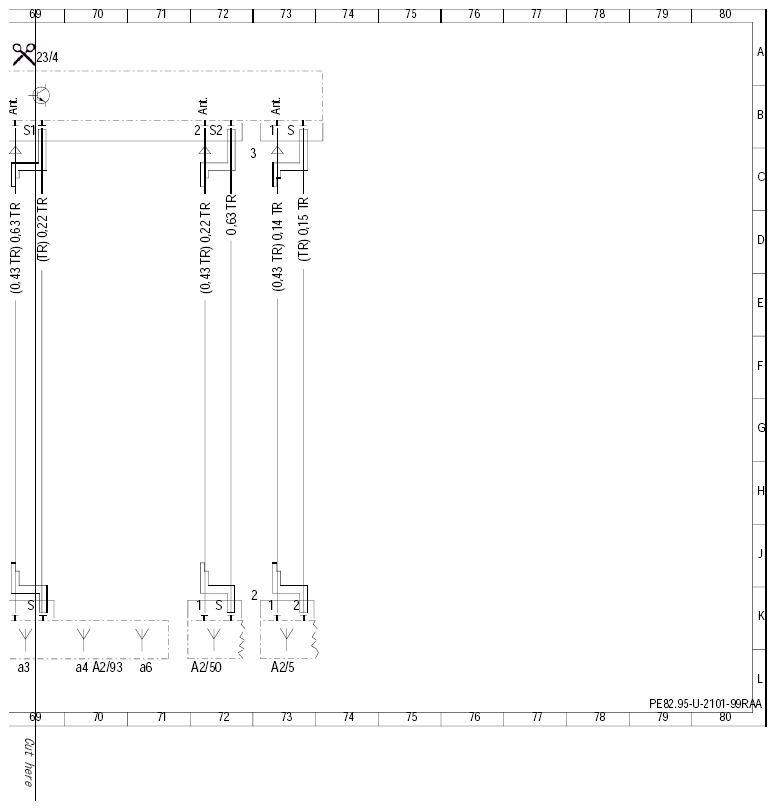

Fig 5: Emergency Call System Control Module - Wiring Diagram (5 Of 5)
G10122775Courtesy of MERCEDES-BENZ USA
