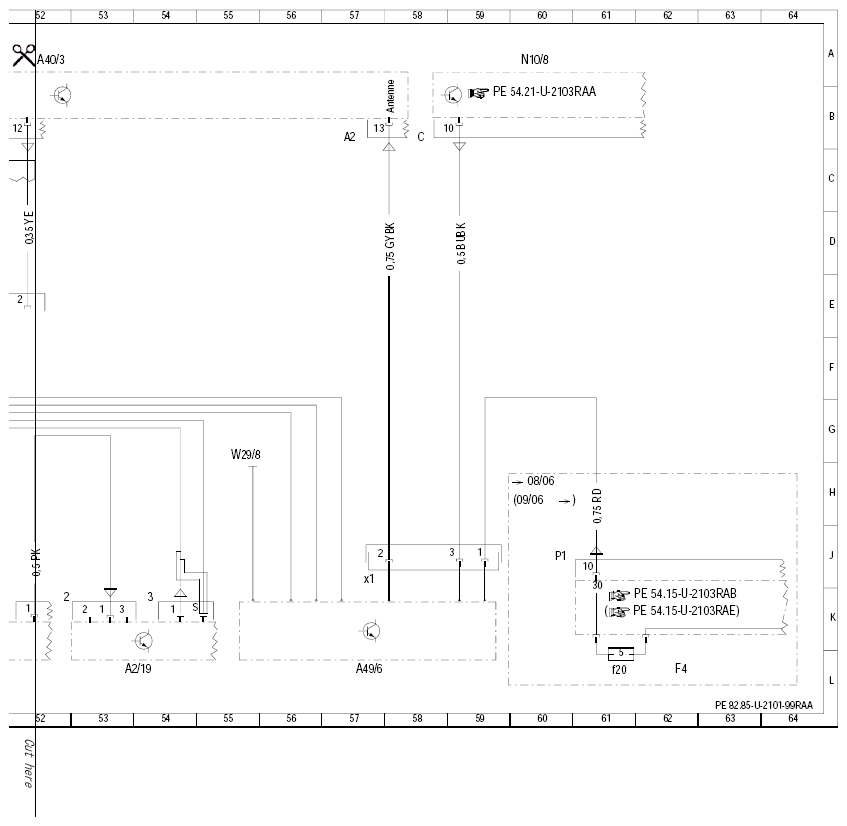

| A2/19 |
FM rear window antenna amplifier |
53 L |

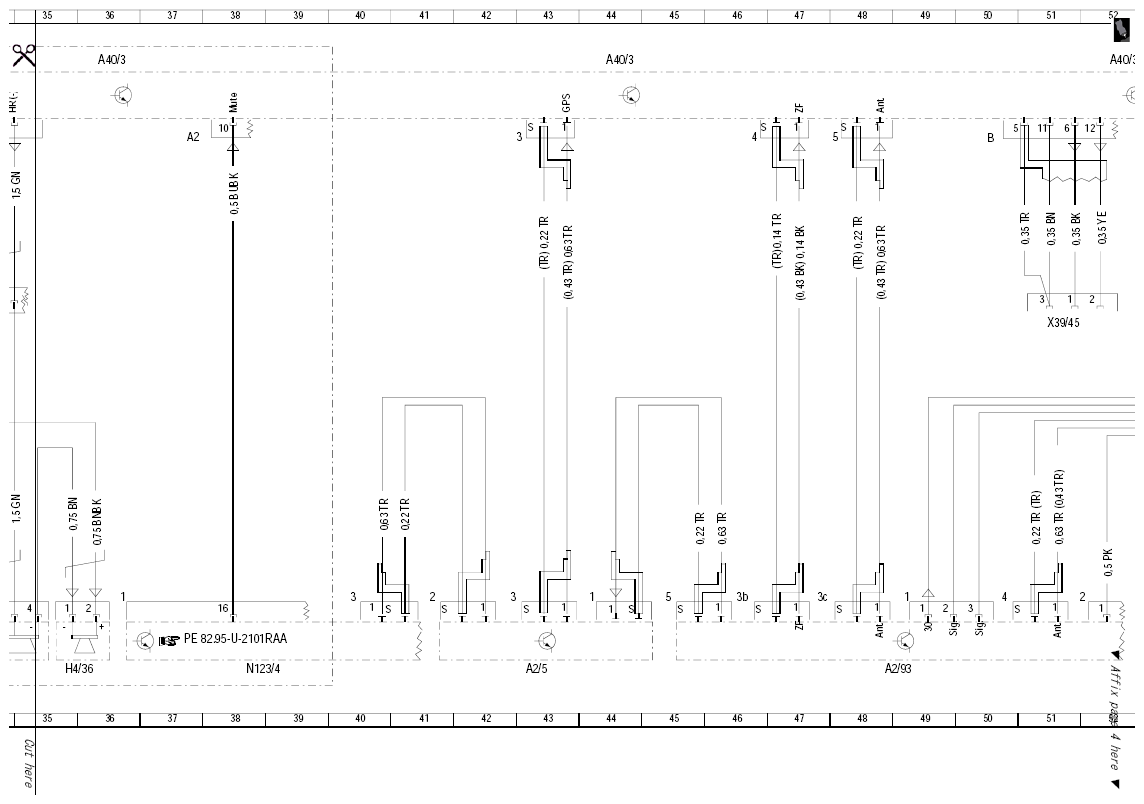

| A2/5 |
GPS antenna splitter |
43 L |
| A2/93 |
Roof antenna module |
48 L |
| A40/3 |
COMAND operating, display and control unit |
4 A |
| A40/3 |
COMAND operating, display and control unit |
12 A |
| A40/3 |
COMAND operating, display and control unit |
20 A |
| A40/3 |
COMAND operating, display and control unit |
28 A |
| A40/3 |
COMAND operating, display and control unit |
36 A |
| A40/3 |
COMAND operating, display and control unit |
44 A |
| A40/3 |
COMAND operating, display and control unit |
52 A |
| A40/4 |
DVD player |
19 L |
| A49/6 |
Radio antenna interference filter |
57 L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
57 K |

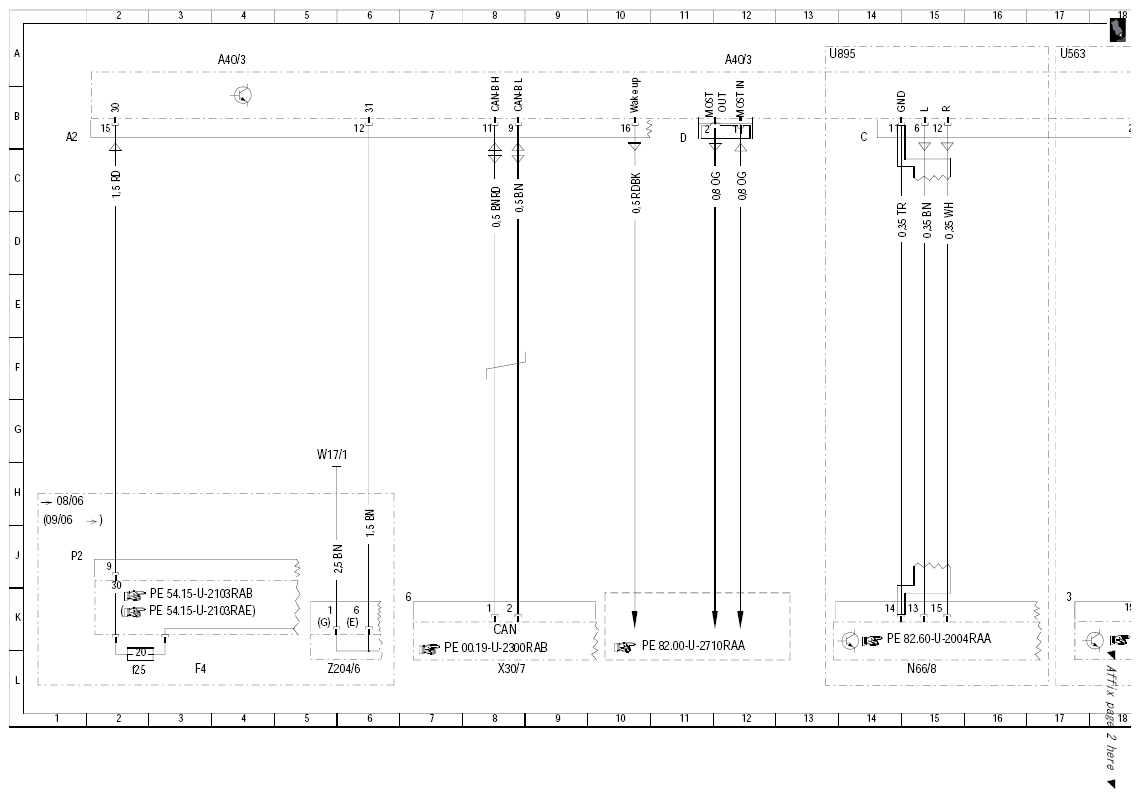

| F4 |
Load compartment fuse and relay box |
3 L |
| F4 |
Load compartment fuse and relay box |
62 L |
| F4f20 |
Fuse 20 |
61 L |
| F4f25 |
Fuse 25 |
2 L |

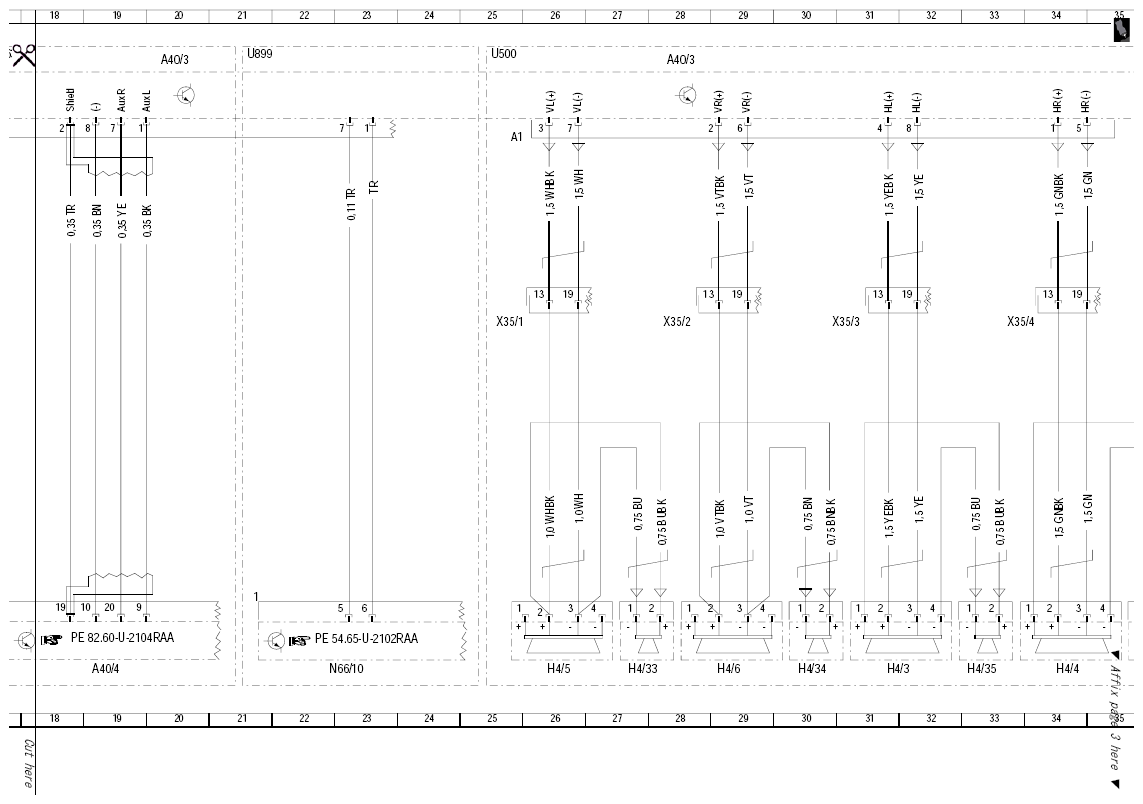

| H4/3 |
Left rear door speaker |
31 L |
| H4/33 |
Left front door tweeter |
27 L |
| H4/34 |
Right front door tweeter |
30 L |
| H4/35 |
Left rear door tweeter |
33 L |
| H4/36 |
Right rear door tweeter |
35 L |
| H4/4 |
Right rear door speaker |
34 L |
| H4/5 |
Left front door speaker |
26 L |
| H4/6 |
Right front door speaker |
29 L |
| N10/8 |
Rear SAM control unit |
60 A |
| N123/4 |
Emergency call system control unit |
38 L |
| N66/10 |
Backup camera voltage supply module |
22 L |
| N66/8 |
Rear audio control unit |
15 L |
| U500 |
Not valid for Sound System |
25 A |
| U563 |
Valid for rear entertainment (DVD) |
17 A |
| U895 |
Valid for rear audio |
13 A |
| U899 |
Valid for backup camera |
21 A |
| W17/1 |
Ground (left rear seat) |
5 H |
| W29/8 |
Ground (left D-pillar) |
55 H |
| X30/7 |
Voltage distributor (CAN) connector |
8 L |
| X35/1 |
Left front door separation point |
25 E |
| X35/2 |
Right front door separation point |
28 E |
| X35/3 |
Left rear door separation point |
30 E |
| X35/4 |
Right rear door separation point |
33 E |
| X39/45 |
Walkman separation point |
51 E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
5 L |
