| 1 |
Circuit 15, status |
7 H |
| 1 |
Circuit 15, status |
9 E |
| 1 |
Circuit 15, status |
9 H |
| 2 |
Telematics CAN active, signal |
7 H |
| 2 |
Telematics CAN active, signal |
10 H |
| 3 |
Analog picture signal, signal |
6 G |
| 3 |
Analog picture signal, signal |
11 G |
| 4 |
Analog audio signal, signal |
6 F |
| 4 |
Analog audio signal, signal |
11 F |
| 5 |
Infrared, signal |
4 G |
| 5 |
Infrared, signal |
12 G |
| 6 |
Switch on/off, signal |
9 G |

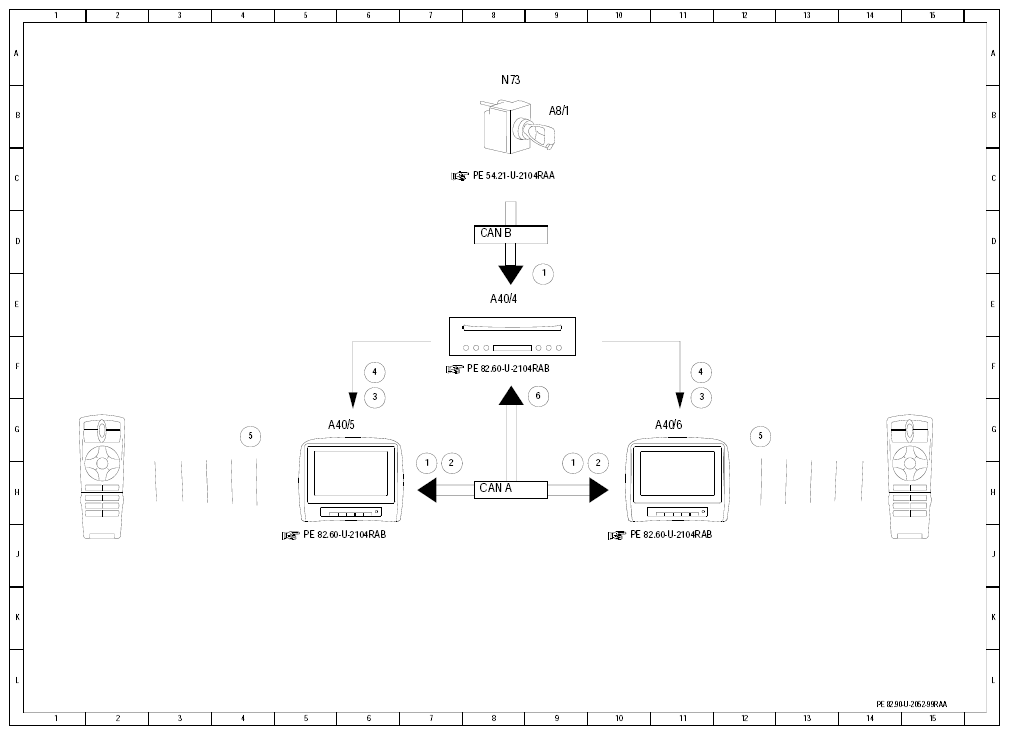

| A40/4 |
DVD player |
8 E |
| A40/5 |
Left rear display |
5 G |
| A40/6 |
Right rear display |
11 G |
| A8/1 |
Transmitter key |
9 B |
| CAN A |
Telematics CAN |
8 H |
| CAN B |
Interior CAN |
8 D |
| N73 |
EIS [EZS] control unit |
8 B |
