Cockpit Management and Data System (COMAND) control unit wiring diagram - PE82.85-P-2101-97RAF

Code Designation Position
A0 Color code key 80L
A2/91 Bluetooth antenna 54L
A2/93 Roof antenna module 67L
A40/3 COMAND operating, display and control unit 4A
A40/3 COMAND operating, display and control unit 13A
A40/3 COMAND operating, display and control unit 20A
A40/3 COMAND operating, display and control unit 28A
A40/3 COMAND operating, display and control unit 35A
A40/3 COMAND operating, display and control unit 45A
A40/3 COMAND operating, display and control unit 52A
A40/3 COMAND operating, display and control unit 60A
A40/3f1 COMAND electrical fuse 2B
A49/6 Radio antenna interference filter 71L
A49/6x1 Radio antenna interference suppression filter electrical connector 71J
A67b1 Hands-free system microphone group 26L
A67b1x1 Hands-free system microphone group connector 25J
A90/3 TV digital tuner 61L
CAN B Interior CAN 7K
F3 Cockpit fuse box 77L
F3f15 Fuse 15 76L
F4 Load compartment fuse and relay box 3L
F4 Load compartment fuse and relay box 50L
F4 Load compartment fuse and relay box 73L
F4f20 Fuse 20 74L
F4f25 Fuse 25 2L
F4f60 Fuse 60 51L
H4/3 Left rear door speaker 18L
H4/33 Left front door tweeter 14L
H4/34 Right front door tweeter 17L
H4/35 Left rear door tweeter 20L
H4/36 Right rear door tweeter 23L
H4/4 Right rear door speaker 21L
H4/5 Left front door speaker 13L
H4/6 Right front door speaker 16L
MOST Media Oriented System Transport 10C
N10/8 Rear SAM control unit 72A
N125/1 Media interface control unit 76A
N66/2 Backup camera control unit 33L
U12 Valid for left-hand drive vehicles 24E
U13 Valid for right-hand drive vehicles 24E
U170 Valid for media interface 63A
U170 Valid for media interface 75A
U500 Not valid for Sound System 12A
U563 Valid for rear entertainment (DVD) 55A
U644 Valid for walkman connection 36A
U661 Valid for TV and video in rear 59A
U895 Valid for rear audio 28E
U899 Valid for backup camera 32A
U933 Not valid for telephone 29G
W17 Ground (right rear seat) 53L
W17/1 Ground (left rear seat) 5G
W29/2 Ground (right A-pillar) 76E
W29/8 Ground (left D-pillar) 71G
X137/1 VICS+ETC voltage supply separation point 48L
X137/1 VICS+ETC voltage supply separation point 52L
X137/1 VICS+ETC voltage supply separation point 51H
X18/2 Interior/roof connector 25F
X18/67 Media interface connector 1 63H
X18/69 Media interface connector 2 64L
X30/7 Voltage distributor (CAN) connector 7L
X35/1 Left front door separation point 12F
X35/2 Right front door separation point 15F
X35/3 Left rear door separation point 18F
X35/4 Right rear door separation point 21F
X39/37 CTEL separation point 41L
X39/37 CTEL separation point 44L
X39/37 CTEL separation point 68A
X39/45 Walkman separation point 37L
Z20/1 Cable end insulation not stripped, placed inside insulated tubing 39D
Z20/2 Cable end insulation not stripped, placed inside insulated tubing 36K
Z204/6 Circuit 31 left rear seat voltage distributor connector (1) 5L
Z204/8 Circuit 31 left rear seat voltage distributor connector (2) 52E

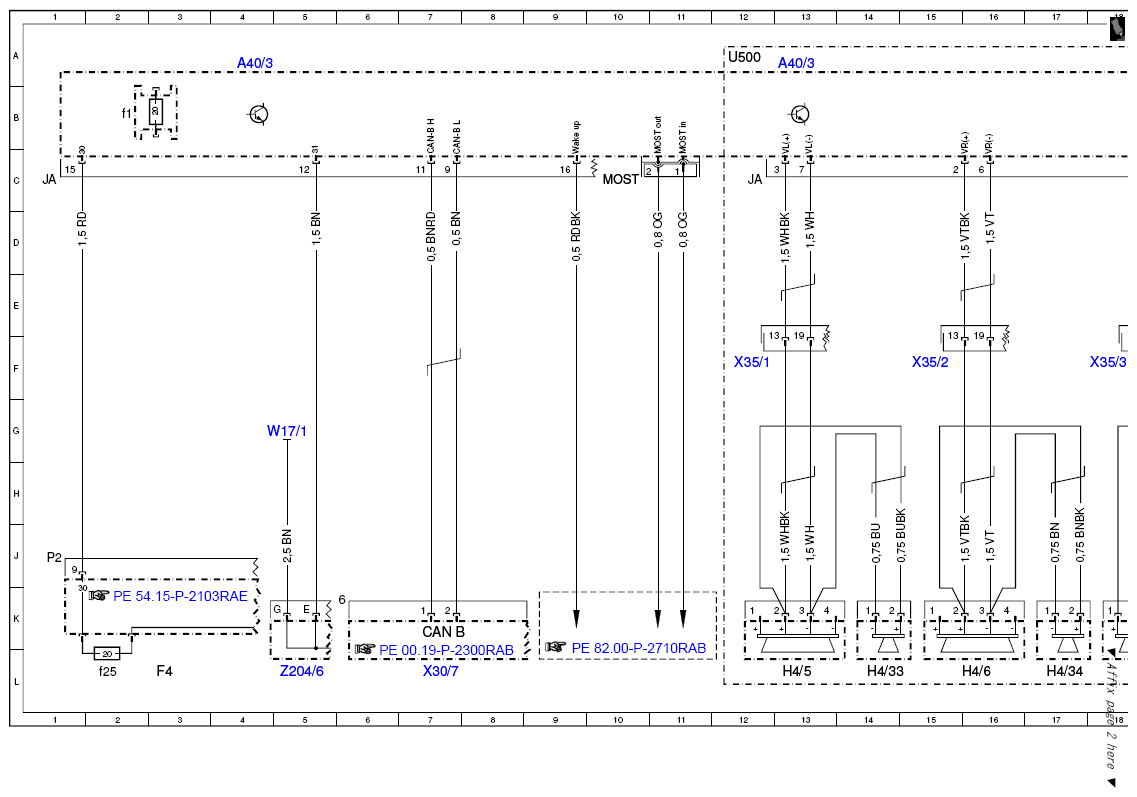

Fig 1: Cockpit Management And Data System (COMAND) Control Unit - Wiring Diagram (1 Of 5)
G10122705Courtesy of MERCEDES-BENZ USA

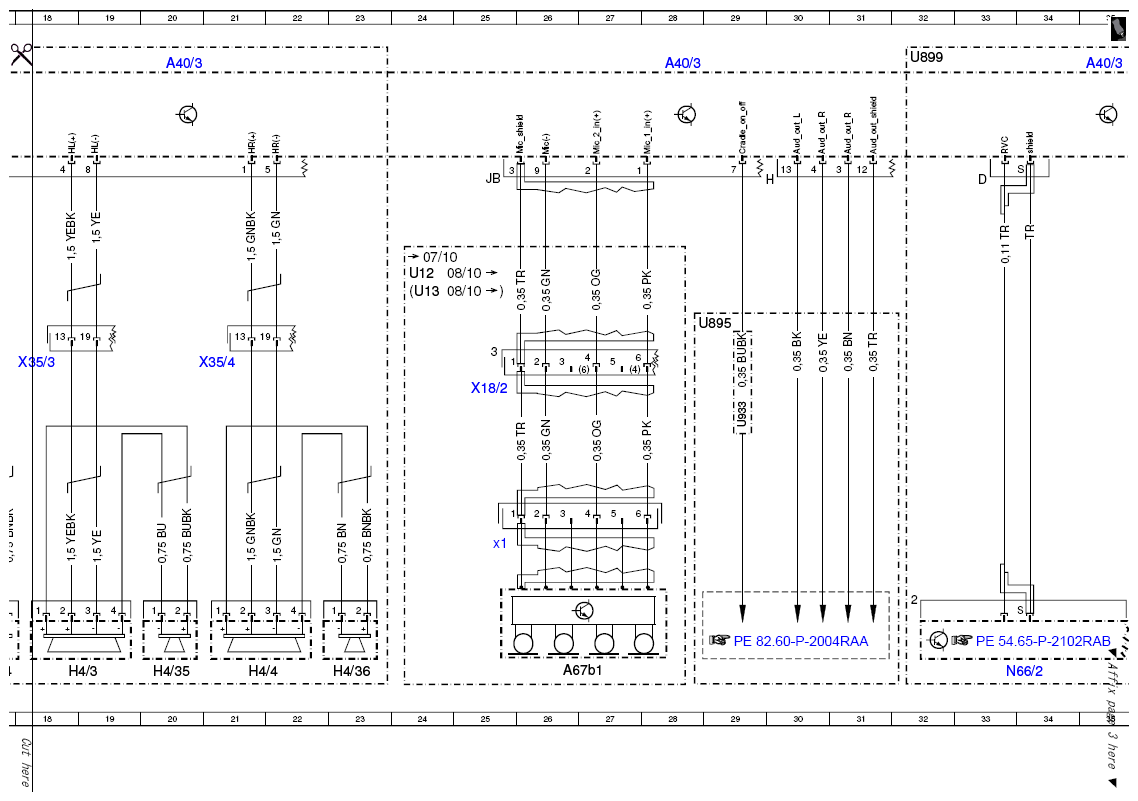

Fig 2: Cockpit Management And Data System (COMAND) Control Unit - Wiring Diagram (2 Of 5)
G10122706Courtesy of MERCEDES-BENZ USA

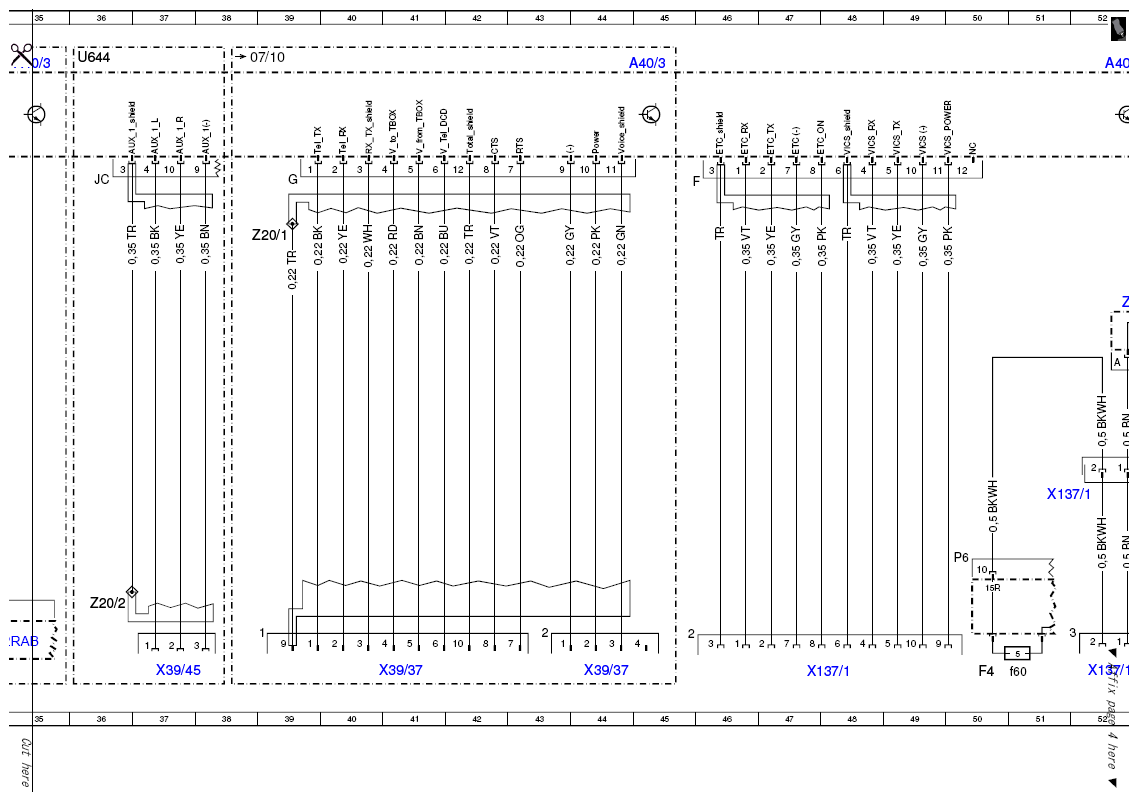

Fig 3: Cockpit Management And Data System (COMAND) Control Unit - Wiring Diagram (3 Of 5)
G10122707Courtesy of MERCEDES-BENZ USA

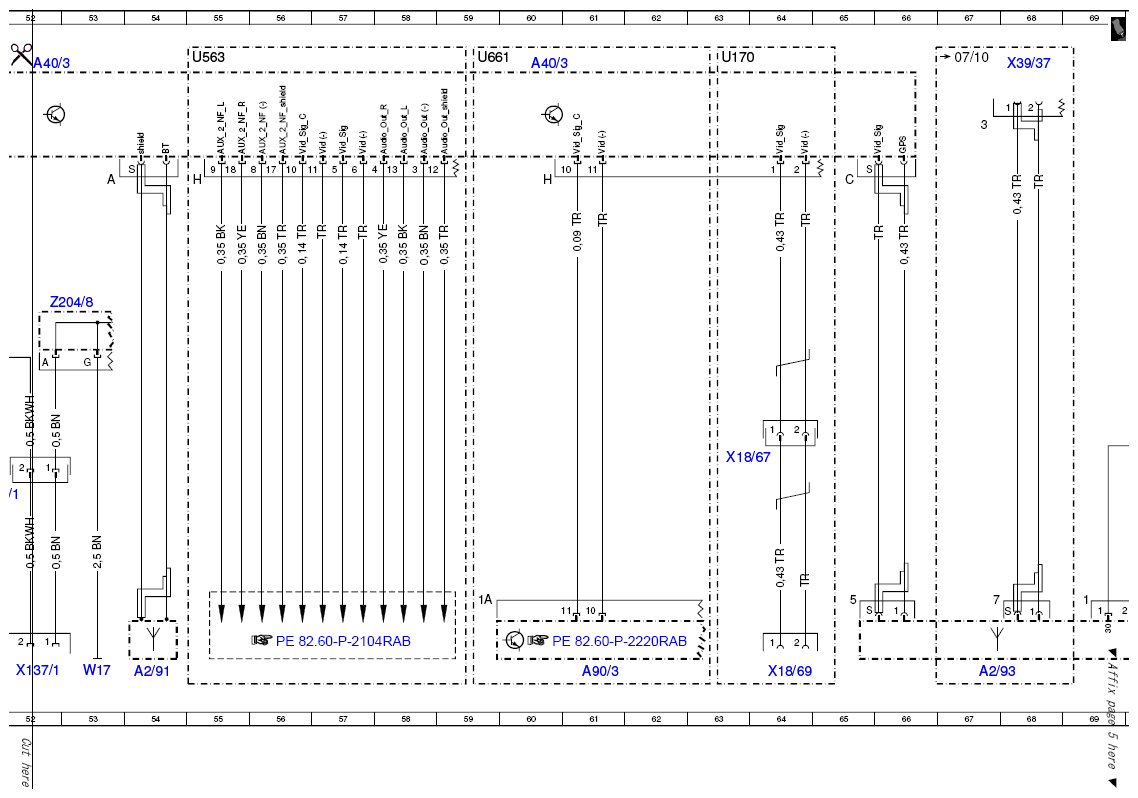

Fig 4: Cockpit Management And Data System (COMAND) Control Unit - Wiring Diagram (4 Of 5)
G10122708Courtesy of MERCEDES-BENZ USA

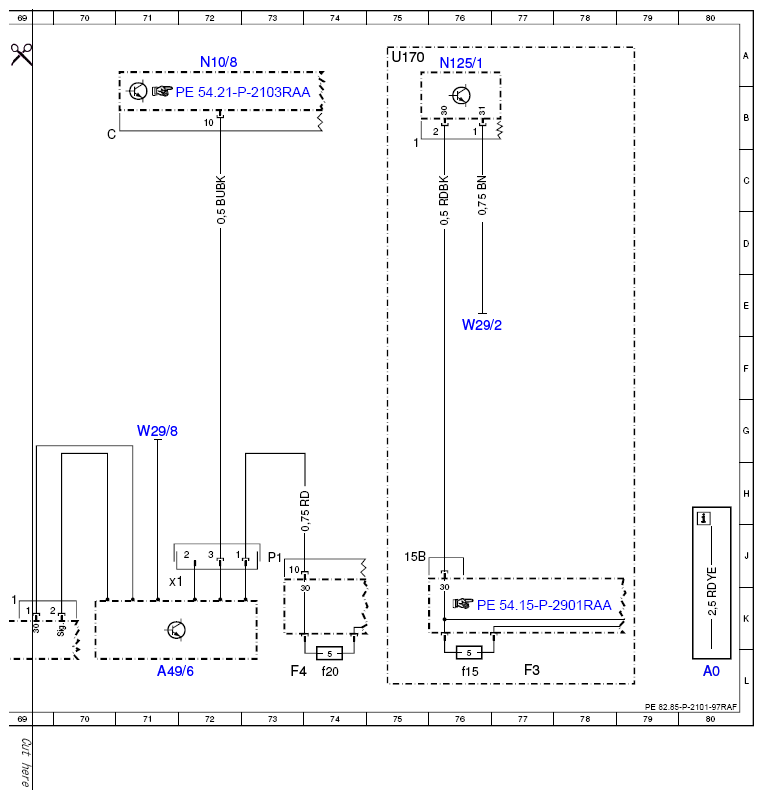

Fig 5: Cockpit Management And Data System (COMAND) Control Unit - Wiring Diagram (5 Of 5)
G10122709Courtesy of MERCEDES-BENZ USA
