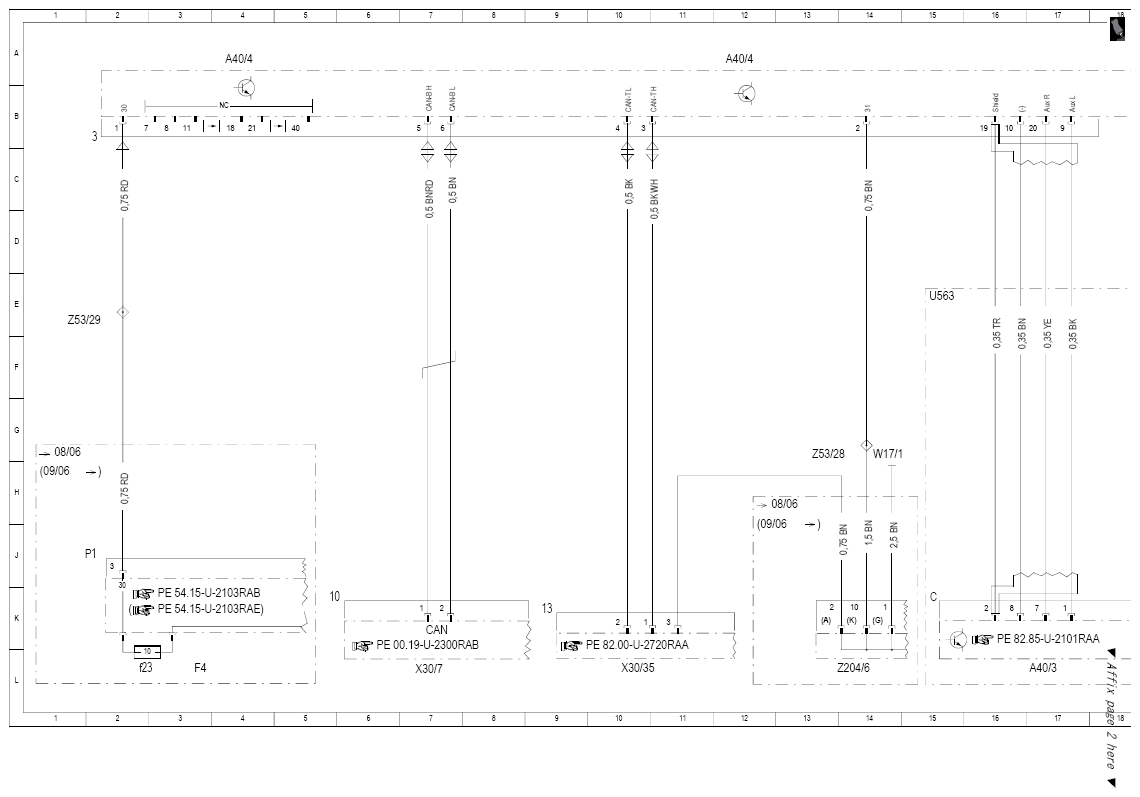

| A40/3 |
COMAND operating, display and control unit |
17 L |
| A40/4 |

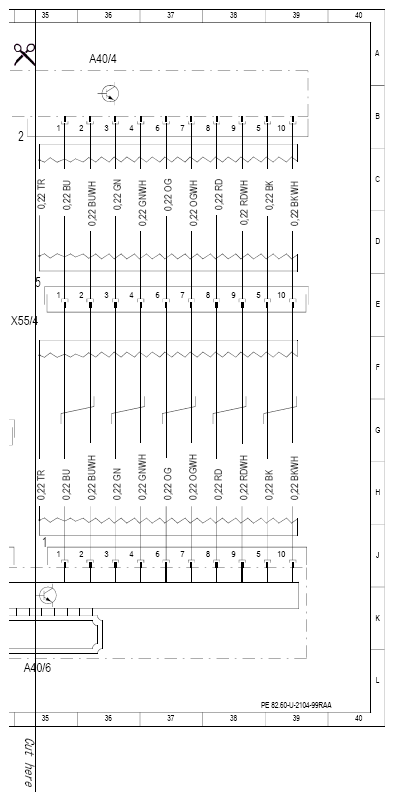

DVD player |
4 A |
| A40/4 |
DVD player |
12 A |
| A40/4 |
DVD player |
20 A |
| A40/4 |
DVD player |
28 A |
| A40/4 |
DVD player |
36 A |

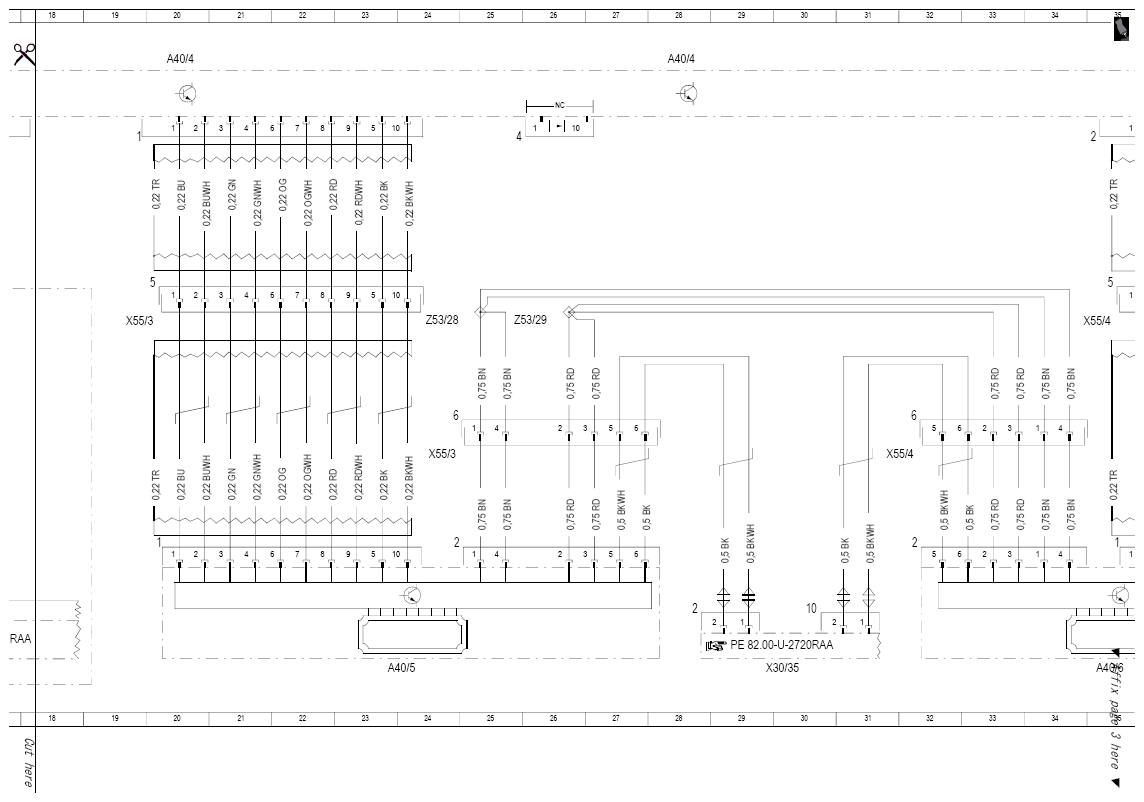

| A40/5 |
Left rear display |
23 L |
| A40/6 |
Right rear display |
35 L |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f23 |
Fuse 23 |
2 L |
| U563 |
Valid for rear entertainment (DVD) |
15 E |
| W17/1 |
Ground (left rear seat) |
14 H |
| X30/35 |
Telematics CAN voltage distributor connector |
10 L |
| X30/35 |
Telematics CAN voltage distributor connector |
29 L |
| X30/7 |
Voltage distributor (CAN) connector |
7 L |
| X55/3 |
Left front seat contacting strip |
19 E |
| X55/3 |
Left front seat contacting strip |
24 H |
| X55/4 |
Right front seat contacting strip |
31 H |
| X55/4 |
Right front seat contacting strip |
34 E |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
13 L |
| Z53/28 |
Telematics circuit 31 interior solder point 2 |
13 H |
| Z53/28 |
Telematics circuit 31 interior solder point 2 |
24 E |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
1 E |
| Z53/29 |
Rear seat entertainment circuit 30 solder connector |
25 E |
